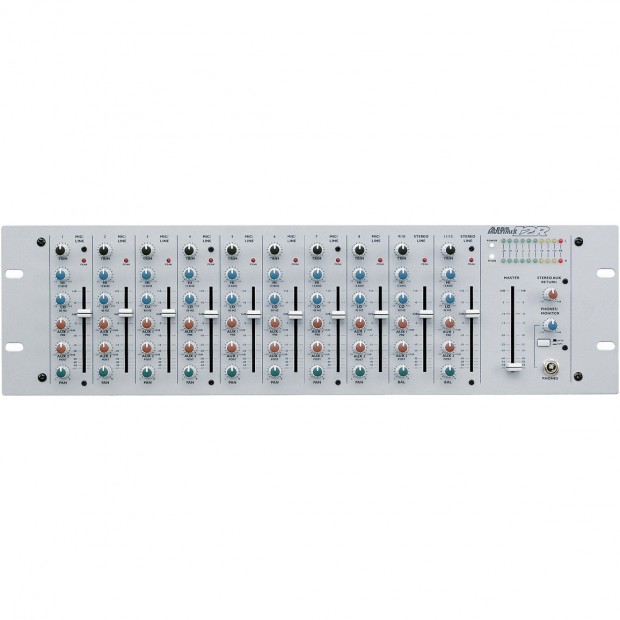

Alesis MultiMix 12R 12-Channel Rackmount Mixer (Discontinued)

Description

Details

Alesis MultiMix 12R Twelve-Channel Rackmount Mixer

The Alesis MultiMix 12R rackmount mixer combines studio-quality components and effects processing with rock-solid construction for the ultimate in compact mixers — all at prices wandering musicians will love. The MultiMix FX mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and choice of configurations. For those who don’t need effects, but want 12 channels of transparent Alesis sound packed into a three-space rack, we offer the MultiMix 12R.

Features

Features

Ultra-affordable 12-channel mixer in a 3U rack
8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
Separate 1/4" balanced main and monitor outs, front-panel headphone out
Pan control, peak indicator, and 60mm fader on each channel
2-band high/ low shelving EQ per channel
10-segment LED stereo meters

Specification

Front-Panel	8 mic/line channels and 2 stereo channels with trim
Equalizers	2-band EQ (high shelving at 12kHz, low shelving at 80Hz)
Aux-Send	2 (post-fader)
Connections	All 1/4" TRS
Audio
Frequency Response	20Hz–50kHz ±0.5dB
Dynamic Range	108dB. Distortion: <0.005% THD+N (mic/line to L/R master out)
Maximum Gain	70dB (mic in to L/R master out). Headroom: 24dB
Power	120V AC internal transformer
Dimensions (H x W x D)	5.25" (134 mm) x 19" (483 mm) x 4.25" (108mm)
Weight	8 lbs (3.6 kg)
