Anchor Audio CM-6W CouncilMAN Conference Microphone System 6 User Package with Wireless Microphone
Part # CM-6W
Model # CM-6W

The Anchor Audio CouncilMAN CM-6W conference sound system package wireless ability is the easiest, portable conference system there is. Anchor Audio’s portable conference system travels from the council chambers to community center with ease of setup and simplicity of use. The CouncilMAN™ is flexible to the demands of most room sizes and manages up to ten microphones. With a wireless microphone, the panel can take questions from the audience.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

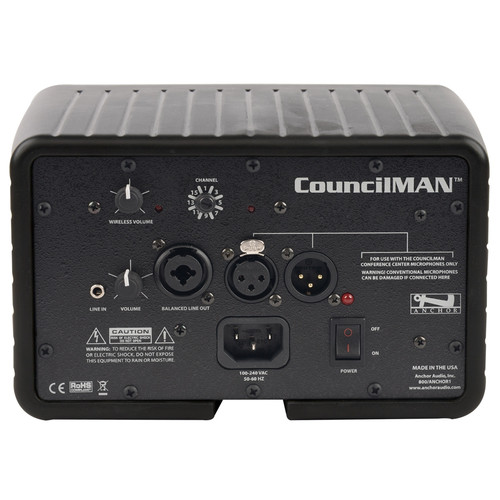

This Anchor Audio CouncilMAN conference sound system package comes with a wireless mic and is for 6 users and is the easiest, portable conference system there is. It includes five Delegate Mics, and one Chairman Mic that can mute all of the Delegates if needed. It also includes one AN-100CMF1+ speaker amplifier that powers up to ten conference mics, has a built-in 16 channel wireless receiver, and comes with a wireless handheld mic. The package also has five 4 ft. XLR cables, one 25 ft. XLR cable, and it comes in a sturdy cardboard carrying case.

Six conference mics daisy chain with standard XLR cables, the chairman mic can mute all delegate mics, no installation required. Immunity from mobile telephone interference.

Features

Features

  • The AN-100CMF1+ powers up to sixteen microphones and a wireless mic
  • Reaches crowds of 150+
  • Conference microphones daisy chain with standard XLR cables
  • Cardioid microphones have excellent "pick-up"
  • Each microphone has adjustable volume control
  • 16 channel UHF wireless mic option for audience Q&A
  • Chairman microphone can mute all delegate microphones
  • Immunity from mobile telephone interference
  • 1/4" & XLR balanced line output for recording, connection to house audio system or Assistive Listening System
  • 3.5 mm Line In for music player device
Specification
CHM-100/ DEL-100 Microphone Base
Power Requirement+22 VDC @ 60 mA from pin 2 of daisy chain
Output Impedence> 10 k Ohm
Phantom Power18V
Daisy Chain In/OutMale and Female 3-pin XLR
CHM-100 ControlsPush to Talk, Volume and Mute Others
DEL-100 ControlsPush to Talk and Volume
Dimensions (H x W x D)1.75" (4.45 cm) x 5.8" (14.73 cm) x 6.5" (16.51 cm)
Weight0.90 lbs (0.41 kg)
LM-618 Gooseneck Microphone
Pickup PatternCardioid
TypeElectret Condenser
Phantom Power9 - 52 Volts DC
Impedence600 Ohm (balanced)
Response50 Hz - 18 kHz ±3dB
Sensitivity-56 dB @ 1 kHz open circuit (0 dB = 1 V/ubar)
Dimensions (L x Dia)24" (60.96 cm) x 0.5" (1.27 cm)
Documents
System Includes

System Includes

  • (1) CHM-100 Chairman Microphone
  • (5) DEL-100 Delegate Microphones
  • (1) AN-100CMF1+ Speaker Amplifier with Wireless Receiver
  • (1) WH-8000 Wireless Handheld Microphone
  • (5) EX-4M 4 ft. XLR Cables
  • (1) EX-25M 25 ft. XLR Cable
  • Sturdy Cardboard Carrying Case
