Anchor Audio LIB-BPDUAL Liberty Platinum Dual Basic PA Package with 2 Handheld Microphones

Home /
Anchor Audio LIB-BPDUAL Liberty Platinum Dual Basic PA Package with 2 Handheld Microphones (Discontinued)

Description

Details

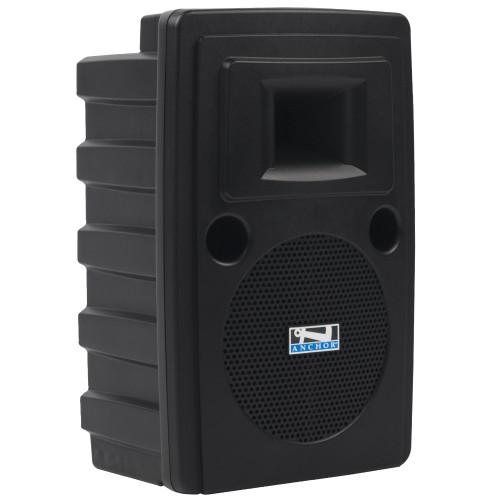

The Liberty Platinum is the most popular Anchor Audio portable sound system and the product that defines the industry. This portable sound system is designed with intelligibility, reliability, and simplicity in mind. This PA full-featured system is ready to perform, providing clear voice amplification for any application. Use the Liberty indoors or outdoors for school functions, lecture halls, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

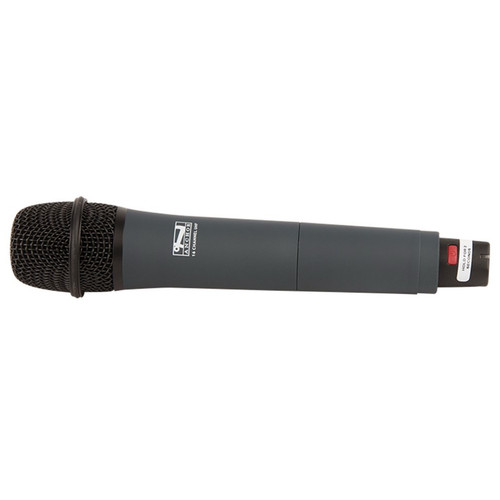

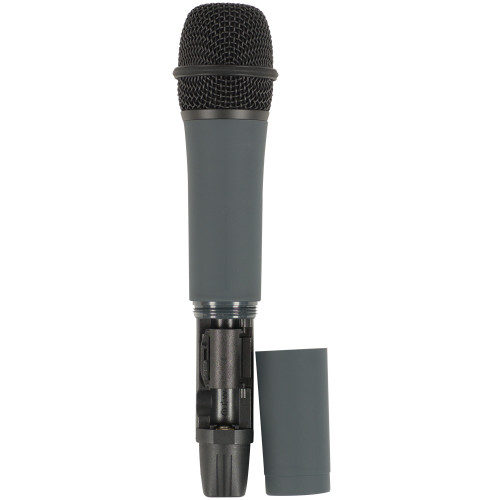

Includes 2 WH-8000 classic wireless handheld microphones with a sleek and lightweight design. With a 150' wireless range, they operate on 540 - 570 MHz frequency range and have 16 user-selectable wireless channels. The WH-8000 is powered by two AA batteries and operates approximately 6 - 8 hours.

Features

Features

Reaches crowds up to 1,500+
117 dB of clear sound
125W AC mode / 100W DC mode
Two built-in wireless receivers
Standard built-in Bluetooth with a line of sight range of 100'
Built-in CD/MP3 combo player with remote control
Two universal mic input jacks
3.5 mm AUX line input
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
One 10" woofer and one ceramic compression driver
External speaker output powers optional Liberty Platinum unpowered companion speaker

Specification

Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	Lo-Z (1 KW), balanced, XLR 12 VDC condenser mic
(Phantom) Power	Hi-Z (10 KW), unbalanced, 1/4" phone Hi-Z (10 KW), unbalanced, 1/8" stereo, 1/4" phone
Line In/Out	Unbalanced, stereo RCA
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker Out	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
Speaker Weight	44 lbs (20 kg)

Documents

Documents

Owner's Manual

Spec Sheet

Brochure

Bluetooth Specs

System Includes

System Includes

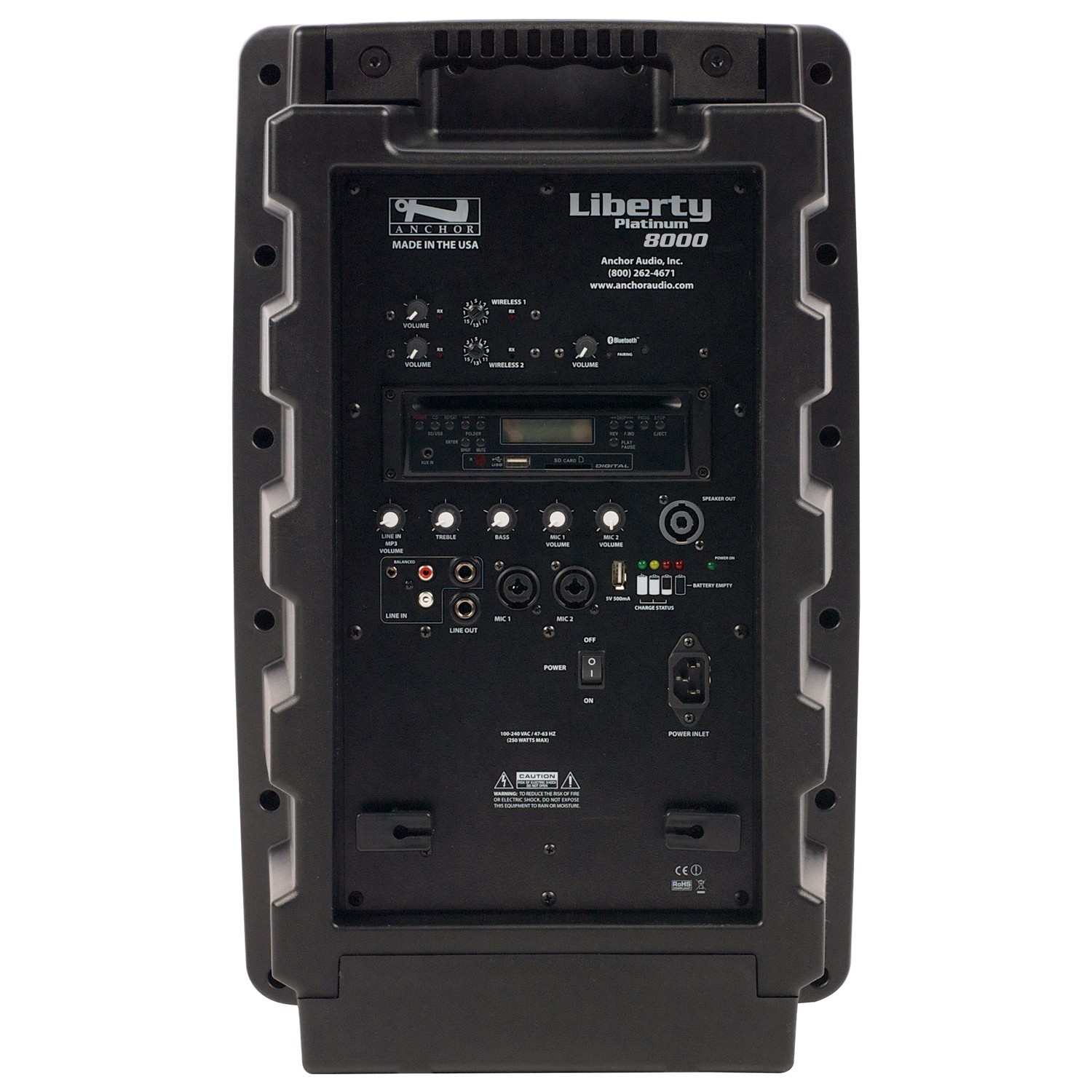

(1) Speaker with Built-in CD/MP3 Combo Player, 2 Wireless Receivers and Built-in Bluetooth (LIB-8000CU2)
(2) Wireless Handheld Microphones (WH-8000)

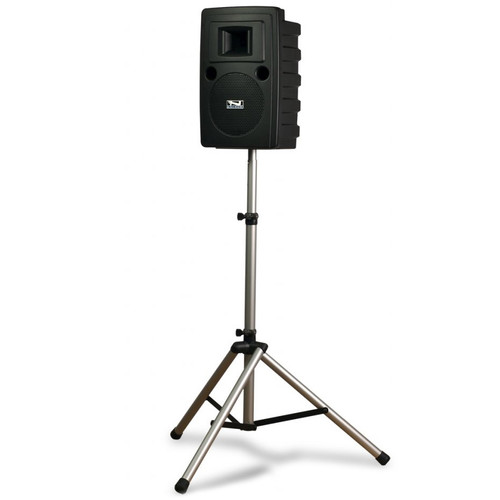

(1) Heavy Duty Speaker Stand (SS-550)
(1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
