Anchor Audio LIB-DP Liberty Platinum Deluxe PA Package with Lapel Microphone (Discontinued)
Part # LIB-DP-LM
Model # LIB-DP

This Liberty Platinum Deluxe Package from Anchor Audio includes a speaker with built-in CD/MP3 combo, wireless receiver and Bluetooth capabilities, a companion speaker, and a wireless lapel microphone.

Availability: Special Order

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Liberty Platinum Deluxe Package from Anchor Audio includes a LIB-8000CU1 speaker with built-in CD/MP3 combo, wireless receiver and Bluetooth capabilities, a LIB-8001 unpowered companion speaker and cable, a wireless lapel microphone, 2 SS-550 heavy duty speaker stands and aux cable. This portable sound system is designed with intelligibility, reliability, and simplicity in mind. This PA full-featured system covers a crowd of 3000 or more, providing clear voice amplification for any application. Use the Liberty indoors or outdoors for school functions, lecture halls, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

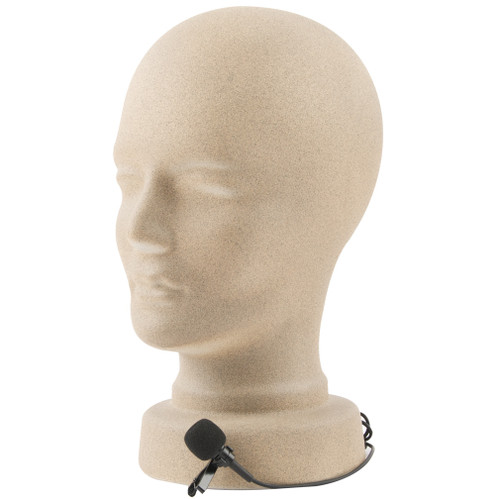

The LM-60 is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a TA4F connector plug.

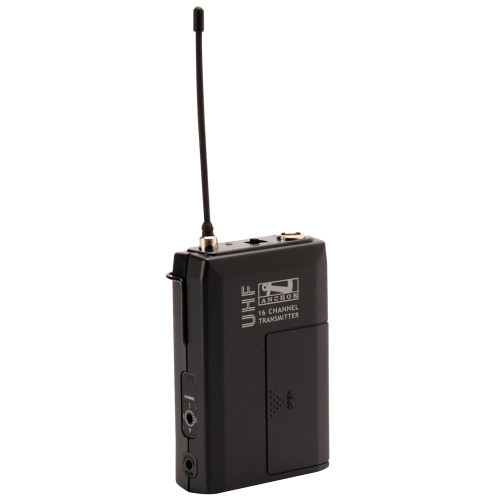

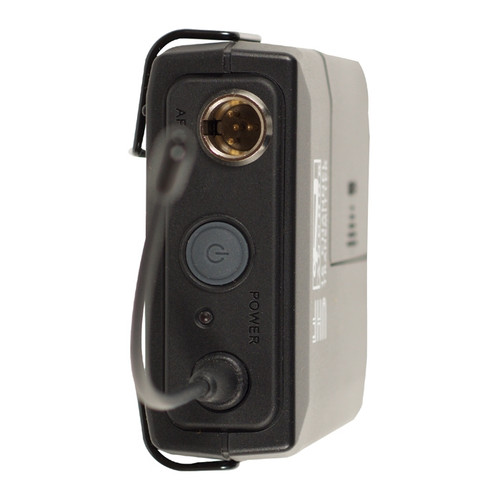

The WB-8000 is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.

Features

Features

  • Reaches crowds up to 3,000+
  • 117 dB of clear sound
  • 125W AC mode / 100W DC mode
  • One built-in wireless receiver
  • Standard built-in Bluetooth with a line of sight range of 100'
  • Built-in CD/MP3 combo player with remote control
  • Two universal mic input jacks
  • 3.5 mm AUX line input
  • Built-in rechargeable batteries operate 6 - 8 hours on a single charge
  • One 10" woofer and one ceramic compression driver
  • External speaker output powers optional Liberty Platinum unpowered companion speaker
Specification
Rated Power Output125 watts AC / 100 watts DC
Max SPL @ Rated Power117 dB
Battery(2) 12V, lead acid rechargeable, 9.0 AH
Full RechargeApprox 7 hrs
Frequency Response60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)Isolated, 600 Ohm, 1/4" phone
AC Power Requirements100 – 240 VAC~47-63 Hz, (250W max)
USB5V 500mA
Microphone Inputs(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power
(2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs(1) Stereo RCA, unbalanced
(1) 3.5 mm stereo aux, unbalanced
(1) 1/4", unbalanced
OutputsLine / Post Fader: Lo-Z, 1/4" phone
Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated OutputLo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
Phantom Power 36V
Speaker Out4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000CU1 Speaker Weight38 lbs (17 kg)
LIB-8001 Speaker Weight20.5 lbs (9.30 kg)
Documents
System Includes

System Includes

  • (1) Speaker with Built-in CD/MP3 Combo Player, Wireless Receiver and Built-in Bluetooth (LIB-8000CU1)

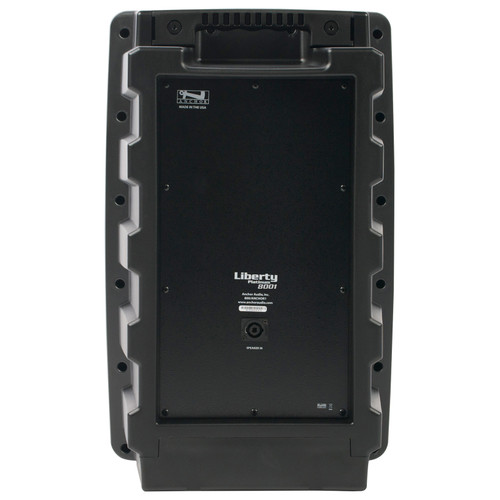

  • (1) Unpowered Companion Speaker (LIB-8001)
  • (1) Wireless Lapel Microphone (LM-60)
  • (1) Wireless Belt Pack Transmitter (WB-8000)
  • (2) Heavy Duty Speaker Stands (SS-550)
  • (1) Companion Speaker Cable - 50 ft (SC-50NL)
  • (1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
