- Description
Details
Cables can snare. Upgrade to the AIR! The Liberty Platinum is the most popular Anchor Audio portable sound system, and the product to define the industry. Now with complete wireless capability, take your Liberty and Liberty AIR anywhere for double the sound coverage without the hassle of running cables between units. Use the Liberty AIR indoors and outdoors for school functions, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.
The CM-60 is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a TA4F connector plug.

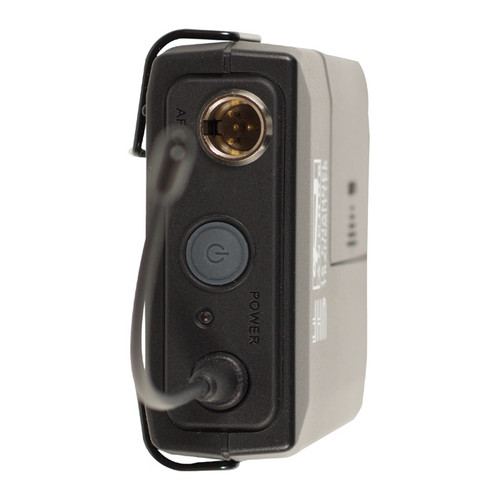

The WB-8000 is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.
- Features
Features
- Reaches crowds up to 3,000+
- 117 dB of clear sound
- 125W AC mode / 100W DC mode
- One built-in AIR wireless companion transmitter
- Two built-in wireless receivers
- Expandable to multiple AIR battery powered wireless companion speakers
- Easily connects to Assistive Listening
- ADA Compliant
- Built-in rechargeable batteries operate 6 - 8 hours on a single charge
- Alternate wired and wireless mode
- External speaker output powers optional Liberty Platinum unpowered or AIR companion speaker
- Specification
AIR Frequency Range 902.000 - 928.000 MHz Wireless Range 300’+ line of sight Rated Power Output 125 watts AC / 100 watts DC Max SPL @ Rated Power 117 dB Battery (2) 12V, lead acid rechargeable, 9.0 AH Full Recharge Approx 7 hrs Frequency Response 60 Hz – 15 kHz ± 3dB Line Output (Post Fader) Isolated, 600 Ohm, 1/4" phone AC Power Requirements 100 – 240 VAC~47-63 Hz, (250W max) USB 5V 500mA Microphone Inputs (2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power
(2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalancedLine Inputs (1) Stereo RCA, unbalanced
(1) 3.5 mm stereo aux, unbalanced
(1) 1/4", unbalancedOutputs Line / Post Fader: Lo-Z, 1/4" phone
Speaker Output: 4-pole Neutrik Speakon connectorSensitivity For Rated Output Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
Phantom Power 36VSpeaker In 4-pole Neutrik Speakon jack Speaker Dimensions (H x W x D) 22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm) LIB-8000XU2 Speaker Weight 34.5 lbs (15.65 kg) LIB-AIR Speaker Weight 34.1 lbs (15.5 kg) - Documents
Documents
- System Includes
System Includes
- (1) Speaker with Bluetooth, AIR Wireless Companion Transmitter, and Two Wireless Receivers (LIB-8000XU2)
- (1) Liberty AIR Battery Powered Wireless Companion Speaker (LIB-AIR)
- (2) Wireless Collar Microphones (CM-60)
- (2) Wireless Belt Pack Transmitters (WB-8000)

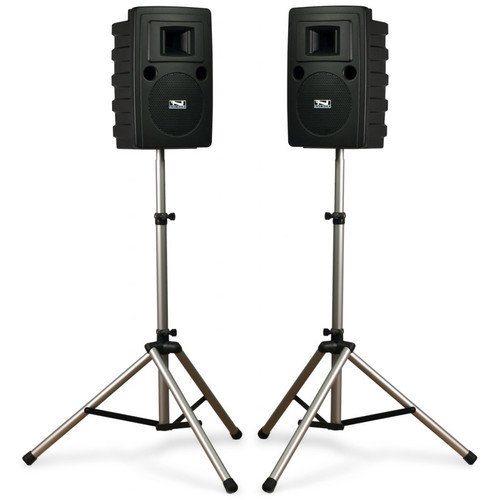

- (2) Heavy Duty Speaker Stands (SS-550)
- (1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
- Reviews
Write Your Own Review
System Components
-
Anchor Audio WB-8000 16-Channel UHF Wireless Belt Pack Transmitter with TA4F Connector Plug
List $327.59Pro Acoustics Price $299.00
