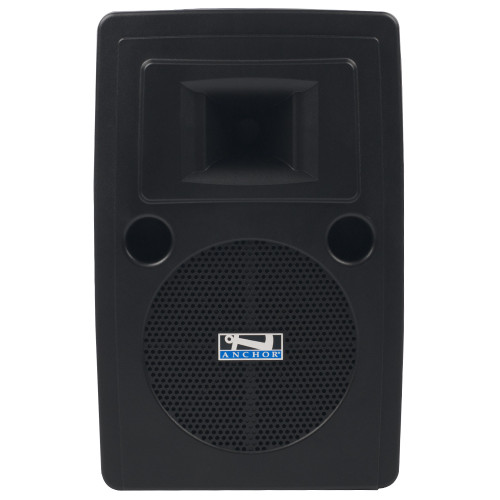

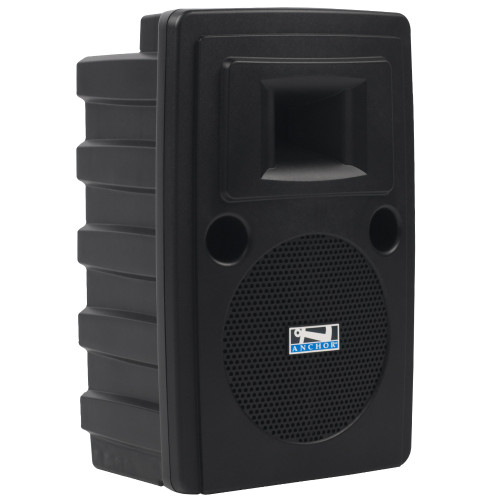

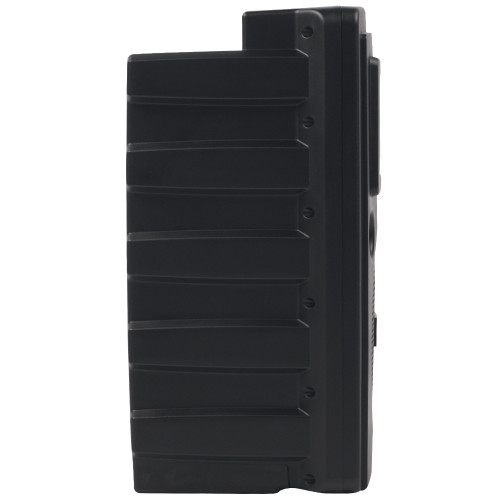

Anchor Audio LIB-DPDUAL-AIR Liberty Deluxe Dual AIR PA Package with 2 Lapel Microphones

Home /
Anchor Audio LIB-DPDUAL-AIR Liberty Deluxe Dual AIR PA Package with 2 Lapel Microphones (Discontinued)

Description

Details

Cables can snare. Upgrade to the AIR! The Liberty Platinum is the most popular Anchor Audio portable sound system, and the product to define the industry. Now with complete wireless capability, take your Liberty and Liberty AIR anywhere for double the sound coverage without the hassle of running cables between units. Use the Liberty AIR indoors and outdoors for school functions, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

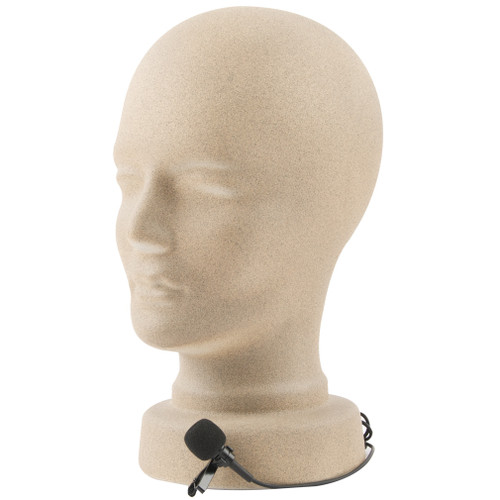

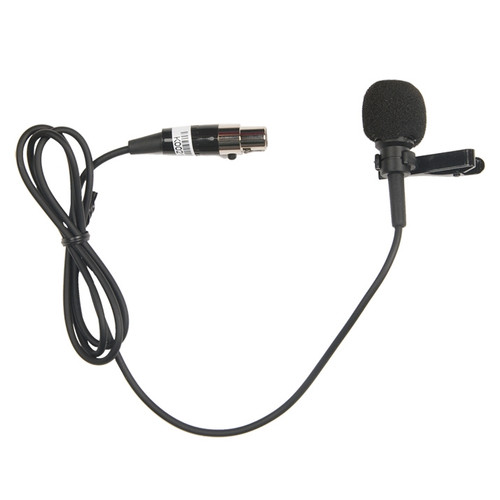

The LM-60 is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a TA4F connector plug.

The WB-8000 is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.

Features

Features

Reaches crowds up to 3,000+
117 dB of clear sound
125W AC mode / 100W DC mode
One built-in AIR wireless companion transmitter
Two built-in wireless receivers
Expandable to multiple AIR battery powered wireless companion speakers
Easily connects to Assistive Listening
ADA Compliant
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
Alternate wired and wireless mode
External speaker output powers optional Liberty Platinum unpowered or AIR companion speaker

Specification

AIR Frequency Range	902.000 - 928.000 MHz
Wireless Range	300’+ line of sight
Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power (2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs	(1) Stereo RCA, unbalanced (1) 3.5 mm stereo aux, unbalanced (1) 1/4", unbalanced
Outputs	Line / Post Fader: Lo-Z, 1/4" phone Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker In	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000XU2 Speaker Weight	34.5 lbs (15.65 kg)
LIB-AIR Speaker Weight	34.1 lbs (15.5 kg)

Documents

Documents

Spec Sheet

System Includes

System Includes

(1) Speaker with Bluetooth, AIR Wireless Companion Transmitter, and Two Wireless Receivers (LIB-8000XU2)
(1) Liberty AIR Battery Powered Wireless Companion Speaker (LIB-AIR)
(2) Wireless Lapel Microphones (LM-60)
(2) Wireless Belt Pack Transmitters (WB-8000)

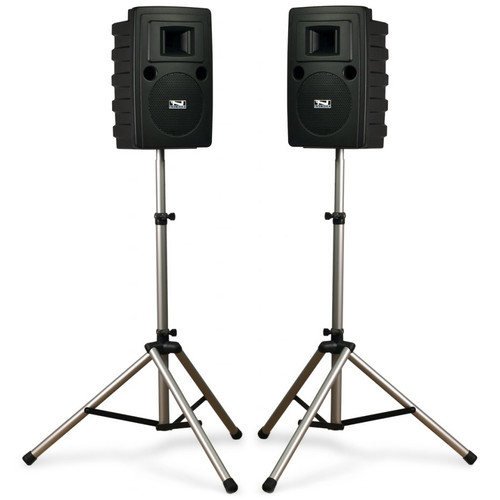

(2) Heavy Duty Speaker Stands (SS-550)
(1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
