Anchor Audio LIB-DPDUAL Liberty Platinum Dual Deluxe PA Package with 2 Ear Worn Microphones

Home /
Anchor Audio LIB-DPDUAL Liberty Platinum Dual Deluxe PA Package with 2 Ear Worn Microphones (Discontinued)

Description

Details

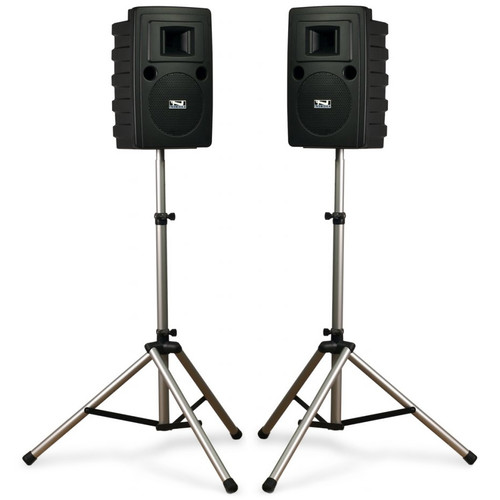

The Liberty Platinum Deluxe Package from Anchor Audio includes a LIB-8000CU2 speaker with built-in CD/MP3 combo, 2 wireless receivers and Bluetooth capabilities, a LIB-8001 unpowered companion speaker and cable, 2 wireless ear worn microphones, 2 SS-550 heavy duty speaker stands and aux cable. This portable sound system is designed with intelligibility, reliability, and simplicity in mind. This PA full-featured system is ready to perform, providing clear voice amplification for any application. Use the Liberty indoors or outdoors for school functions, lecture halls, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

The EM-TA4F is Anchor Audio's most popular microphone element for professional events because of its nude color. The UltraLite microphone has a single ear design with additional clips for wire management, and it also fits close to the head for increased performance. Simply fit the EM-TA4F over your ear and place the microphone in front of your mouth. The UltraLite microphone has a TA4F connector plug.

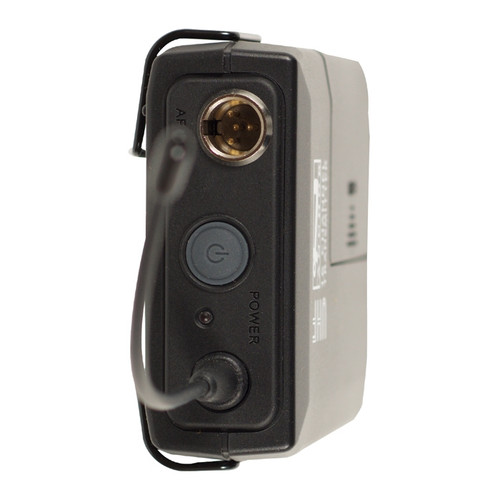

The WB-8000 is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.

Features

Features

Reaches crowds up to 3,000+
117 dB of clear sound
125W AC mode / 100W DC mode
Two built-in wireless receivers
Standard built-in Bluetooth with a line of sight range of 100'
Built-in CD/MP3 combo player with remote control
Two universal mic input jacks
3.5 mm AUX line input
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
One 10" woofer and one ceramic compression driver
External speaker output powers optional Liberty Platinum unpowered companion speaker

Specification

Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power (2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs	(1) Stereo RCA, unbalanced (1) 3.5 mm stereo aux, unbalanced (1) 1/4", unbalanced
Outputs	Line / Post Fader: Lo-Z, 1/4" phone Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker Out	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000CU2 Speaker Weight	44 lbs (20 kg)
LIB-8001 Speaker Weight	20.5 lbs (9.30 kg)

Documents

Documents

Owner's Manual

Spec Sheet

Brochure

Bluetooth Specs

System Includes

System Includes

(1) Speaker with Built-in CD/MP3 Combo Player, 2 Wireless Receivers and Built-in Bluetooth (LIB-8000CU2)
(1) Unpowered Companion Speaker (LIB-8001)
(2) Wireless UltraLite Ear Worn Microphones (EM-TA4F)
(2) Wireless Belt Pack Transmitters (WB-8000)
(2) Heavy Duty Speaker Stands (SS-550)
(1) Companion Speaker Cable - 50 ft (SC-50NL)
(1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
