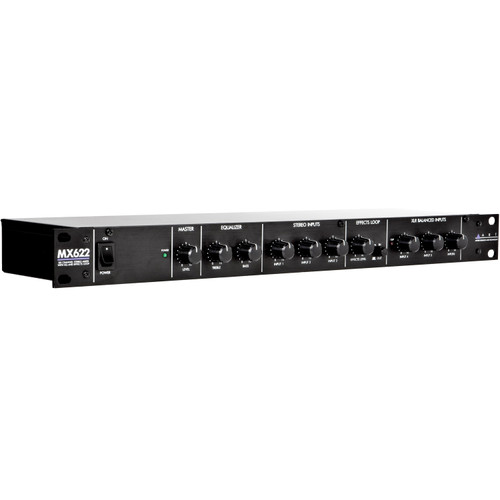

ART MX622 6-Channel Stereo Mixer with EQ/EFX Loop
The MX622 Personal Stereo Mixer is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allow for easy installation and reliable long-term operation.
- Features
Features
- Three Balanced XLR Inputs Switchable Mic/Line Level
- Three Stereo RCA Inputs with Separate Level Controls
- Level Control and Clip Indicators
- Selectable 15-volt Phantom Power for Mic Channels
- Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
- Versatile Two-Band Master EQ
- Separate Stereo Record Outputs
- Effects Loop with Level Independent Level Control
- Specification
Input Connections XLR-F balanced (x3) / ¼-inch unbalanced (x2) / 3 pairs stereo RCA (6 total) Output Connections TRS balanced 1/4-inch (x2) / 1/4-inch unbalanced (x1) / RCA (x2) Input Impedance 600/22K Ohms mic/line XLR inputs / 10K Ohms RCA inputs / 22K Ohms 1/4-inch effects returns Output Impedance 50 Ohms 1/4-inch main outputs / 1K Ohms RCA record outputs / 100 Ohms effects output Maximum Input Level -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs Maximum Output Level +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output Phantom Power +15 Volts DC (regulated / low noise) Maximum Gain 56dB/26dB mic/line / 26dB RCA inputs Signal to Noise Ratio >90dB typical THD .01% Typical Equalizer Range +/-12dB @ 100Hz & 10KHz Power Requirements – 105 to 125 VAC / 50-60Hz, 15 Watts typical Dimensions (H x W x D) 1.75" (44.5 mm) x 19" (483 mm) x 6" (152 mm) Weight 6.2 lbs (2.8 kg) - Documents
