The neWR-5 is a programmable Ethernet based remote control unit for all Ashly network enabled products, including NE processors, NE power amplifiers, Pema amplifiers, and nXe/nXp amplifiers. The neWR-5 offers remote control of preset recall/scroll, mute, zone source selection, individual channel and matrix point level control, and logic output control*. All programming is done using Ashly Proteane software for Windows®. This device fits in standard wall boxes and uses a wired Ethernet network connection for hook-up.

*DSP must be installed in the target device in order to control zone source selection, level control, and matrix control.

• Six programmable LED function buttons
• Two, Up/Down buttons w/ LED display adjust parameters
• Preset recall and preset scroll
• Input, output, zone, and matrix mix level control
• Zone source select
• Channel mute
• Logic high/low Output (ne24.24M w/ GPO option, ne4800/8800)
• Powered using IEEE 802.3af Power over Ethernet, or external supply**
• RJ-45 Ethernet connector, 100M maximum cable distance
• Hard-wired Lock-out connector for security key switch
• Window for user-defined labels



Compatible Ashly Products include:

• nXe*, nXp amplifiers
• Pema amplifiers
• NE multi-channel amplifiers*
• NE two-channel amplifiers*

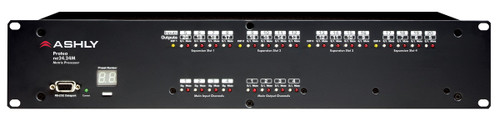

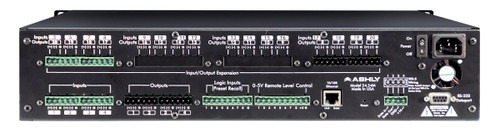

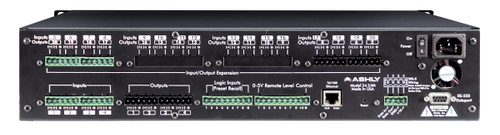

• ne24.24M matrix processor
• NE8800/4800 network processors



* Use on products without DSP is limited to preset recall/scroll, mute, and logic functions
** POE Injector, or external 15-48VDC power supply capable of at least 2 watts per neWR-5
