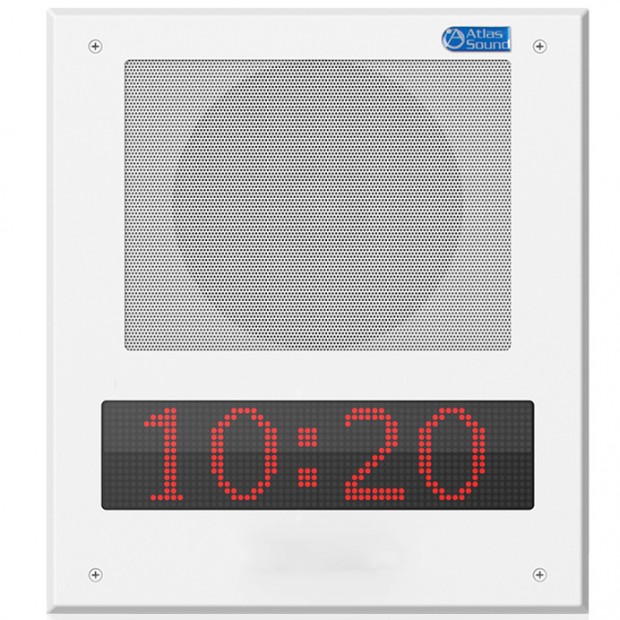

Atlas Sound I8SCH+ Indoor Wall Mount IP Horn Loudspeaker with LED Display (Discontinued)
Part # I8SCH+
Model # I8SCH+
The Atlas Sound I8SCH+ Indoor Wall Mount IP Loudspeaker with Horn can leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Atlas Sound I8SCH+ is replacing the Discontinued Atlas Sound I8SCH.

Atlas I8SCH+ indoor wall mount IP loudspeaker with Horn and display can leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large loudspeakers with high output to overcome high ambient noise areas or large spaces.

Atlas I8SCH+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP loudspeakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

I8SCH+ IP loudspeakers with display provide equality “effective communication”.

“Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

Where 3rd party notification applications are not required, the I8SC+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

Features

Features

  • Natively Auto Registers as an Endpoint in GlobalControlKom®, InformaCast®, or SA-Announce Notification Applications
  • Works with New or Existing Multicast Enabled Local Area Networks
  • Compatible with SIP (Session Initiation Protocol) VoIP systems
  • IEEE 802.3af or 802.3at Compliant POE/POE+
  • Primary and Aux Speaker Outputs
  • Emergency Alert Trigger
  • Relay Output
  • Aux Audio Input
  • External Power Supply Option
  • Dynamic or Static IP Address
  • Phone/Night Loud Ringer
  • Static Multicast Audio Reception
  • Custom Event Notification Scripting
  • Auto Provisioning
  • Secure Web Configuration
  • Highly Efficient APF Horn Loudspeaker Provides Greater Output and Coverage
  • Includes LED Display with Capability to Display Time or Scrolling Text for Announcements or Emergency Messages
Specification
Connector TypeRJ-45
UL Listied60950-1
Dimensions (H x W x D)14.38" (365 mm) x 12.88" (327 mm) x 3.51" (89.2 mm)
Net Weight5 lbs (2.27 kg)
Shipping Weight6.25 lbs (2.81 kg)
