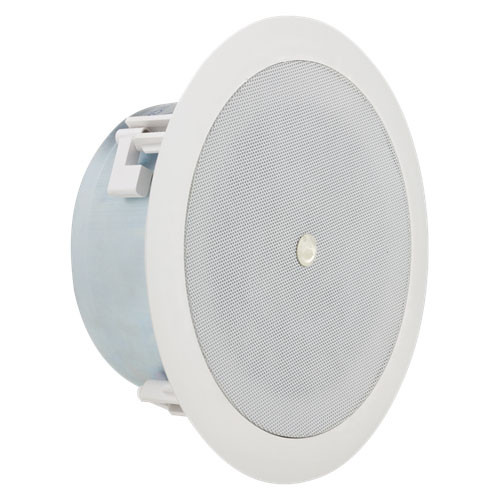

Atlas Sound FAP42TC-UL2043 Strategy II Series 4 inch Coaxial Shallow In-Ceiling Loudspeaker (UL 2043 Listed) - Pair
Part # FAP42TC-UL2043
Model # FAP42TC-UL2043

The Atlas Sound FAP42TC-UL2043 Strategy II Series 4 inch Coaxial Shallow In-Ceiling Loudspeaker meets the requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. With an overall depth of 4" (102mm) the FAP42TC-UL2043 is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited.

Availability: In Stock and Ready to Ship! Free Shipping!

List Price $271.98
Pro Acoustics Price $219.98
Your Savings $52.00 (19%)
OR

Free Lifetime
Tech Support!

with Every Purchase Start Chatting
Description

Details

The FAP42TC-UL2043 from Atlas Sound meets the requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. With an overall depth of 4" (102mm) the FAP42TC-UL2043 is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited. For wall mount applications (tanning salons or surround sound) the short 4" depth will even work in most stud wall installations.

A simplified input section features a 4-pole Phoenix style connector for easy daisy chaining between speakers. A simple cover including combination 1/2" (13mm) / 3/4" (19mm) knock-outs is provided for installation ease. The popular Atlas Sound "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and existing construction drywall. For new construction drywall applications the optional FAP42-TR may be used. Other popular features of the FAP42T include the front mounted tap selector switch (with included transformer bypass for 8 Ohm applications), attractive press-fit grills, high performance 4" polypropylene cone driver with 3/4" (19mm) PEI tweeter and precision crossover components for smooth, even coverage.

Features

Features

  • "Press Fit" Grilles Blend Better into Contemporary Architecture
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing Increased Output for Higher SPL Applications
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Low Depth 4" Speaker System for Limited Space Applications
  • UL1480 / UL2043
Specification
Power Rating 25 Watts
Transformer Taps 1, 2, 4, 8, & 16 Watts
Frequency Response 83Hz – 20kHz (±7dB)
Sensitivity (1W / 1M) 88dB
Woofer 4" Poly Cone with Butyl Rubber Surround
HF Driver Coaxially Mounted PEI Dome Tweeter
Dispersion 130°
UL Listed/Standard 1480
Woofer Magnet Weight 10oz (364g)
Enclosure Volume 134 in3
Dimensions
(Dia x H)
10.5" (267 mm) x 4.25" (107.7 mm)
Shipping Weight (Pair) 26.00 lbs (11.79 kg)
