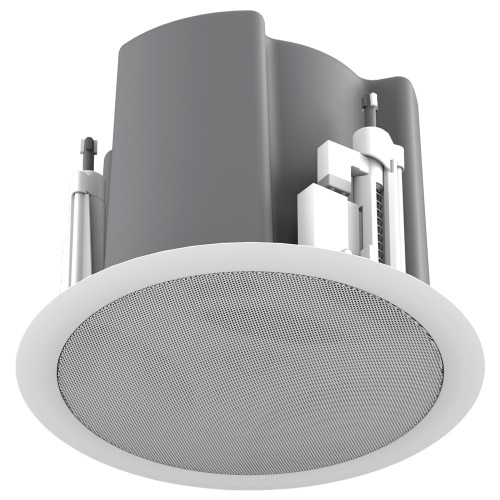

Atlas Sound FAP43T-W Strategy III Series 4.5" Full Range In-Ceiling Loudspeaker with 32W 70V 100V Transformer - Pair
Part # FAP43T-W
Model # FAP43T-W

The Atlas Sound FAP43T-W is a 4.5-inch full range coaxial in-ceiling loudspeaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage with next generation install technology.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

List Price $317.98
Pro Acoustics Price $259.98
Your Savings $58.00 (18%)
OR

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Atlas Sound FAP43T-W Strategy III loudspeaker is a 4.5-inch full range coaxial model and the next generation of industry-leading, in-ceiling loudspeaker technology. It is packed with new performance innovations at an affordable price point for every style of install applications. If you require an in-ceiling loudspeaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage, look no further.

Atlas achieved these new standards by building upon the current Strategy Series's excellent reputation and by extensive market research to make it even better. The improved waveguide design provides wider coverage than previous models. The benefit is cost savings due to fewer loudspeakers required, while still maintaining uniform sound throughout. The FAP43T-W's 110° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary Atlas Sound FA134 driver. High-quality construction 4.5-inch coaxial cone type driver includes a 1-inch voice coil and high-efficiency composite cone with polymer coated cloth surround the 20 mm coaxially mounted silk dome tweeter. A high sensitivity of 90dB average means less power may be required to achieve the desired SPL.

This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32-watt low saturation 70.7V / 100V transformer. A convenient front-mounted selector switch allows tap selection without the need to remove the loudspeaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.

Three years of development has produced the most innovative, easily installed, and safety-secure ceiling loudspeakers in the professional audio market. Patented "Safety First Mounting System" protects from over-torquing the mounting doglegs during installation and potentially cracking or breaking the mounting system. The results are no install tools required, no over-torqued doglegs, no rusted screws and quick installation.

Features

Features

  • 4 pole detachable Phoenix style connector allows easy pre-wiring
  • Convenient for daisy chaining additional speakers
  • 70.7V / 100V and 8Ω operation
  • Patented "Safety First Mounting System" enables installation without drill or screwdriver
  • Ported enclosure provides enhanced low-frequency response
  • Front mounted tap selector switch for easy system tuning adjustments include transformer bypass setting for 8Ω direct coupled operation
  • Easy installation in drop tile or sheetrock ceilings via c-ring / v-rail tile bridge (included)
  • Safety listed to UL1480 and UL2043
Specification
Transformer Taps70V - 32W, 16W, 8W, 4W and Low Impedance (8Ω)
100V - 32W, 16W, 8W
Frequency Response70Hz - 20kHz
Sensitivity90dB (1W/1m)
Dispersion110 Degrees
Certified to Safety ListingUL1480 & UL2043
Dimensions (H x W x D)9.57" (243 mm) x 9.57" (243 mm) x 7.27" (184.7 mm)
Weight6.23 lbs (2.85 kg)
