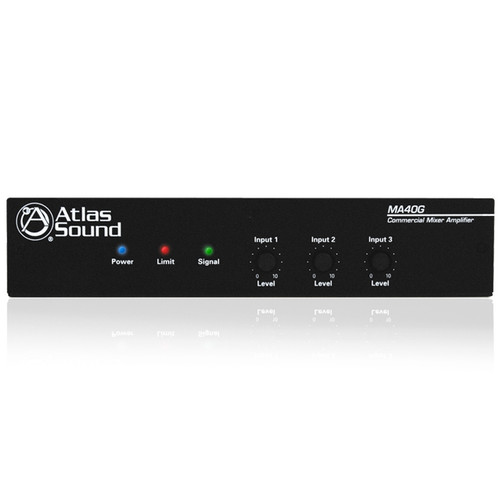

Atlas Sound MA40G 3-Channel 40W Mixer Amplifier

More Views

Atlas Sound MA40G 3-Channel 40W Mixer Amplifier

Part # MA40G

Model # MA40G

The Atlas Sound MA40G 3-channel mixer amplifier provides 40W into a 70.7V / 100V line and has three total inputs including a balanced mic/line input featuring phantom power and variable mute sensitivity control.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

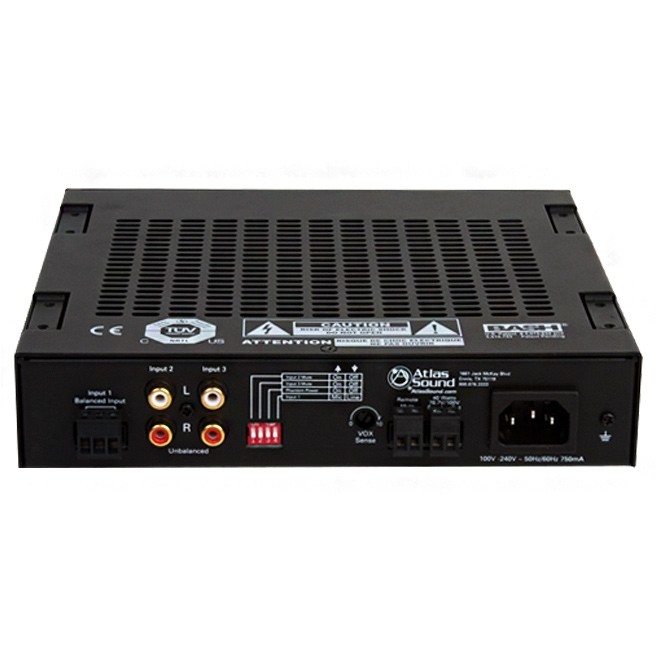

Small and compact, and engineered for reliability, the Atlas Sound MA40G amplifier is the perfect choice for distributed business paging and background music (BGM) systems, and small to medium speech privacy systems. It provides 40 W into a 70.7 V / 100 V line and has three total inputs including a balanced mic/line input featuring phantom power and variable mute sensitivity control as well as two unbalanced, summing line level inputs. Additional features include Removable Level Controls with set it and forget it security cover, contact closure mute terminals, and a global (100 VAC-240 VAC) power supply.

The MA series of amplifiers are part of a new line from Atlas Sound that are designed from the ground up and include the important features professional installation personnel require to meet or exceed their customer's expectations.

Features

Features

One Balanced Mic/Line/Tel Input w/Phantom Power
2 Unbalanced, Summing Line Level Inputs
Variable VOX Mute Sensitivity Control for Input 1
Contact Closure Mute Terminals
Global Power Supply, 100 VAC-240 VAC ~ 50/60 Hz
Compact 1RU, 1/2 Rack

Specification

Power Output	40 W @ 70.7 V (125 ohm), 40 W @100 V (250 ohm)
Frequency Response	50 Hz - 20 kHz
THD+N	0.5% or Less @ 1 kHz, Rated Output
Sensitivity	Input 1 Mic = .316 ~ 3.16 mV (-50 ~ -30 dBV) Line Input 500 mV (600 Ω) Inputs 2/3 RCA 500 mV (10 kΩ)
Output Regulation	Less Than 2dB, No Load To Full Load
Signal to Noise Ratio
Mic	>55dB
Line	>55dB
Input	>55dB
Indicators	Power, Signal, Limit
Power Consumption
Idle	8 W, 0.075A, 27 BTU
Average	24 W, 0.26A, 81 BTU
Max	71 W, 0.8A, 242 BTU
Dimensions (H x W x D)	1.75" (44 mm) x 8.5" (216 mm) x 7.81" (198 mm)
Weight	2.9 lbs (1.32 kg)
Shipping Weight	3.1 lbs (1.4 kg)
