Audio-Technica's ATW-2192b with the ATW-R2100b receiver and ATW-T210a UniPak® Microphone System transmitter with BP892cW(-TH) MicroSet® omnidirectional condenser headworn microphone is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a UniPak® transmitters in any combination.
Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock™ squelch plus an easy-to-read LCD information display.- Features
Features
- Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning
- Tone Lock™ tone squelch system fights interference
- 10 compatible user-switchable channels in one of two UHF frequency ranges
- Rugged metal half-rack receiver with soft-touch controls and LCD display
- Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Specification
General Operating Frequencies (UHF) Band I: 487.125 to 506.500 MHz Number of Channels 10 total Modulation Mode FM Maximum Deviation ±40 kHz Dynamic Range > 110 dB (A-weighted), typical Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation) Operating Range 300' (100 m), typical open range environment with no interfering signals. Operating Temperature Range 5º C to 45º C 41º F to 113º F Battery and LCD performance may be reduced at very low temperatures. Frequency Response 100 Hz to 15 kHz (+1 dB, -3 dB) ATW-R2100 Receiver Receiving System Dual independent receivers,automatic-switching diversity Image Rejection 55 dB nominal, 50 dB minimum Signal-to-noise Ratio >100 dB at 40 kHz deviation (A-weighted),maximum modulation 40 kHz Total Harmonic Distortion <1% (±10 kHz deviation at 1 kHz) Sensitivity 20 dBμV (S/N 60 dB at 5 kHz deviation,IEC -weighted) Intermediate Frequency 65.75 MHz, 10.7 MHz Audio Output (AF Level set at Unbalanced: 25 mV (at 1kHz, ±5 kHz deviation,100k ohm load)
Balanced:12.5 mVOutput Connectors Unbalanced:1/4" phone jack
Balanced:XLRM-typePower Supply 120V AC 60 Hz, or 12–18V DC, 350 mA,with external supply Dimensions (H x W x D) 1.73" (44 mm) x 8.27" (210 mm) x 6.39" (162.2 mm) Weight 2.2 lbs (1 kg) ATW-T210 UniPak Transmitter RF Power Output 12 mW Spurious Emissions Under federal regulations Input Connections High impedance, low impedance, bias Batteries (not Included) Two 1.5V AA alkaline Current Consumption 150 mA typical Battery Life Approximately 9 hours (depending on batterytype and use pattern) Dimensions (H x W x D) 3.63" (92.3 mm) x 2.60" (66 mm) x 0.89" (22.5 mm) Net Weight (without Batteries) 0.17 lbs (80 g) AT892cW Headworn Microphone Element Condenser Polar Pattern Omnidirectional Frequency Response 20 - 20,000 Hz Open Circuit Sensitivity -44 dB (6.3 mV) re 1V at 1 Pa Maximum Input Sound Level 122 dB SPL, 1 kHz at 1% T.H.D. Signal-to-Noise Ratio 60 dB, 1 kHz at 1 Pa Current Consumption 0.1 mA typical @ 5V Voltage Range 2.5-11V Dimensions (Dia x L) 0.11" (2.7 mm) x 0.32" (8.1 mm) Weight 0.005 lbs (2.4 g) - System Includes
System Includes
- (1) ATW-R2100b Receiver

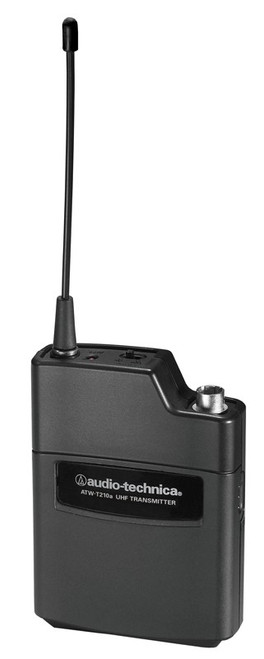

- (1) ATW-T210a UniPak Microphone System Transmitter
- (1) BP892cW MicroSet Omnidirectional Condenser Headworn Microphone
