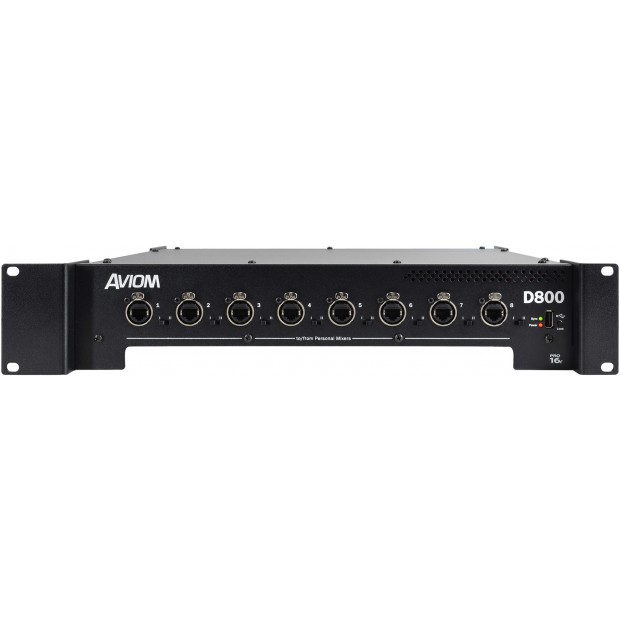

The D800-Dante A-Net Distributor provides the link between the input module or console card and the Personal Mixer, providing power and a copy of the digital audio stream to your Aviom Personal Mixer, utilizing a standard Cat-5e cable.

The D800-Dante integrates additional advanced options for delivering high-channel-count audio streams to your Personal Mixer, streamlining connections between A360s and transmitters for wireless in-ear monitors, and integrating the A360 Display iOS app.

The D800-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Simple Setup. Powerful Performance.

On the most basic level, the D800-Dante does an unglamorous but important job: get power and audio to your Personal Mixer. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.

Get More Channels to Your Mixer

Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixer. Mix channels can be individually selected for each A360 Personal Mixer using A360 Channel Manager, allowing each musician to mix exactly the sources they need.

Connect Directly to Dante

If your audio system includes a Dante™ audio network, the D800-Dante can interface directly to the network. Assign up to 64 channels from Dante to the D800-Dante for distribution to the Aviom Personal Mixers. Rear-panel DIP switches are used to set the stereo links for channels going to the Personal Mixers.

Dante Sample Rates Up to 192kHz

With the D800-Dante, you can run your Dante network at 44.1/48kHz, 88.2/96kHz, or 176.4/192kHz. At higher sample rates, the D800-Dante converts the audio data to 48kHz for distribution to the Aviom Personal Mixers (and other A-Net devices).

Grow Your System

If you need more than eight Personal Mixers, the D800-Dante includes an A-Net Out port on the rear panel – perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors.

Network Mix Back for Wireless In-Ears

If you're using A360 Personal Mixers, the D800-Dante eliminates the need for running analog cables from A360s to the transmitter units for the in-ear monitors.

Extend the Interface with iOS

The D800-Dante manages communication between the A360 Personal Mixer and supported iOS devices, allowing users to run the A360 Display™ app alongside their A360.

• Direct connectivity to a Dante audio network
• Support for up to 64 Dante network channels
• Distributes power and audio to up to eight A-16II, A-16R, and A360 Personal Mixers
• One Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 A-Net streams
• Network Mix Back for streamlined connections to wireless IEM transmitters
• Ethernet support for iOS devices over Wi-Fi
• One Pro16e A-Net Out for thru connections
• Heavy-duty locking connectors for all audio connections
• Direct connectivity to a Dante™ audio network
• Support for up to 32 Dante network channels
