Biamp Devio CR-1T Conference Room System with CR-1 Hub and DTM-1 Tabletop Microphone (Discontinued)

Description

Details

Biamp Devio CR-1 Conference Room Dock System with DTM-1 Tabletop Beam Tracking Conferencing Microphone

The Devio CR-1 creates a desktop-like experience away from the desk, allowing you to make an easy transition to the meeting room simply by detaching your laptop from your desk and connecting to Devio via USB 3.0 in the meeting room. Devio’s included beamforming DTM-1 microphone provides 360-degree coverage to capture in-room audio. Optional support is provided for a second DTM-1 microphone via daisy-chained connection. Connecting to Devio extends your desktop to one or two displays and offers multiple USB ports for attaching computer peripherals like a web camera for video conferencing. With the laptop handling the connection to conferencing systems, Devio works easily with a host of conferencing solutions including Microsoft Skype for Business (Microsoft Lync®) and Microsoft Skype®, Citrix GoToMeeting®, Cisco WebEx®, and Google Hangouts™.

Features

Features

Devio CR-1:

USB 3.0 input for single-cable audio/video connectivity
Integrated DisplayLink USB graphics technology enables connecting to two displays over USB (requires installation of DisplayLink driver on laptop)
Pass-through HDMI connectivity for driverless connection to display
Acoustic Echo Cancellation
Auto setup
Automatic gain control
Speaker connectivity includes built-in 20W amplifier or RCA line-out
Devio System Administration Utility (SAU) and support for SNMP device management over corporate network
Includes mounting bracket for under–the-table installation
Ships with one tabletop or one ceiling beamforming microphone with 360-degree coverage and the ability to add an additional microphone of the same type

Devio Beamforming Microphone:

Eight-element microphones
Active beamforming technology
Three 120-degree zones for 360 degrees of coverage
Automatic voice tracking
LED mute status indicator
Two selectable directivity modes (DTM-1)
Four selectable elevation angle modes (DCM-1)
Capacitive touch mute button (DTM-1)
Mounting plate for secure installation (DTM-1)
Simple installation process includes quick microphone height adjustment (DCM-1)
Additional RJ-45 for daisy-chained connection to an additional microphone
Covered by the Devio CR-1 two-year Biamp Systems warranty

Specification

CR-1

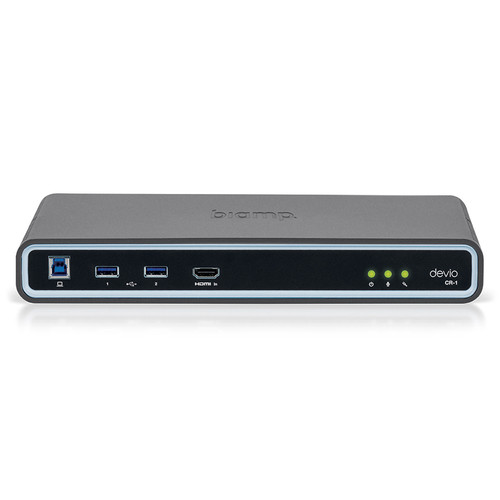

Front Panel Connectors
Upstream USB 3.0 Port (Type B Male Connector)	USB connectivity from computer to Devio CR-1 for audio and video, DisplayLink USB graphics technology enables connection to two displays
2 Downstream USB 3.0 Ports (Type-A Female Connector)	Two USB 2.0/3.0 ports for attaching additional peripherals to the computer
HDMI Input Port	Enables driverless, pass-through video connection from computer to one in-room display via Devio CR-1

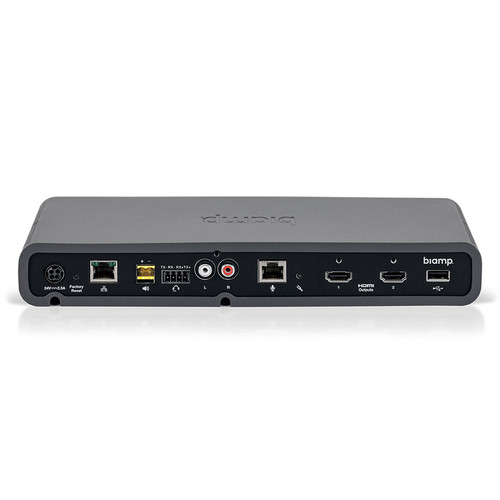

Rear Panel Connectors
24V DC Input	Locking connection for Devio CR-1 60W inline power supply
Ethernet (RJ45)	10/100/1000Base-T Ethernet network connection
2-pin Phoenix Connector	20W powered output speaker connection
4-pin Phoenix Connector	For bridging in-room telephone into audio conferences via headset jack (sidetone must be disabled)
Line Out (RCA)	Alternative connection to self-powered speakers (mono signal on both channels)
MIC Out (RJ45)	Cat-5/5e/6 cable connection to Devio DTM-1 tabletop microphone
2 HDMI Output Ports	Supports video output to up to two in-room HDMI-equipped displays
Downstream USB 2.0 Port	Additional USB 2.0 peripheral connection (ideal for USB Camera)
Line Output
Full Scale Level	+8.5 dBu
Frequency Response (20 Hz-20 kHz @ FS)	+0/-0.25 dB
Dynamic Range	95 dB A-Weighted (THD+N < 0.01%)
THD+N (20 Hz-10 kHz, 20 kHz BW) @ FS	<0.011%
Signal to Crosstalk Ratio (20 Hz-20 kHz) @ FS	85 dB (one channel driven)
Power Amplifier
Continuous Output Power	20W into Rated Load Impedance < 0.025% THD+N
Rated Impedance	8 Ω to 4 Ω (short circuit protection)
Frequency Response (20 Hz-20 kHz @ 20W)	+0.2/-0.5 dB
THD+N @ 1 kHz, 1W (20 kHz BW)	<0.02%
Dynamic Range	97 dB A-Weighted (THD+N < 0.025%)
Headset I/O
Full Scale Level	+1 dBu
Frequency Response (200 Hz-20 kHz @ FS)	+0.5/-0.5 dB
THD+N (1 kHz-10 kHz, 20 kHz BW) @ FS	< 0.05%
Dynamic Range	80dB A-Weighted (THD+N < 0.05%)
USB Audio Sampling Rate and Bit Rate	48 kHz, 16 bit
System Administration Utility Capabilities	Remote/networked-based CR-1 device access and management, install firmware updates, perform Auto Setup
Supported Video Resolutions	640 x 480p / 60Hz 4:3 720 x 480p / 60Hz 4:3 1280 x 720p / 60Hz 16:9 1920 x 1080p / 60Hz 16:9 720 x 576p / 50Hz 4:3 1280 x 720p / 50Hz 16:9 1920 x 1080p / 50Hz 16:9
USB Device Charging	Up to 5W, requires USB connection to computer
Dimensions (H x W x D)	1.82" (46 mm) x 11.19" (284 mm) x 6.88" (175 mm)
Weight	2.05 lbs (0.93 kg)

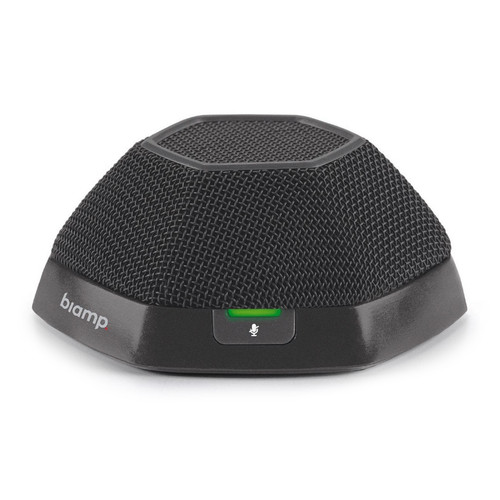

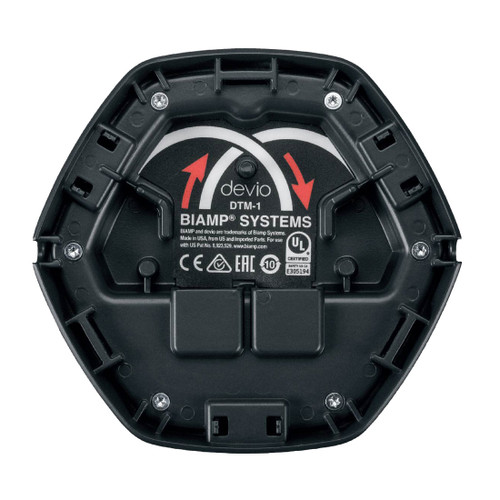

DTM-1 Microphone
Microphone Technology	8-Element Digital Array
Frequency Response	150 Hz - 16kHz (+3dB/-3dB)
Polar Pattern	Active Beamformed
Sensitivity	> 70 dB @ 1kHz (94 dBSPL, A-weighted)
Maximum SPL @ .5% THD	106dBSPL
Dynamic Range	92 dB A-Weighted (THD+N < 10%)
Power Requirements	<1W, Phantom Powered
Connector	1 x RJ45 (in) / 1 x RJ45 (out)
Automatic Noise Suppression	4 modes: Off, Low (Default), Medium, High
Operating Temperature	0° to 45° C / 32° to 113° F
Humidity Range	0% to 95% RH non-condensing
Mute Switching	3 Capacitive Touch Mute Buttons
Indicators	Mute Indicator (Green/Red LED)
Digital Interface	Custom/Proprietary
Required Cable	Standard 4-pairs UTP (minimum Cat-5)
Node to Node Max Distance	49.2 ft (15 m) from CR-1 to DTM tabletop microphone, and for daisychained connection from first to second DTM-1
Dimensions (H x W x D)	2.79" (56 mm) x 5.13" (130 mm) x 4.75" (121 mm)
Weight	0.6 lbs (0.27 kg)
