Conference Room Sound System with 2 Ceiling Speaker Arrays and Bosch Dicentis Wired Conference System with 12 Voting Discussion Devices

Conference Room Sound System with 2 Ceiling Speaker Arrays and Bosch Dicentis Wired Conference System with 12 Voting Discussion Devices

More Views

Conference Room Sound System with 2 Ceiling Speaker Arrays and Bosch Dicentis Wired Conference System with 12 Voting Discussion Devices

Part # CFSS-2SD412DCNMDVT

Model # CFSS-2SD412DCNMDVT

This DICENTIS Conference System with our Pure Resonance in-ceiling speaker array, Rolls power amplifier and Listen Techs assisted listening system further enhances the meeting experience for all conference participants, resulting in more stimulating, more creative and ultimately more productive meetings. The system is extremely versatile and therefore ideal for a wide variety of uses, from small organizations to multinational corporations and from local, regional and national governments to international summits.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

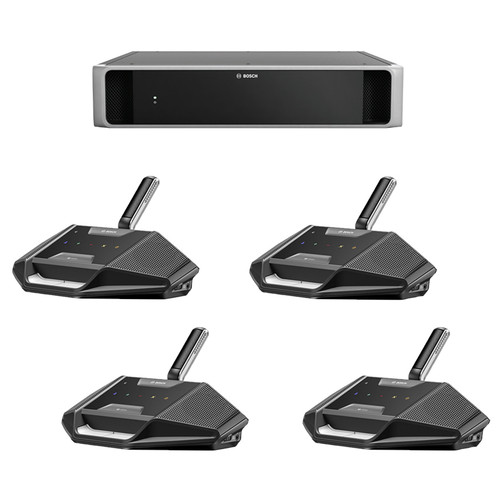

DICENTIS Conference System

This DICENTIS Conference System with our Pure Resonance SD4 in-ceiling speaker array, Rolls RA170 power amplifier and Listen Techs LS-53-072 assisted listening system further enhances the meeting experience for all conference participants, resulting in more stimulating, more creative and ultimately more productive meetings. The system is extremely versatile and therefore ideal for a wide variety of uses, from small organizations to multinational corporations and from local, regional and national governments to international summits. The system is capable of connecting a network of up to 750 conference devices and seamlessly integrating with other systems sharing the same IP network such as video streams or content management systems. Equipped with advanced Bosch audio technology and cable redundancy, these stylish discussion devices continue the Bosch tradition of acoustic excellence and system reliability.

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Arrays

The SD Speaker employs (4 smaller 6.5") very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison these drivers produce clean powerful dynamic sound. When designing the SD the goal was to have the single most import feature at the forefront, good transient response ("dynamic contrast"). A transient is a sound of short duration, and good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction they provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers we increased the driver surface area while creating more punch and a tight, more focused low-end.

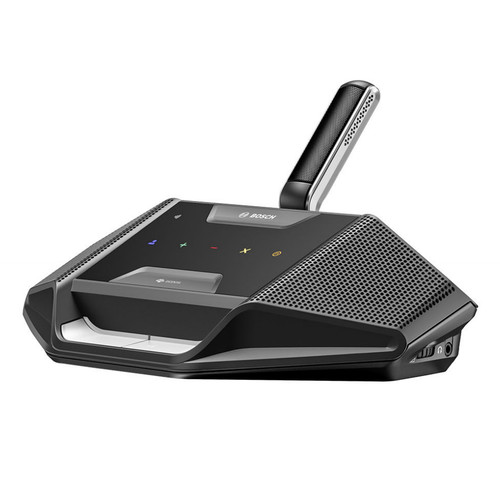

DICENTIS Discussion Device with Voting

The DICENTIS Discussion device with voting incorporates standard parliamentary-style voting facilities. The device identifies the user via a built–in NFC (Near Field Communication) card reader and enables quick and easy voting via colored voting touch buttons that only light up when the functionality is required. Even secret voting is possible.

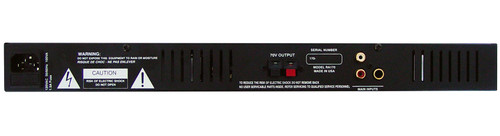

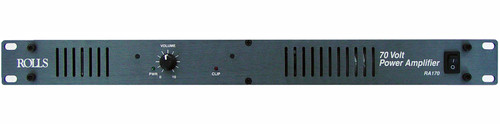

Rolls RA170 Power Amplifier

The Rolls RA170 Power Amplifier was designed especially for the installation contractor. The RA170 is a single rack-space, mono unit with a choice of an RCA or 1/4" unbalanced input. The 70 volt speaker outputs are provided via spring-loaded terminals - no transformer is required for speaker connection. The front panel includes a Power indicator LED, a Volume control and two Clip LEDs which indicate circuitry overload. The output circuitry is protected from momentary shorting and excessive load by a specially designed protective circuit.

Listen Tech LS-53-072 iDSP Prime Level I Stationary RF System

The Listen Tech LS-53-072 iDSP Prime Level I Stationary RF System comes equipped with the LR-4200-072 receiver, Listen's new generation of personal listening products, and iDSP or Intelligent Digital Signal Processing. The iDSP 72MHz receiver revolutionizes how an RF system works, offering precise clarity with 20 dB less hiss than other RF receivers. The new integrated neck loop improves the experience for people who have hearing aids and cochlear implants with telecoils. Sleek and small, the iDSP receiver has a field replaceable, non-proprietary rechargeable lithium-ion battery, making obsolete the use of alkaline and NiMH batteries. Battery life is eight hours, with a 2.5-hour charge time. The result is an innovative personal listening technology and solution that delivers an exceptional listening experience for end users and an optimal experience for the venues that provide listening devices. Venues will find this system ideal when the receiver channel is not changed regularly by the user, locking on one channel is needed, but programming multiple channels are not, and for applications like: assistive listening, single channel language interpretation, and personal use. The included integrated neck loop/lanyard and signage ensures the system meets the minimum legislative requirements for venues with a capacity up to 100. Telescoping antenna gives smaller venues the option for using the transmitter within a 700 ft. (213.4 m) range.

Benefits

No matter how your organization changes, your DICENTIS Conference System will adapt to answer your evolving needs

Open platform based on the OMNEO media networking architecture for system flexibility and cost-effective installation and maintenance.
Easy integration with supporting systems to provide features such as automatic camera control.
License-based expandability for a future-proof system that can easily take on new functionality.
Optimized user experience to maximize meeting efficiency.
Mixed and customized setup of conference devices to best answer the organization’s unique needs.
Cable and power supply redundancy to ensure meetings are held without system interruption.
Secure encryption of all audio and control data running through the system to protect against tampering and unauthorized access.

The DICENTIS conference devices support maximum meeting efficiency. All have been designed with industry-leading features to meet the highest quality standards

High Directive Microphone and intelligent Acoustic Feedback Suppression ensure crystal clear speech reproduction.
Loudspeaker and microphone can be active simultaneously to provide excellent speech intelligibility.
Conference devices with optimal ergonomic design.
Advanced discussion functionalities, such as the "Possible to speak" indicator, to immediately engage in the discussion when the function is available.

Features

Features

IP Based Conference Solution

First IP-based conference system built on the OMNEO media networking architecture
Multimedia devices based on a version of the Android™ operating system for operation of third-party or custom-made apps
Audio, video, meeting data and internet access on the multimedia device
Open platform for integrating diverse products into complete system solutions
Extremely scalable and flexible

Conference Devices

Intuitive user experience
Choice between 3 pluggable microphones: the High Directive, the Long Stem or Short Stem Microphone
Functional enhancements by adding software functionalities

Innovative Technologies for Outstanding Speech Intelligibility and Natural Sounds
