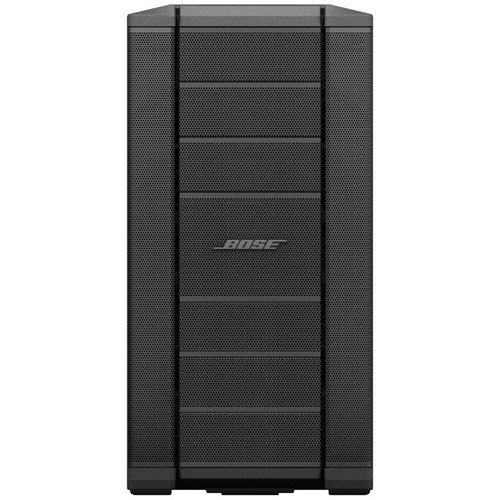

Bose F1 Model 812 Passive Flexible 1200W Array Loudspeaker
with Adjustable Coverage PatternsThe Bose® F1 Model 812 Passive Flexible Array loudspeaker is a small-format, full-range sound reinforcement loudspeaker with FLEX array technology, featuring four field-selectable sound coverage patterns: Straight, C, J, and Reverse-J. The flexible array shape is easily snapped into place on-site, allowing installers to direct sound energy to listeners and away from wall and ceiling surfaces. This improved directivity means less reverberation and more SPL in the audience area, which is especially helpful in live music applications. For installers, mounting is easier because the loudspeaker is more adaptable to the venue, with less compromise on mounting location or visual appearance.

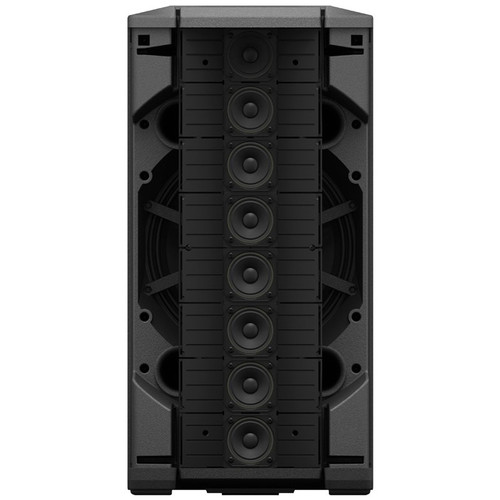

The F1 Model 812 Passive loudspeaker features a nine-transducer full-range design, including a flexible mid/ high array using eight 2.25" drivers, a 100-degree horizontal waveguide, and one high-excursion 12" woofer. Loudspeaker EQ is required and available using the presets provided by any Bose ControlSpace® processor or PowerMatch® amplifier.
- Features
Features
- FLEX array: Bose® exclusive flexible baffle can be configured into four unique shapes, allowing you to choose the best possible coverage pattern for the application
- Eight-driver mid/high line array: Eight vertically mounted drivers, each mounted on a custom waveguide, help deliver wide, consistent coverage
- 12-inch LF driver: High-performance woofer provides strong low-frequency output
- 127 dB peak SPL: For sound-reinforcement and foreground music
- 43 Hz - 20 kHz frequency range: Eliminates need for subwoofers for moderate full-range music levels
- Rugged enclosure: With six M8 threaded insert points that can be combined with a full suite of optional mounting accessories.

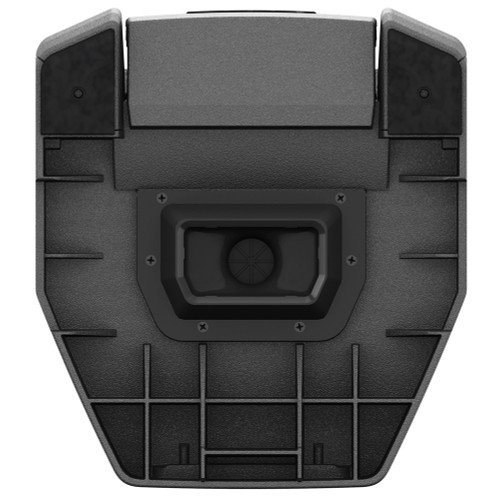

- Integrated pole mount: For use with standard tripod speaker stands
- Requires active equalization
- Specification
System Performance System Type Two-way Frequency Response (±3 dB) 52 Hz - 16 kHz Frequency Range (–10 dB) 43 Hz - 20 kHz Nominal Dispersion 100° H x 40° V (C-position) Maximum SPL @ 1 m 121 dB SPL (127 dB SPL peak) Sensitivity (SPL / 1 W @ 1 m) 94 dB SPL Long-Term Power Handling 300 W (1200 W peak) Nominal Impedance 8Ω Tranducers Driver Compliment 8 x 2.25" mid-high drivers; 1 x 12" LF driver Physical Connectors (2) Parallel-wired NL4 Neutrik® Speakon® connectors, four-terminal barrier strip up to 12 gauge speaker wire Suspension/Mounting 6 x M8 threaded inserts, 1 x 1-3/8" (35 mm) pole mount Enclosure High impact composite materials Grille Powder-coated perforated steel grille Dimensions (H x W x D) 26.1" (664.66 mm) x 13.1" (334.3 mm) x 14.6" (372.5 mm) Weight 47 lbs (21.31 kg) - Documents
