Bose FreeSpace DS 16S Loudspeaker 8 Ohm 70/100V - Black (Discontinued)
Part # 40783
Model # DS 16S

The Bose® FreeSpace® DS 16S is entry-level, full-range, surface-mount loudspeakers designed for background music and speech reproduction in a wide range of installed applications.

Availability: No Longer Available - Email For Replacement Options [email protected] Get Friendly Help Fast!

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Bose® FreeSpace® DS 16S is an entry-level member of the DS loudspeaker family. They are high-performance, full-range, surface-mount loudspeakers designed for background music and speech reproduction in a wide range of installed applications. Both feature a broad 170° x 160° coverage pattern and frequency response down to 80 Hz.

Features

Features

  • Full-range loudspeaker with a single 2.25" (57 mm) full-range driver in a ported enclosure designed for surface mounting in background music and paging applications
  • Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated into the same system and maintain consistent tonal quality
  • Can be combined with either surface or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
  • Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes
Specification
System Performance
Frequency Response (+/-3 dB)95 Hz - 17 kHz
Frequency Range (-10 dB)80 Hz - 19 kHz
Nominal Dispersion170° H x 160° V
Recommended High-Pass Filter80 Hz high-pass filter
Loudspeaker EQRecommended
Long-Term Power Handling16W (64W peak)
Sensitivity (SPL / 1W @ 1 m)84 dB SPL
Maximum SPL @ 1 m96 dB SPL (102 dB SPL peak)
Nominal Impedance8 Ω (transformer bypassed)
Transformer Taps (70/100V)70V: 1W, 2W, 4W, 8W, 16W
100V: 2W, 4W, 8W, 16W
Transducers
Driver Compliment2.25" (57 mm) full-range driver
Physical
EnclosurePC/ABS (white), polypropylene (black); textured
GrillePowder-coated steel grille
EnvironmentalIndoor use only

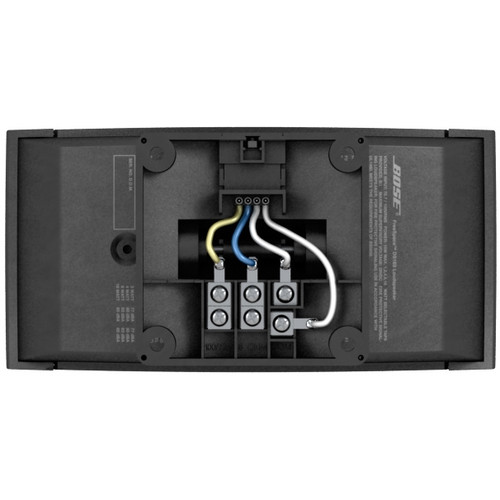

ConnectorsThree-terminal barrier strip integrated on included mounting bracket. Optional accessories available for use when ceramic connector and thermal fuse are required. Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)

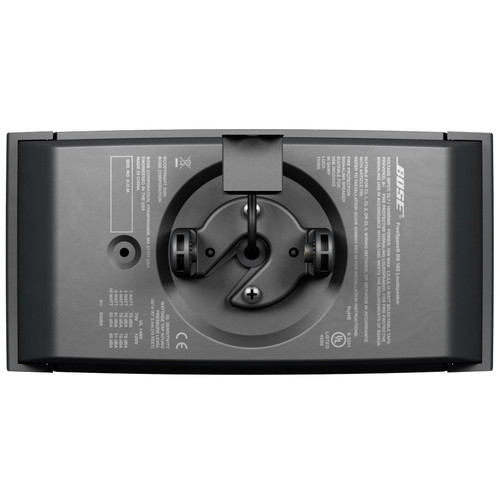

Suspension / MountingIncluded bracket allows for horizontal or vertical mounting positions, each with either pitch or yaw adjustment. Hole on rear of enclosure sized for #8 or M4 self-tapping screw for use with safety chain
Dimensions (H x W x D)4.9" (124 mm) x 9.9" (250 mm) x 4.6" (117 mm)
Depth with wall mount bracket: 6.4" (161 mm)
Net Weight4 lbs (1.8 kg)
Shipping Weight5.1 lbs (2.3 kg)
