- Description
Details

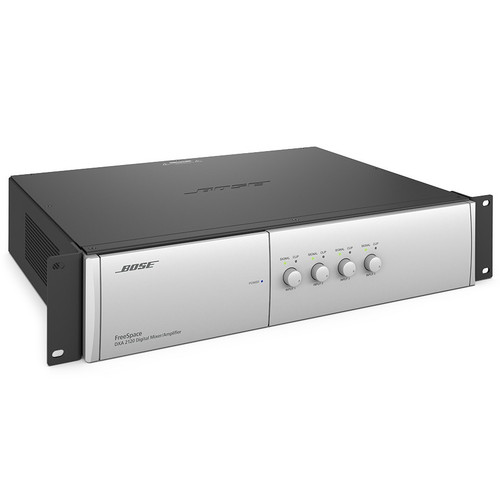

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.
The DXA 2120 digital mixer/amplifier can be used in both low- and high-impedance systems. Each of the two output channels delivers 120 watts at 4 ohms or 100 watts for 70/100-volt applications. An auxiliary output provides a line-level signal for system expansion. The DXA 2120 digital mixer/amplifier has six inputs – four mic/line inputs, one page input and one direct input that overrides all other sources when a signal is detected. The four mic/line inputs connect to sources via 3-pin Euroblock connectors or dual RCA jacks.
Three operating modes provide greater flexibility for installed music or speech applications:
- Mixer Mode – Each input can be routed to every output simultaneously. Volume for each input can be controlled independently, or a master volume can control both outputs simultaneously.
- Dual Mono Select Mode – Two input sources are available for each output channel. Volume control and source selection are available in each zone.
- Stereo Select Mode – Two selectable stereo sources can be played in stereo in a single output zone. Volume control and source selection are available in the zone.
The auxiliary output can be used with all three modes of operation.
Two user interfaces, volume control and volume control with A/B select, are available for operation from remote locations.
Designed for a wide range of applications, including:
- Conference centers
- Retail stores
- Restaurants and bars
- Hotel
- Lobbies and conference rooms
- Features
Features
- Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
- Two powered outputs that can operate at high or low impedance: 2 x 120W at 4 ohms, 2 x 65W at 8 ohms, or 2 x 100W at 70/100V
- Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode
- Easy setup and control via onboard controls – no computer needed
- DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
- Opti-voice® paging provides a smooth transition between music and announcements
- 24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems
- Specification
Frequency Response 40 Hz - 16 kHz (+0/-3 dB) Signal-to-Noise Ratio 75 dB (below rated power, A-weighted) THD ≤0.5 % (at full rated power) Channel Separation (Crosstalk) ≤-60 dBV (below rated power, 1 kHz) Dynamic Range 80 dB A/D and D/A Converters 24-bit Sample Rate 44.1 kHz LED Status Indicators Blue LED: power, Green LED: signal present, Red LED: clip Mains Voltage 100V version: 100 VAC; 50/60 Hz
120V/220-240 V version: 120 V/220-240 VAC; 50/60 HzAC Power Consumption Idle: 39W, Active: 350W Maximum Inrush Current 23.2 A @ 230V ~ 50 Hz
33.2 A @ 120V ~ 60 HzOverload Protection T6.3AL/250V (100V and 120V) or T3.15AL/250V (220-240V) DC Backup Power/Connector +24V (±1 %) Connector 2-terminal barrier strip Input Voltage Level +24V Minimum Input Power 50W Maximum Input Power 150W Amplifier Power 2 x 120W @ 4Ω, 2 x 65W at 8Ω, 2 x 100W @ 70/100V Operating Temperature 32 °F - 104 °F (0 °C - 40 °C) Storage Temperature -40 °F - 158 °F (-40 °C - 70 °C) Humidity 40 % - 90 % relative humidity Dimensions (H x W x D) 3.5" (90 mm) x 16.5" (420 mm) x 13.8" (349 mm) Net Weight 32 lbs (14.4 kg) Shipping Weight 40 lbs (18.1 kg) - Documents
