This Bose Hotel Sound System covers 5,000 sq ft. and can be expanded beyond that for further coverage. Any audio source such as a laptop, iPod, iPad, XM Radio, or a simple CD player can be used. The system can be easily expanded for more coverage and control over separate zones and paging.

The Bose® FreeSpace® DS 16F is the entry-level member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. The DS 16F features a wide, even 140° conical pattern and frequency range down to 80 Hz.

For background/foreground music and paging applications, Bose® FreeSpace® IZA 2120-HZ integrated zone amplifier elevates the audio experience when using FreeSpace® loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-voice® paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

The Bose® ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace® and ControlSpace® products.

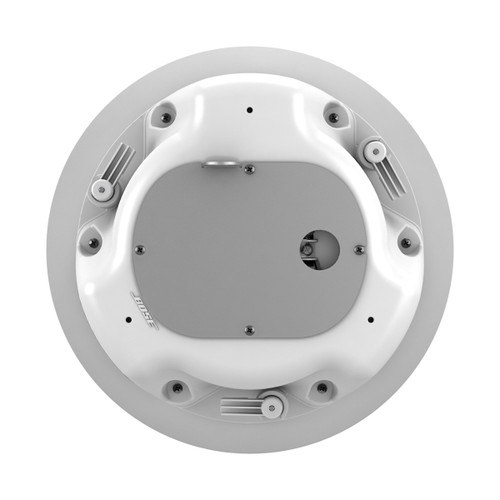

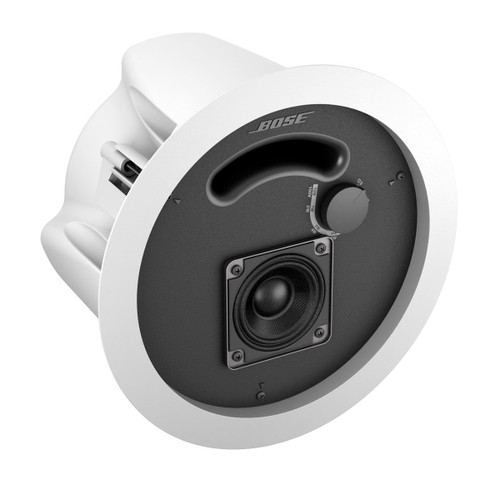

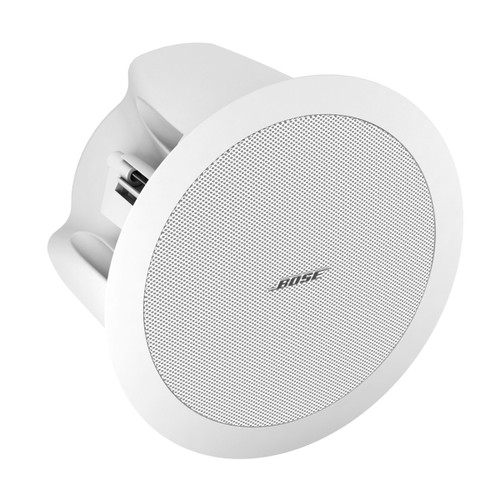

Bose DS 16F Freespace In-Ceiling Loudspeakers:

• Full-range ceiling loudspeaker with a single 2.25" (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
• Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
• Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
• Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
• Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille



Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier:

• True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
• Opti-voice® paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
• Dynamic EQ ensures full and balanced music at any volume level
• Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose® loudspeakers: FreeSpace® 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
• Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
• Expansion-ready connectivity with FreeSpace ZA amplifiers to drive additional zones
• Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
• Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
• Auto-Standby feature allows the amplifier to consume less power when not in use
• Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
• Remote muting allows the amplifier to be muted via a centralized control system

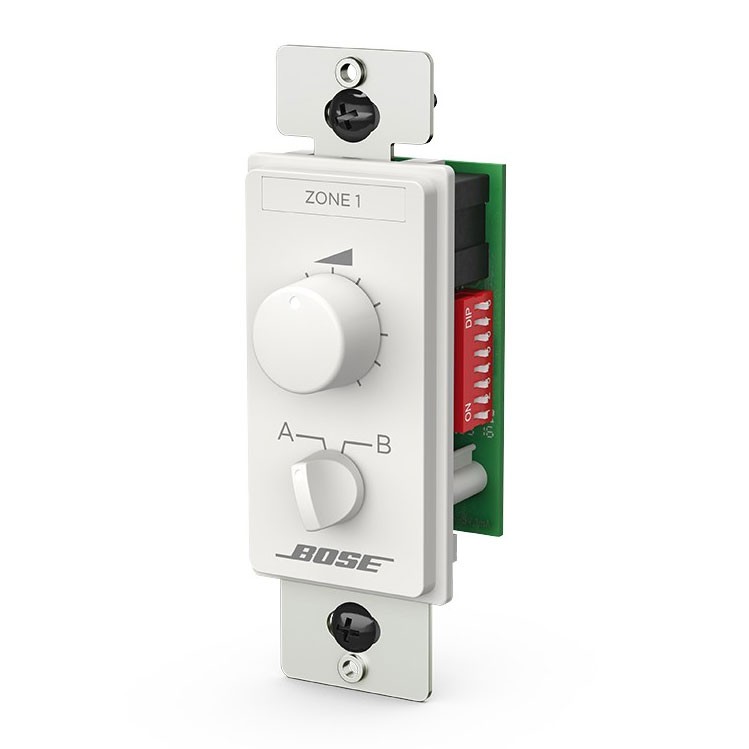

Bose® ControlCenter CC-2 Zone Controllers:

• The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors
• Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling

• (16) Bose® FreeSpace® DS 16F In-Ceiling Loudspeakers
• (1) Bose® FreeSpace® IZA 2120-HZ Integrated Zone Amplifier
• (2) Bose® ControlCenter CC-2 Zone Controllers
• (16) Bose® FreeSpace® Model 16 Tile Bridges
• 1000' West Penn 225 Audio Speaker Cable
