Hotel Sound System with 30 In-Ceiling Speakers and Integrated Zone Amplifier for Background Music

This Bose hotel sound system covers 10,000 sq ft. and can be expanded beyond that for further coverage. Any audio source such as a laptop, iPod, iPad, XM Radio, or a simple CD player can be used. The system can be easily expanded for more coverage and control over separate zones and paging.

The Bose® FreeSpace® DS 16F is a high-performance, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. The DS 16F features a wide, even 140° conical pattern and frequency range down to 80 Hz.

For background/foreground music and paging applications, the Bose® FreeSpace® IZA 2120-HZ integrated zone amplifier elevates the audio experience when using FreeSpace® loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-voice® paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

The Bose ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace and ControlSpace products.

Bose DS 16S FreeSpace Loudspeakers:

• Clear, intelligible music and speech reproduction
• Full-range response from 90 Hz – 16 kHz
• 170°H x 160°V coverage pattern (loudspeakers mounted horizontally)
• Single 2.25" (57mm) full-range driver
• Simple 1-2-3 installation
• Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw (up to 30°)
• Indoor (DS 16S) and outdoor (DS 16SE) versions
• Integrated multi-tap transformer provides easy-to-change tap settings without tools: 70V – 1W, 2W, 4W, 8W, 16W or 100V – 2W, 4W, 8W, 16W
• Can be used as an 8Ω, 16W loudspeaker
• Can be combined with the FreeSpace Model 16 ceiling-mount loudspeaker on the same line
• Contemporary styling; available in black or white and can be painted
• Listed to ANSI/UL 1480-2005 - CE mark



Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier:

• True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
• Opti-voice® paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
• Dynamic EQ ensures full and balanced music at any volume level
• Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose® loudspeakers: FreeSpace® 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
• Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
• Expansion-ready connectivity with FreeSpace ZA amplifiers to drive additional zones
• Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
• Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
• Auto-Standby feature allows the amplifier to consume less power when not in use
• Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
• Remote muting allows the amplifier to be muted via a centralized control system

• (30) Bose FreeSpace DS 16F In-Ceiling Loudspeakers
• (1) Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier
• (2) Bose ControlCenter CC-2 Zone Controllers
• (30) Bose FreeSpace Model 16 Tile Bridges

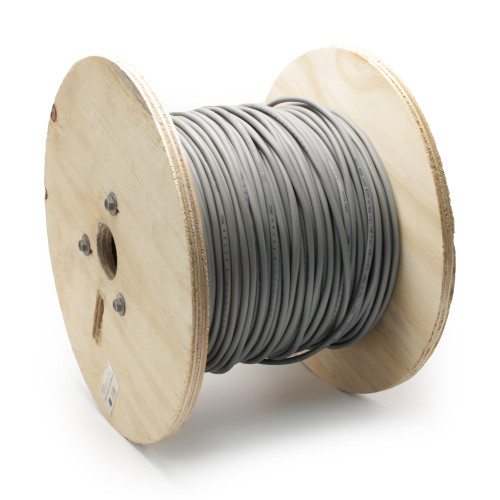

• (2000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
