Inside the Design

This Bose retail store sound system is ideal for medium to large coverage areas and can easily be expanded for further coverage and control over separate zones and paging to enhance your customers' shopping experience so they'll want to return again and again. The Bose ceiling-mount FS4CE speakers are designed for high-quality performance in background music and voice announcement applications and are also iP55 rated for outdoor installations. The Bose FreeSpace IZA 2120-HZ amplifier features selectable Loudspeaker EQ to enrich the audio quality and features Opti-voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level. If paging is needed, just add a paging microphone, not included, or integrate into your telephone system.

Sound System Features:

• Perfect for indoor/outdoor retail applications with excellent sound quality
• 70V commercial sound system with Bose professional high-performance products
• All speakers are suitable for use outdoors or in wet locations and are UV fade resistant
• Integrated two-zone amplifier elevates the audio experience in background/foreground music and paging applications
• Paging capable by adding a microphone (sold separately) or by connecting to your telephone system
• Easy to install and operate with lifetime technical support from our talented staff

About the System Components

This Pro Acoustics designed retail store background music sound system includes twelve Bose FreeSpace FS4CE 4.5" outdoor rated ceiling loudspeakers with adjustable tile bridges, a Bose FreeSpace IZA 2120-HZ integrated zone amplifier, two Bose ControlCenter CC-2 zone wall controllers and 1000' of 225 16/2 non-plenum speaker wire.

Not sure if this is the right Retail Store Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

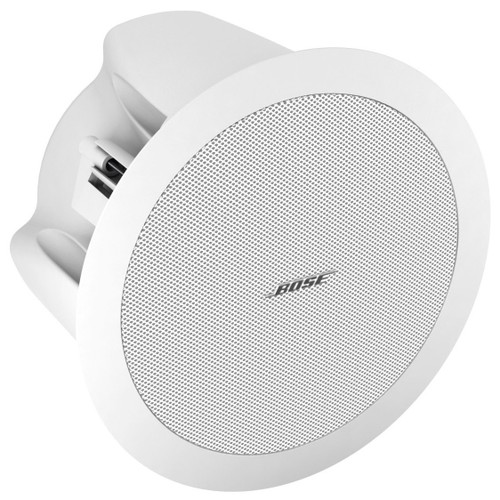

Bose FreeSpace FS4CE 4.5" Ceiling Loudspeakers:

• Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
• Front baffle-mounted tap settings and front-baffle audio connections
• Handles the weather, designed for outdoor wet installation
• Maintain consistent tonal quality with shared voicing across all FS models
• Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
• Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
• Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
• Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
• Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

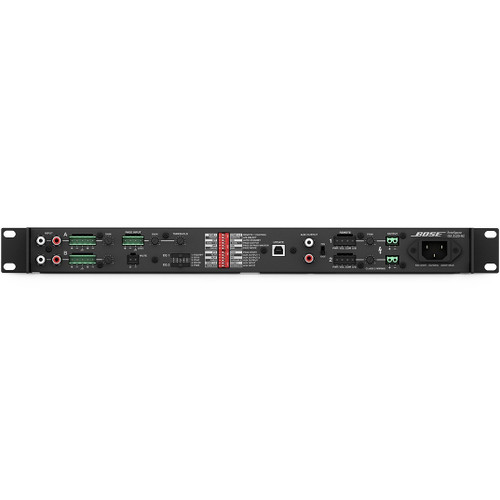

Bose FreeSpace IZA 2120-HZ Zone Amplifier:

• True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
• Opti-voice paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
• Dynamic EQ ensures full and balanced music at any volume level
• Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose loudspeakers: FreeSpace 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
• Dual remotes support optional volume/source selection for independent or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
• Expansion-ready connectivity with FreeSpace ZA amplifiers to drive additional zones
• Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
• Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
• Auto-Standby feature allows the amplifier to consume less power when not in use
• Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
• Remote muting allows the amplifier to be muted via a centralized control system

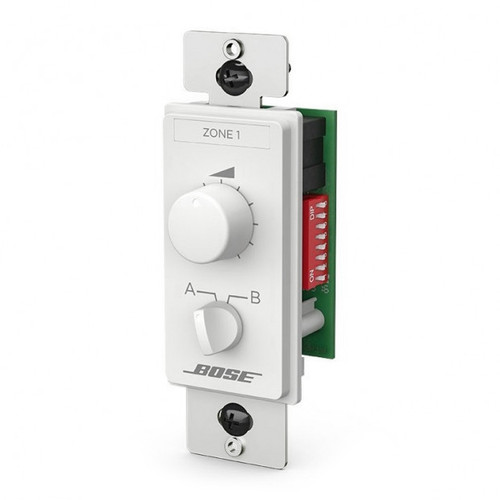

Bose ControlCenter CC-2 Zone Controllers:

• The ControlCenter series is a set of remote controls for use with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors
• Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling

• (12) Bose FreeSpace FS4CE 4.5" Ceiling Loudspeakers

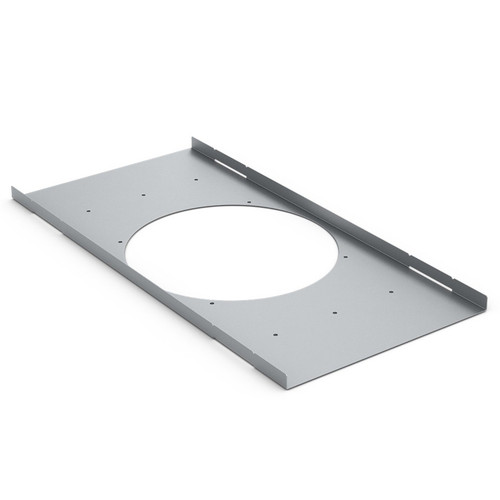

• (12) Bose FreeSpace FS4CE Adjustable Tile Bridges
• (1) Bose FreeSpace IZA 2120-HZ Zone Amplifier
• (2) Bose ControlCenter CC-2 Zone Controllers
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
