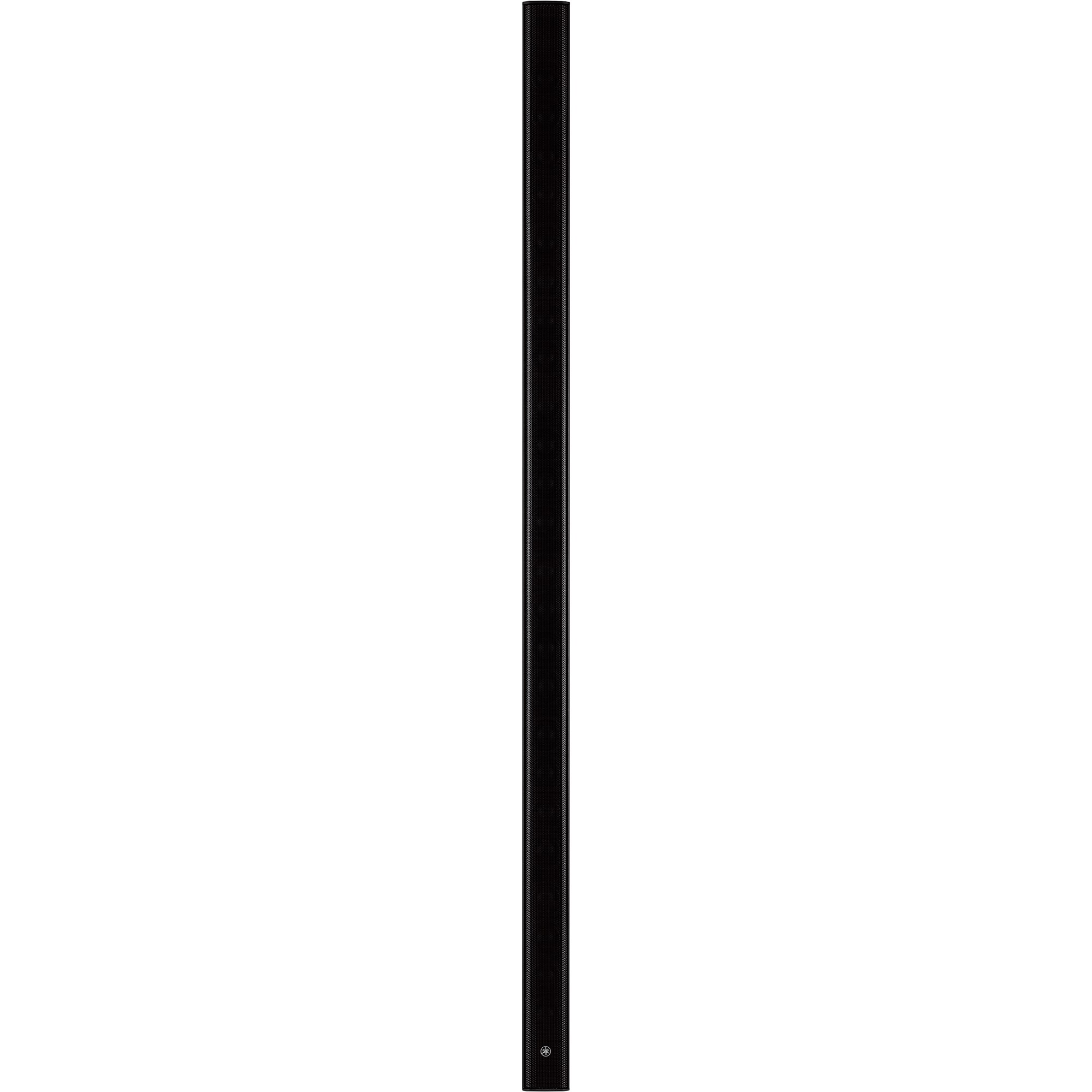

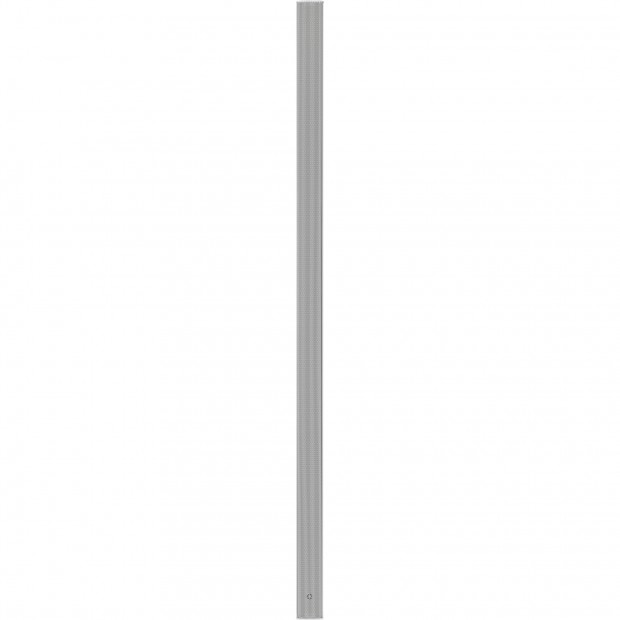

Yamaha VXL1-24 Slim Column Array Loudspeaker
Part # VXL1B-24
Model # VXL1-24

The Yamaha VXL1-24 is a compact slim column array loudspeaker with 24 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions – anywhere high-quality audio and pattern control is needed.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $1,070.99

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The VXL1-24 is a compact slim column array loudspeaker with 24 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions –anywhere high-quality audio and pattern control is needed. It's slim and sleek design with both black and white exterior options, blends seamlessly into the surrounding interior design.

It features both 20 and 30-degrees of vertical coverage that can be easily changed by a single switch on the back of the loudspeaker. It can also be adjusted for flexible coverage – multiple units can be connected vertically for deeper coverage, or connected next to each other to create a very tight horizontal dispersion array.

Features

Features

  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 170° horizontal dispersion for uniform SPL over a wide listening area
  • Vertical coverage can be selected as 20° (Standard) or 40° (Wide)
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match the surroundings
  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs
Specification
Frequency Range (-10dB)77 Hz – 20 kHz
Coverage AreaHorizontal: 170°, Vertical: 20°( +10° – -10°) (NORMAL), 40°(+10° – -30°) (WIDE)
Drivers(24) 1.5" (3.75 cm) cone
Power RatingNoise: 110W
PGM: 220W
Peak: 440W
Nominal Impedance
I/O ConnectorsEuroblock (2 pin) x 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
IP-RatingDust and water resistant : IP35
Dimensions (H x W x D)47.7" (1212 mm) x 2.1" (54 mm) x 4.1" (104 mm)
Weight12.1 lbs (5.5 kg)
