Conference Room Sound System with 6 Bose EdgeMax Premium In-Ceiling Loudspeakers with Wireless Microphone System
Part # CFSS-4EM902EM180AA200PHD
Model # CFSS-4EM902EM180AA200PHD

This Bose EdgeMax™ conference room sound system features the Professional EdgeMax™ EM90 and EM180 in-ceiling premium loudspeakers with proprietary Bose PhaseGuide® technology to create room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models.

Availability: In Stock and Ready to Ship!

Description

Details

Bose EdgeMax™ Conference Room Sound System

This Bose conference room sound system includes 4 Bose EdgeMax™ EM90 and 2 EdgeMax™ EM180 in-ceiling premium loudspeakers with proprietary Bose PhaseGuide® technology to create room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. This meeting room system also includes an Atlas Sound AA200PHD 200W mixer/amplifier, a Samson Concert 288 all-in-one dual-channel wireless system perfect for any presentation, and speaker wire to complete your system.

For maximum coverage, the unique Bose EdgeMax™ speakers should be spaced approximately 30 feet apart and are ideal for ceilings up to 14 feet.

Bose EdgeMax™ Premium In-Ceiling Loudspeakers

The Bose EdgeMax™ EM90 and EM180 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology to create a category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax™ loudspeakers provide improved audio quality and coverage, while reducing the number of required units. Bose Professional EdgeMax™ Premium In-Ceiling Speakers are ideal for applications such as retail stores, restaurants, hospitality venues, hotels, offices, meeting rooms and architectural custom sound design applications. They feature magnetically attached white grilles for quick access to wiring, and 8Ω or 70/100V transformer tap settings, as well as auto-hold, spring-loaded mounting arms for fast and easy installations, and they ship with an accompanying tile bridge. They are UL1480 listed for air-handling plenum space code requirements.

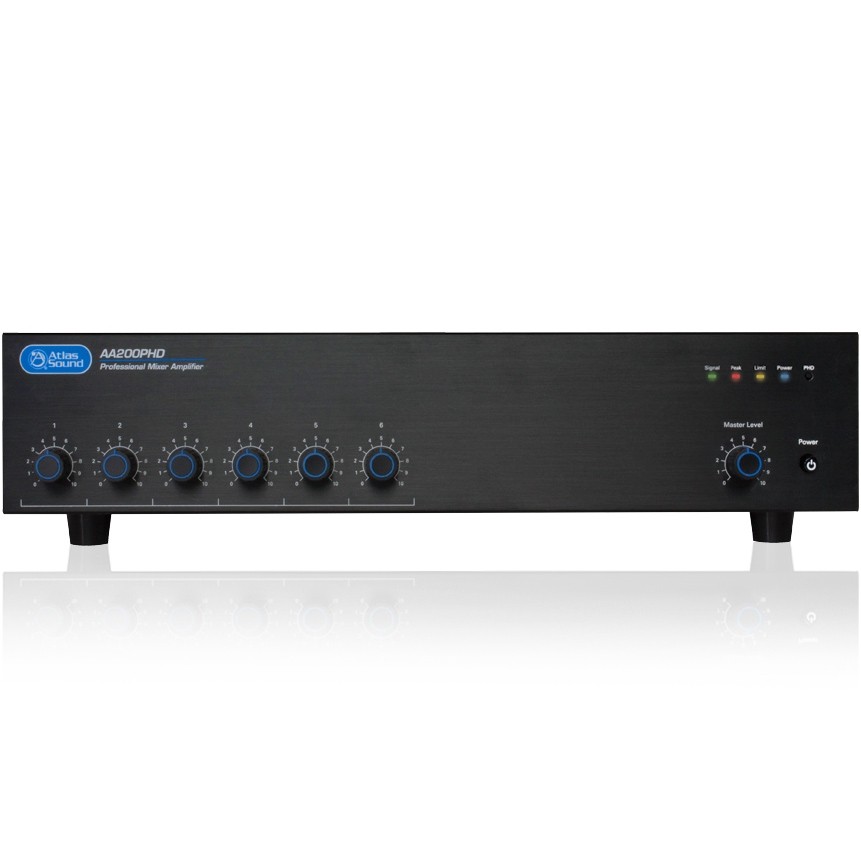

Atlas Sound AA200PHD 200 Watt Mixer Amplifier

The Atlas Sound AA200PHD is a 200 Watt, 6-Input Mixer Amplifier that is specifically designed for use in 70.7V speaker systems. The AA200PHD features a unique automatic system test using the front panel "Push Here Diagnostic" button. This internal circuitry is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts. This allows for quick troubleshooting on site and after the sale. Additionally, the AA200PHD incorporates a Remote Input Selection feature that allows the user to select an input and control the volume level from an optional remote wall plate, model WPD-RISRL, that can be placed up to 200-feet away from the amplifier. This unit also includes an ultra low noise floor, allowing it to deliver exceptional sound quality.

Samson Concert 288 All-In-One Dual Channel Wireless System

Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound, it’s the ideal high-performance UHF wireless solution for vocal performances, presentations, Q&A sessions, house of worship, educational applications and more where two users are needed. The dual-channel, frequency-agile Concert 288 All-In-One provides a best-in-class 300’ wireless range and can support the simultaneous operation of up to 24 systems/48 performers (region dependent). The system’s rack-mountable CR288 Wireless Receiver utilizes a true diversity, dual-antenna design to avoid dropouts. To reduce interference, the CR288 offers 32 selectable frequency options between the two performers. Tone Key technology further prevents stray RF interference from affecting performance. The CR288 provides fast and easy setup with IR technology that wirelessly matches the operating channels of the transmitters to the receiver, as well as a dual 7-segment LED to monitor the channels. The Concert 288 All-In-One features a CH288 Handheld Transmitter with a Q6 Dynamic Microphone capsule, as well as a CB288 Beltpack Transmitter. To pair with the CB288, system also includes both an LM5 Lavalier Microphone and an HS5 Headset Microphone (both with locking connectors). These mic options bring maximum versatility to any dual-user application, particularly duet performances, as well as audience participation and interview situations. The transmitters, which can operate for up to eight hours on two AA batteries each, are engineered to the finest detail to provide the ultimate in sound reproduction.

Features

Features

Bose EdgeMax EM90 and EM180 In-Ceiling Loudspeakers:

  • PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound
  • EdgeMax EM90 provides nominal 90° horizontal coverage from room corners
  • EdgeMax EM180 provides nominal 180° horizontal coverage from center ceiling-wall locations
  • Full-frequency range 60 – 18,000 Hz (-10 dB)
  • Maximum SPL up to 119 dB continuous and 125 dB peak
  • 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
  • Passive crossover with 8 Ω or 70/100V transformer taps
  • New auto-hold, spring-loaded mounting arms for fast, easy installs; ships with tile bridge
  • UL1480 listing for air-handling (plenum) space installation
  • Magnetically attached white grille for quick access to wiring and tap settings
  • Black grilles and rough-in pan accessories available

Atlas Sound AA200PHD 200 Watt Mixer Amplifier:

  • 200W into 25V/70.7V and 4Ω Loads
  • Automated Diagnostic System Test (Push Here Diagnostic®)
  • Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
  • Input Assignable Zone 2 Output
  • Remote Level Control
  • Remote Input Select (RIS)
  • Line Output
  • Preamp In for External Processors
  • Variable Mute Sensitivity Control for Input 1
  • Contact Closure Mute Terminals
  • Optional Rack Mount Kit Available - Model AARMK2-0

Samson Concert 288 All-In-One Dual Channel Wireless System:

  • Dual-channel, high-performance UHF wireless system
  • 1/4" audio cable, AC adapter and rackmount kit included
  • Multiple frequency options for interference-free performance in any environment
  • Up to 24 systems can be operated simultaneously (region dependent)
  • Separate Volume controls for each wireless signal
  • Dual balanced XLR outputs for routing signals to two separate mixer channels
  • 1/4" unbalanced mix output to combine signals to one output channel
  • Q6 Dynamic Microphone capsules
  • Offers up to eight hours of battery life using two AA batteries
  • 300' operating range
System Includes

System Includes

  • (4) Bose EdgeMax EM90 In-Ceiling Loudspeakers with 90 Degree Coverage
  • (2) Bose EdgeMax EM180 In-Ceiling Loudspeakers with 180 Degree Coverage
  • (1) Atlas Sound AA200PHD 200W Mixer Amplifier
  • (1) Samson Concert 288 All-In-One Dual Channel Wireless System
  • (250') West Penn 225 Audio Speaker Cable
