Convenience Store Indoor Outdoor Sound System with 8 Atlas Sound Speakers and AA50PHD Mixer Amplifier
Part # RTSS-6SD72W2SM42TAA50PHD
Model # RTSS-6SD72W2SM42TAA50PHD

This general store sound system is designed for small applications that may require indoor and outdoor background music. This custom retail business audio system is perfect for gas stations, small convenience stores, general stores, corner stores, drug stores, pharmacies, and small markets or grocery stores.

Availability: In Stock and Ready to Ship!

Description

Details

Small Retail Store Sound System Solution for Convenience Stores and Gas Stations

This small retail business sound system solution is perfect for applications that may require indoor and outdoor background music. Providing clear audio at the gas pumps, parking lot or covered outdoor sitting areas, this easy to use BG (background) music system is custom designed for gas stations, small convenience stores, general stores, corner stores, drug stores, pharmacies, and small markets or grocery stores.

This pre-configured corner store sound system includes six Atlas Sound SD72W 8" in-ceiling speaker kits (with tile bridges and backcans), two Atlas Sound SM42T 4" weather resistant surface mount speakers, an Atlas Sound AA50PHD mixer amplifier and 500' of speaker wire.

This system was designed by our talented Pro Acoustics engineers and can be customized to meet your specific needs and budget.
Give us a call today! 1-888-256-4112.

 Atlas Sound SD72W 8" Dual Cone Speakers

The loudspeaker used in the SD72W is the next generation of Atlas high-performance cone loudspeakers, very similar to the preceding C-Series loudspeakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72W. The model SD72W is a dual cone, 25 watt 8" (205 mm) loudspeaker with a 10oz. (260 g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

 Atlas Sound SM42T 4" 2-Way Weather Resistant Speakers

All AtlasIED Strategy Series loudspeaker systems are designed to provide high fidelity, long life and installation convenience for commercial and residential applications. Because of their weather-resistant properties, they are perfect for use indoors or out. The SM42T includes a 4" woofer and 1" tweeter as well as an integrated 70.7V / 100V transformer and 8Ω bypass for direct coupled applications. Use surface-mount AtlasIED SM42T Series loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications, and houses of worship. Multi-position, C-shaped mounting bracket, and rugged construction provide optimum installation flexibility and assurance of long-term service.

 Atlas Sound AA50PHD 50W Mixer Amplifier

 The AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.

Features

Features

Atlas Sound SD72W 8" Dual Cone Speakers:

  • 10oz dual cone speaker provides familiar response & performance
  • Attractive CRS white powder coat baffle
  • Individually packaged for stocking & ordering convenience
  • Quality 5 watt-dual voltage transformer
  • ETL certified, safety listed to UL1480 and UL2043

Atlas Sound SM42T 4" 2-Way Weather Resistant Speakers:

  • 1" Ferrofluid™ Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
  • All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
  • Atlas Sound POLYGUARD™ High-Frequency Protection Circuit
  • Available in Black or White
  • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
  • Five-Year Warranty
  • Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
  • TRX WAVEGUIDE™- Constant Directivity Style High-Frequency Wave Guide System
  • Weather-Resistant Construction for Year-Round Indoor or Outdoor Use
  • OMNIMOUNT™ Compatible

Atlas Sound AA50PHD 50W Mixer Amplifier:

  • 50W into 25V/70.7V and 4Ω Loads
  • Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Preamp In for External Processors
  • Line Output
  • Remote Input Select (RIS)
  • Remote Level Control
  • Input Assignable Zone 2 Output
  • Two Unbalanced, Summing Line Level Inputs
  • Balanced Mic/Line/Tel Input w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic®)
System Includes

System Includes

  • (6) Atlas Sound SD72W 8" Dual Cone Speakers
  • (2) Atlas Sound SM42T 4" 2-Way Weather Resistant Speakers
  • (1) Atlas Sound AA50PHD 50W Mixer Amplifier
  • (6) Atlas Sound 81-8R 8" Round Hole T-Bar Bridges

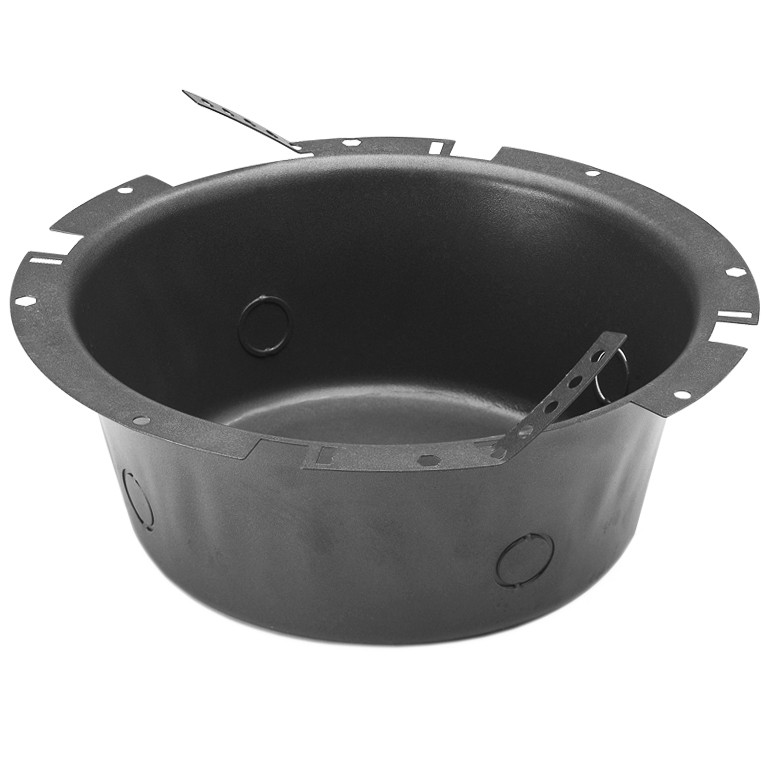

  • (6) Atlas Sound CS95-8 Enclosure 8" Recessed Ceiling Speaker Enclosures
  • (500') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
