- Description
Details

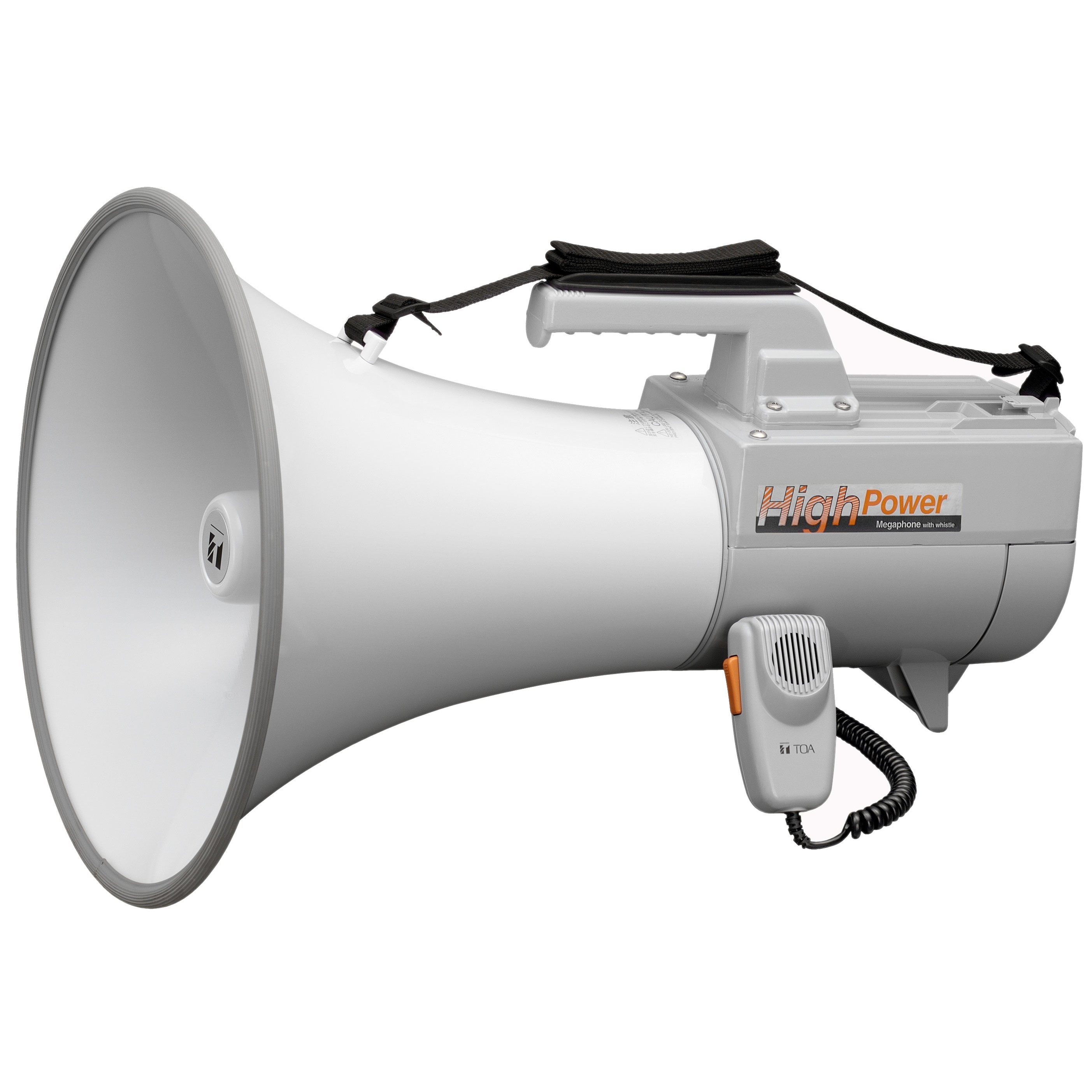

The ER-2230W is a shoulder megaphone having an EXT. mic input, AUX input, DC power input, battery meter and whistle function. It can be mounted to the optional ST-16 speaker stand. Its microphone assembly is germ-resistant treated. The newly developed polyimide diaphragm is employed to ensure high sound quality.
TOA portable power megaphones are available in different configurations to meet different user needs. Every model now has been treated for antibacterial properties to cope with use in multi-user environments. From light and compact configurations to high-performance shoulder-mounted types, TOA power megaphones offer exceptional reliability and performance. Models are available with resistance to water and humidity, meeting ISO splash-resistance guidelines. There are also other models for enhanced power output as well as a choice of a whistle or siren feature. The top-of-the-line shoulder types provide the greatest output power as well range, also incorporating status indicators as well as AUX input and ETX. mic input. In addition, wireless microphone connectivity is available on one model for more flexible use. Featuring rugged construction for speaker elements and horns, TOA power megaphones prove ideal for voice reinforcement in almost any situation.- Features
Features
- Detachable Hand-held Microphone with volume control and On/Off switch.
- Whistle function.
- Power Output: 30W Rated / 45W Max.
- 10 D batteries (17 hrs).
- Battery Life Indicator.
- Range: 800m (voice) / 1000m (whistle).
- Auxiliary Line Input.
- External Microphone Input.
- Anti-bacterial treatment for all models (mouthpiece/microphone and handle).
- High durability ABS or ASA resin construction.
- Compact and lightweight.
- Wide frequency range for enhanced audio quality.
- Neodymium magnets and Polyimide speaker diaphragms.
- Specification
Power Source Battery: R20P (D) x 10 (15V DC) External Power: 12V DC Battery Rated Output 30W Maximum Output 45W Battery Life Voice: Approx. 17 hours (JEITA)²,Whistle: Approx. 90 min (JEITA)² Audible Range Voice: Approx. 800m (JEITA)²,Whistle: Approx. 1000m (JEITA)² Signal Sound Whistle (1,600Hz to 2,400Hz) AUX Input Sensitivity –10dB¹ (300mV), 10kΩ (ø3.5 mini jack, stereo plug acceptable), volume control EXT Mic Input 600Ω, unbalanced, ø6.3 phone jack, volume control Anti-bacteria Treatment Microphone RemainingBattery Indication LED (also serves as a power indicator)Stereo ON: Normal use, Flashing: Batteries need replacement Dimensions 351 x 512mm Weight 8 lbs (3.6 kg) (without Microphone and Batteries)Microphone: 0.22 lbs (0.15 kg) - Reviews
