Soccer Field Sound System with 4 Community Outdoor Speakers, Crown Power Amplifier and Bluetooth Mixer
Part # SFSS-4R353896CDI2600
Model # SFSS-4R353896CDI2600

This outdoor soccer stadium sound system is designed for athletic fields where vocal clarity and coverage are essential. It's perfect for providing great musicality and excellent voice articulation for the seating area and on the field.


System Highlights:
- Budget: Under $9,500
- Crowd Size: Small | Medium | Large
- Music Quality: Good | Better | Best
- Bluetooth Wireless Streaming
- Wireless Handheld & Lapel Mic

Availability: Usually arrives in 12-16 business days

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Inside the Design

This powerful outdoor stadium sound system for soccer fields provides crystal clear music and announcements over a large area. This outdoor PA system for soccer fields comes with four Community 90° x 60° speakers for stadiums designed to withstand long-term exposure to tough, environmental conditions and to provide musical performance normally only associated with indoor loudspeakers. Also included is a Bluetooth mixer amplifier, a wireless handheld, lapel and headworn microphone with a 300' operating range for the field and a wired handheld microphone for the announcer. Ideal for applications such as soccer fields, soccer parks, lacrosse and other multi-sport complexes, this high output sound system will cover a crowd of more than 750. Gone are the days of incomprehensible speech and inadequate music systems, the spectators and players will be impressed with this great sounding high-output sound system for years to come.

Sound System Features:

  • Simple to operate and provides excellent musicality and vocal intelligibility
  • True Diversity wireless handheld and lapel microphone with 300' operating range
  • Long-lasting speakers that can withstand long-term exposure to tough, environmental conditions for years to come
  • Each loudspeaker provides wide 90° x 60° coverage and 130 dB SPL to provide audio throughout the field(s)
  • High-quality audio for announcements, play-by-plays, paging and music
  • Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
  • Bluetooth mixer amplifier to play music from any Bluetooth enabled device

About the System Components

Community R.35-3896 8" Weather Resistant Loudspeaker

The Community R.35-3896 8" three-way horn loaded loudspeaker is housed in the same size enclosure as the 10" R.35COAX. It has a triaxial 8" carbon ring cone loudspeaker featuring Community's exclusive MultiSource Waveguide technology which adeptly integrates the output from dual midrange compression drivers and a 1" exit HF compression driver into a single coherent source. Fully passive, it is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.

Crown CDi 2|600 DriveCore Power Amplifier

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from their flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 2|600 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.

ALESIS MULTIMIX 10 BLUETOOTH RACKMOUNT MIXER

The Alesis MultiMix 10 Wireless rackmount mixer is redefining the rackmount mixer category. Compact and complete, the MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for smaller clubs and venues, houses of worship, as well as mobile/traveling systems.

Audix AP42 C210 Handheld and Lavalier Wireless System

The Audix AP42 C210 is a dual-channel wireless system combining the OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very cost-effective and efficient solution for combining the convenience of a hands-free lavalier with the flexibility of a handheld microphone. The package is ideal for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either in the audience or on stage.

System & Component Videos

Features

Features

Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers

  • Excellent musicality and intelligibility, low distortion, and high sensitivity and output
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • NeverWet™ treated grille and LF driver cones, polymer
  • HF and MR diaphragms, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated (DLPC) steel grille and low-profile yoke
  • Innovative MultiSource Waveguide™ (MSW) horn design for high frequency and dual midrange drivers
  • 200W autoformer (standard)

Crown CDi 2|600 DriveCore 2-Channel 2 x 600W Power Amplifier

  • DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design
  • Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network
  • DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration
    • Input Router
    • Input Delay – Up to 1000ms
    • Input Parametric EQ – 8 band
    • Crossover
    • Output Parametric EQ – 8 band
    • Output Delay – Up to 100ms
    • LevelMAX™ Limiter
  • Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications
  • Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface
  • GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port

Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer

  • Convenient front panel jacks add versatility
  • Space-saving 3U rackmount design is perfect for venues and mobile rigs
  • Bluetooth streaming with simple single-button pairing
  • Articulating Bluetooth antenna for optimum reception
  • 4 high-gain mic/line preamps with inserts
  • 2-band high and low shelving EQ on every channel
  • Pre-fader and post-fader aux sends; stereo aux return

Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System

  • R42 Two Channel Diversity Receiver:
  • 32 MHz wide-spectrum tuning receiver
  • 106 pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam
  • H60 OM2 Handheld Transmitter:
  • 64 MHz wide-spectrum transmitter with OM2 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries
  • B60 L10 Bodypack Transmitter:
  • 64 MHz wide-spectrum transmitter with ADX10 lavalier microphone
  • Durable metal housing
  • 14 Hour run time - AA batteries

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

  • Super heavy-duty housing
  • Built-in wind and breath "pop" noise filter
  • Ultra dependable quiet switch
  • Steel mesh grille
  • SwitchCraft connector
  • Frequency response tailored for vocals
  • Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Supplied with break-resistant stand adapter
  • Frequency response: 50 to 16,000 Hz
  • For outdoor and indoor events
System Includes

System Includes

  • (4) Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers
  • (1) Crown CDi 2|600 DriveCore 2-Channel 2 x 600W Power Amplifier
  • (1) Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer
  • (1) Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System
  • (1) Audix HT2 Heavy-Duty Headworn Vocal Microphone
  • (1) Pure Resonance Audio UC1S Vocal Microphone
  • (1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit

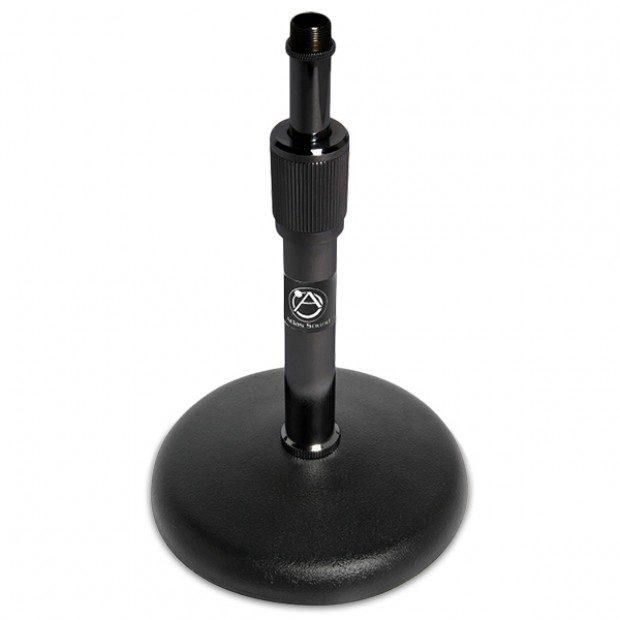

  • (1) Atlas Sound DS7E Desktop Mic Stand
  • (1) SKB 1SKB-R10U 10U Roto Rack
  • (1) Gator GRW-DRW3 3U Lockable Rack Drawer
  • (1) XLR to XLR Microphone Cable - 25ft
  • (2) CBI MLN-3 XLR Patch Cables - 3ft
  • (2) CBI BLA-3-PREP 1/4" TRS to Prepped Wire Patch Cables - 3ft
  • (500') West Penn AQ226 14/2 Aquaseal Fire-Alarm Speaker Wire
