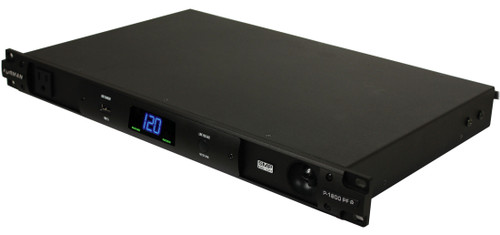

Furman P-1800 PF R Power Conditioner/Surge Suppressor
Part # P-1800 PFR
Model # P-1800 PF R

The Furman P-1800 PF R was engineered specifically for use with instrument amplifiers and other high-current equipment and offers a stable, protected and filtered low impedance power supply for maximum performance of connected electronics.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Engineered specifically for use with instrument amplifiers and other high-current equipment, the Furman P-1800 PF R offers a stable, protected and filtered low impedance powered supply for maximum performance of connected electronics. Furman's exclusive Power Factor provides a 45A peak current reservoir to minimize the detrimental effects of line impedance on high-current gear such as amplifiers and powered monitors. Clear Tone Technology provides additional line noise filtration tuned for instrument amplifiers for clean and consistent tone. Plus, equipment benefits from professional-level protection thanks to Furman's exclusive SMP and EVS technologies.

Your amp needs a lot of power to sound its best. If you’re plugging into the wall, there’s a good chance your amp is not going to get the current it needs when pushed. Furman’s exclusive Power Factor Technology provides a 45A peak current reservoir to give your amp the headroom it needs to operate at maximum efficiency. No matter what venue or club, or how close or far away from the power panel, Furman’s Power Factor Technology keeps your instrument amplifier’s tone consistent and sounding it’s best.

Clear Tone Technology works in unison with Power Factor Technology and Linear Filtering Technology to add an additional layer of AC noise filtration specifically engineered for instrument amplifiers. Clear Tone Technology provides tuned circuits that unveil instrument tone, harmonics, and clarity, resulting in a fuller sound and improved dynamic response.

Features

Features

  • Power Factor Technology
  • Surge Protection
  • Noise Filtration
  • Voltage Protection
  • Diagnostic Lights
  • Isolated Banks
  • Clear Tone Technology
  • Voltmeter
  • Wall Wart Spacing
  • 15 AMP Rating
  • Nine Total Outlets
  • BNC Lamp Connector
  • USB Charger
Specification
Maximum Current15 amps @ 124V
Line CordCaptive 3/14 AWG, 10 ft black cord with NEMA 15 plug
BNC Socket with Switch12VAC 500MA maxx (lamp not included)
Operating Voltage90 to 139 VAC
Over-Voltage Shutdown140 VAC Nominal
Spike Protection ModeLine to neutral, zero ground leakage
Spike Clamping Voltage188 VAC peak @ 3,000 Amps
Response Time1 nanosecond
Maximum Surge Current6,500 Amps
Noise Attenuation30 dB @ 2 kHz, 40 dB @ 10 kHz, 50 dB @ 20 kHz, 70 dB @ 100 kHz
Power Consumption8W
Reactive Power460 VA
Dimensions (H x W x D) 1.75" (44.5 mm) x 19" (483 mm) x 12" (305 mm)
Weight13 lbs (5.9 kg)
