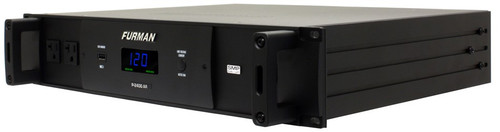

Furman P-2400 AR Voltage Regulator/Power Conditioner
Part # P-2400 AR
Model # P-2400 AR

The 20 amp Furman P-2400 AR delivers a stable 120V of AC power to protect equipment from problems caused by AC line voltage irregularities which can cause sensitive electronic equipment to malfunction or sustain damage.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.

Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

Features

Features

  • Furman’s exclusive SMP Technology provides the highest level of surge & spike protection available
  • LiFT offers linear AC power filtering to ensure clean power for unequaled audio & video clarity
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
  • True RMS Voltage Regulation delivers a stable 120V of AC power to protect equipment from problems caused by AC line voltage irregularities
  • Large LED voltmeter/ammeter displays incoming voltage and input current draw
  • Protection OK, Extreme Voltage and color-coded voltage range indicators provide information on power quality and operational status of unit
  • Front panel USB convenience outlet allows you to charge most media devices or power a USB lamp
  • Isolated outlet banks minimize inter-component interference and noise contamination
  • 20 amp rating featuring a high inrush magnetic circuit breaker for added protection
  • Fourteen total outlets (Twelve rear panel outlets and two front panel convenience outlets)
Specification
Maximum Current20 amps (De-rate 170mA/V for inputs less than 120VAC
Line CordCaptive 3/12 AWG, 10 FT, black cord with NEMA 20 plug
ReceptaclesTwo front panel 20A NEMA5-20R outlets
Twelve rear panel 20A NEMA5-20R outlets
Operating Voltage90 to 139 VAC
Over-Voltage Shutdown145 VAC Nominal
In Regulation Range97 to 137 VAC
Spike Protection ModeLine to neutral, zero ground leakage
Spike Clamping Voltage188 VAC peak @ 3,000 Amps
Response Time1 nanosecond
Maximum Surge Current6,500 Amps
Noise Attenuation10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Power Consumption13W
Dimensions (H x W x D)3.5" (89 mm) x 19" (483 mm) x 12" (305 mm)
Weight39 lbs (18 kg)
