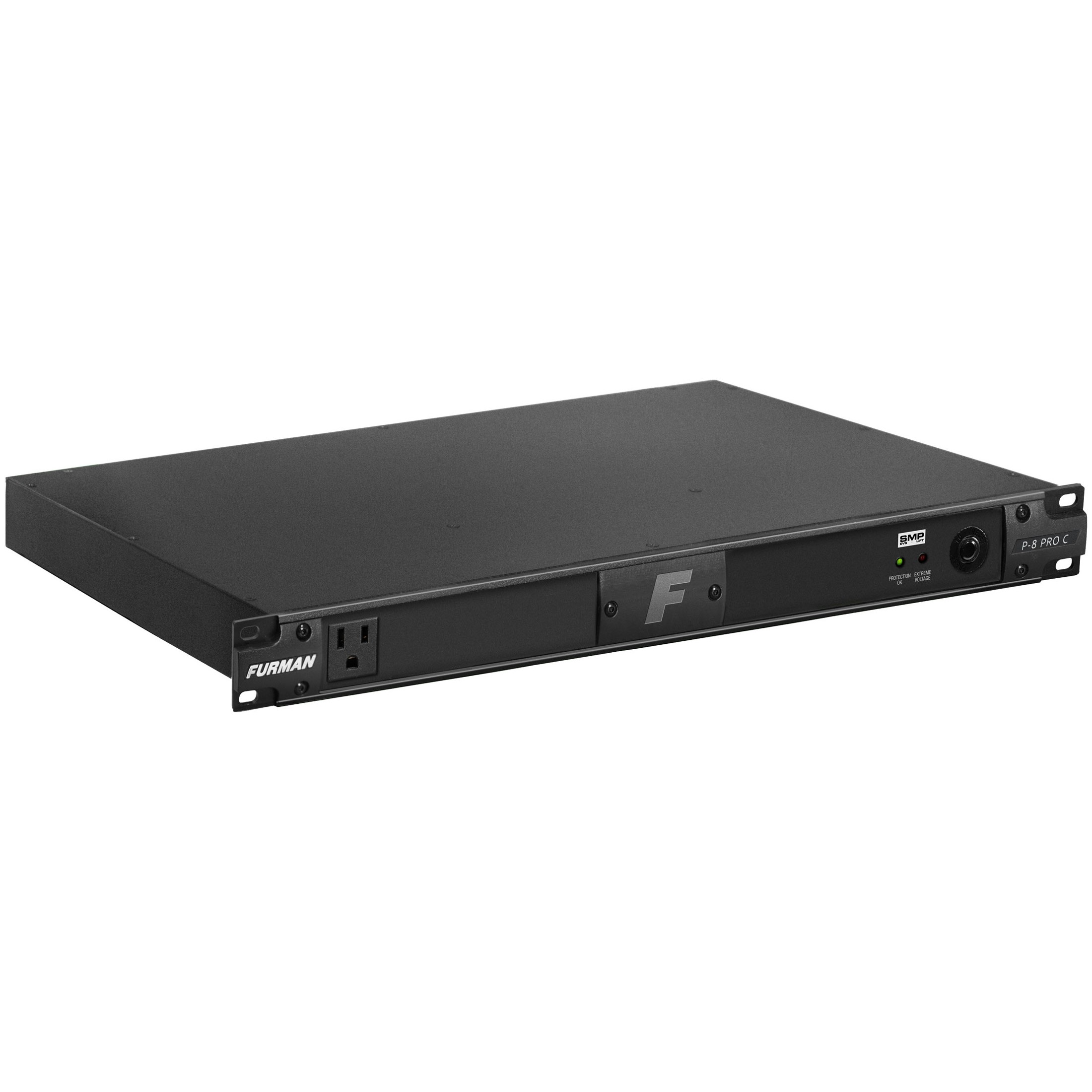

Furman P-8 PRO C Power Conditioner

Part # P-8 PRO C

Model # P-8 PRO C

The Furman P-8 PRO C Power Conditioner features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS) that make it one of the world's most advanced surge supressors.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

Features

Features

Surge Protection: Furman's exclusive SMP technology provides the highest level of surge & spike protection available
Noise Filtration: LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
Voltage Protection: Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
Diagnostic Lights: LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
Isolated Banks: Isolated outlet banks minimize inter-component interference and noise contamination
Wall Wart Spacing: Three widely spaced outlets accommodate bulky AC power transformers

Specification

Maximum Output Current	20 amps
BNC Socket with Switch	Rear rack lamp, 12VAC 500MA max (lamp not included)
Operating Voltage	90 to 140 VAC
Over Voltage Shutdown	140 VAC typically
Spike Protection Mode	Line to neutral, zero ground leakage
Spike Clamping Voltage	188 Vpk @ 3,000 Amps (133 VAC RMS)
Maximum Surge Current	6,500 Amps
Frequency	50/60Hz
Noise Attenuation	10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10MHz. Linear attenuation curve from 0.05 - 100 ohms line impedance
Power Consumption	12W
Safety Listing	CSA UL1449, CE, NRTL-C
Dimensions	1.75 (44.5 mm) x 19" (483 mm) x 10.5" (266.7 mm)
Weight	11 lbs (4.99 kg)
