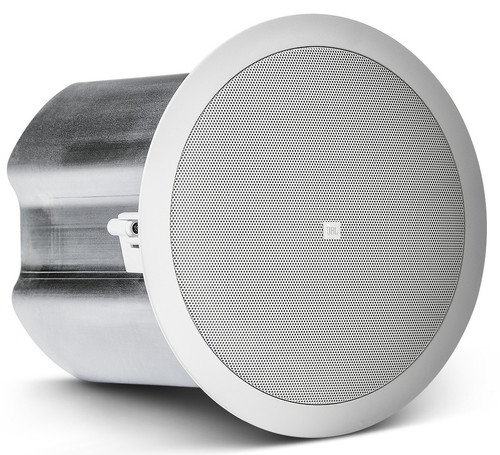

JBL Control 16C/T Compact 6.5" Ceiling Loudspeaker - Pair
Part # CONTROL 16C/T
Model # Control 16C/T-PAIR

The JBL Control 16C/T is designed to provide excellent sound quality for a wide variety of low to medium volume applications.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $312.00

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/ paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.

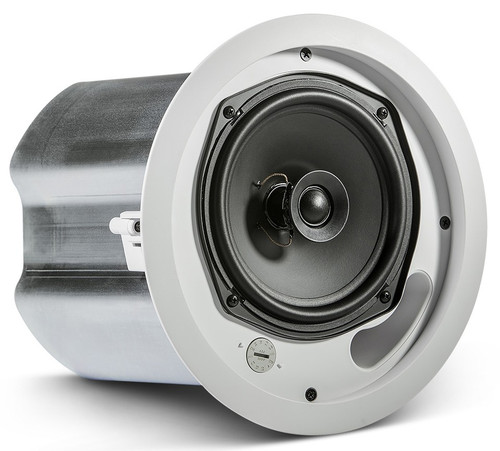

The high technology 6.5" low-frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high-temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides long-term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 0.75" high-frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high-frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.

The removable locking connector has screw terminals for secure wire termination and "loop through" terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.

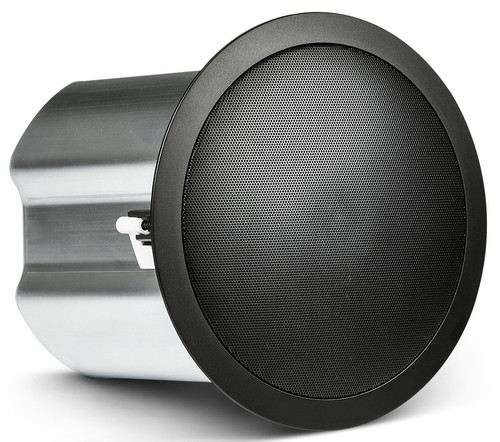

The Control 16C/T is available in colors white or black and is sold in pairs (all mounting hardware is included).

Features

Features

  • 6.5" High output driver with polypropylene cone and butyl rubber surround
  • 0.75" Soft-dome liquid-cooled tweeter

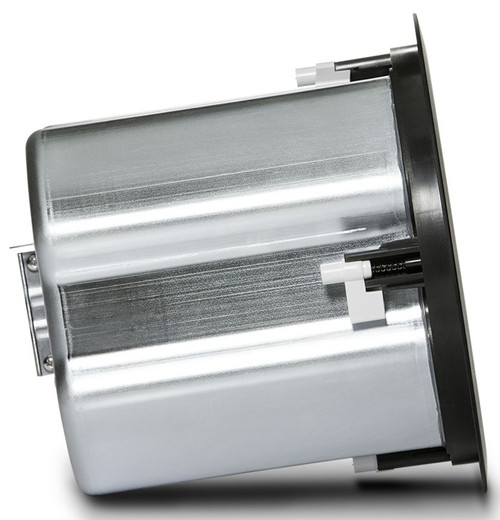

  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
  • 50 Watts at 8Ω nominal setting
  • 30 Watts multi-tap at 70V/100V
  • 62 Hz – 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL
  • Available in colors white or black
  • Sold in pairs (all mounting hardware included)
Specification
Frequency Range (-10 dB)62 Hz – 20 kHz
Power Capacity (at low-Z)100 Watts Continuous Program Power; 50 Watts Continuous Pink Noise
Transformer Taps30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (±3 dB)96 Hz – 15 kHz
Nominal Sensitivity91 dB
Nominal Coverage Angle110° Conical Coverage
Directivity Factor (Q)7.8
Directivity Index (DI)8.2 dB
Rated Maximum SPL108 dB @ 3.3 ft (1 m) Average, 116 dB Peak
Nominal Impedance8 Ohms (In Direct/Bypass 8Ω Setting)
Crossover Network12 dB/oct (2nd Order) Low-Pass to LF Driver, 12 dB/oct (2nd Order) High-Pass to HF Driver
LF Driver165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
Input ConnectorRemovable Locking 4-pin Connector with Screw-Down Terminals.Max Wire Size 12 AWG (2.5 mm2)
Connector WiringPin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain ReliefsStrain Relief for 2 Cables or 2 Flex Conduits Via Coupled Clamping Mechanism
MaterialsABS Baffle with UL94-V0 and UL94-5VB Flame Class Fire Rating. Zinc-platedSteel Backcan.
Safety AgencyUL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker.
Ceiling Cutout SizeCircular Cutout with 8.8" (223mm) Diameter (Cardboard Cutout Template Included)
Ceiling Thickness RangeUp to 1.5" w/Stock Dog-Ears. MTC-TCD Thick-Ceiling Dog-Ears Available Up to 2.4" Ceiling Thickness.
Safety Seismic AttachmentOne Point, Top Surface
Dimensions (Dia x D)10" (253 mm) x 8.8" (225 mm)
Net Weight (ea)7.4 lbs (3.4 kg)
Shipping Weight (pair)24.7 lbs (11.2 kg)
In The Box

In The Box

  • C-ring support backing plate
  • (2) Tile support rails
  • Cutout template
  • Paint shield
  • Removable locking multi-pin connector
  • Grille
