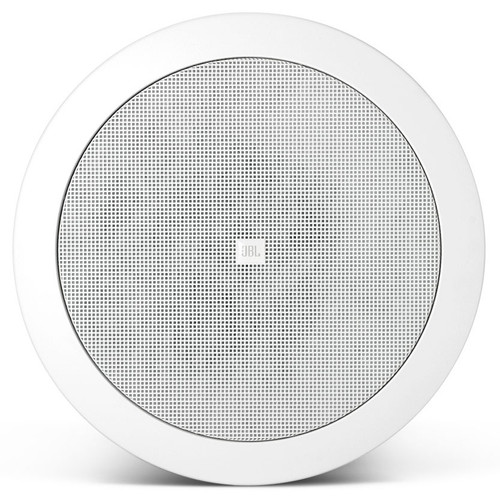

The Control 24CT Micro is a 4" in-ceiling speaker that is ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion and a smooth, natural frequency response makes the Control 24CT Micro ideal for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems.
Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers can, in many systems, allow for mixing and matching of models within zones without requiring separate equalization.
Installation of the Control 24CT Micro is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. A template is provided for marking the cutout. An innovative C-shaped support backing plate can be installed from below through the cutout to reinforce the top of the ceiling material. Tile bridge rails are included which can be screwed onto the C-plate to extend support to the T-channel grid in suspended ceiling installations. After the speaker is fitted through the cutout, it is held securely in place via mounting tabs which tighten onto the C-plate, if used, or directly onto the ceiling material.- Features
Features
- Extremely wide 150° coverage
- Smooth frequency response

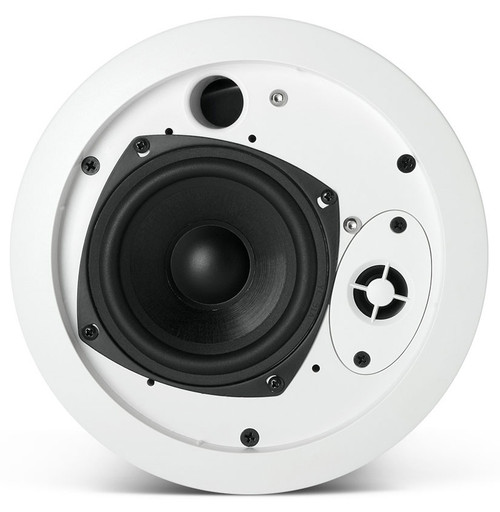

- 4.5" woofer, injection molded graphite cone with butyl rubber surround
- 0.5" polycarbonate tweeter for extended response
- Includes 8W multi-tap transformer for 70V/100V systems
- Shallow 4" depth
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
- Specification
Frequency Range 85 Hz - 25 kHz Power Capacity 30W Continuous Program Power (C24C Micro); 15W Continuous Pink Noise (C24C Micro) Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft) Crossover Frequency 3.5 kHz Rated Maximum SPL 94 dB @ 1 m (3.3 ft), 8W tap Transformer Taps 70V: 8W, 4W, 2W, 1W & 0.5 W taps; 100V: 8W, 4W, 2W, 1W taps Low Frequency 4.5" IMG (injection molded graphite), 1" voice coil High-Frequency 0.5" polycarbonate Backcan Formed steel Baffle/Rim Medium impact polystyrene, fire rated UL94V-O Secondary Attachment Point: Included Termination Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of backcan Included Accessories C-shaped support backing plate 2 tile support rails Cutout template, cardboard Cutout Size 6.6" (167 mm) Dimensions (H x Dia) 4.2" (106 mm) x 7.7" (195 mm)
4.1" (105 mm) from front of ceiling tile to back of the backcanNet Weight (ea) 4.4 lbs (2 kg) Shipping Weight (Pair) 9.7 lbs (4.4 kg) - Documents
