- Description
Details
The JBL Control 25-1 is a replacement for the Discontinued JBL Control 25T.
The Control® 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
- Features
Features
- Components:
- 5.25" woofer with woven fiberglass cone
- 3/4" PEI diaphragm tweeter with fluid cooling

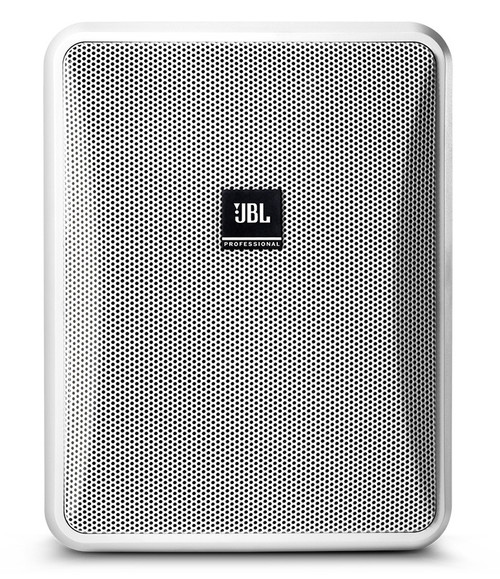

- Contemporary, high-design appearance

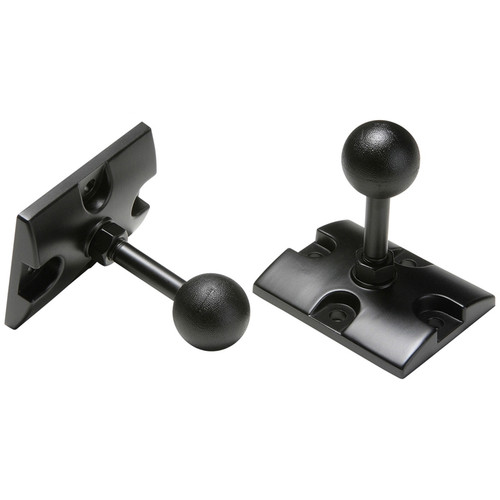

- Built-in InvisiBall® mounting hardware, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage

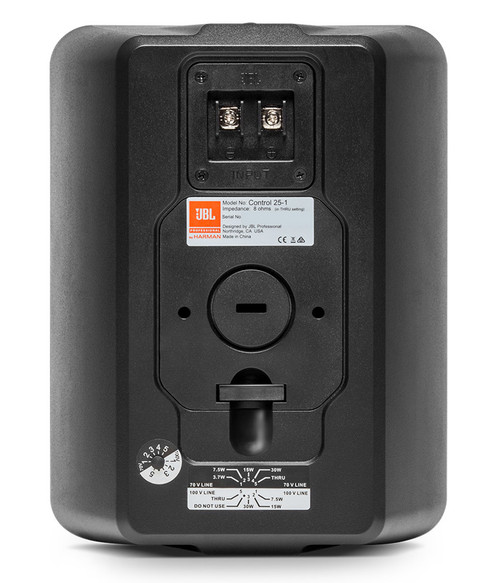

- 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
- High fidelity sound character with broad frequency response of 60 Hz – 20 kHz
- Specification
Frequency Range (+/-10 dB) 60 Hz to 20 kHz Frequency Response (+/-3 dB) 85Hz - 17 kHz Power Rating 200 W Continuous Program (2 hrs)
100 W (400W peak), Continuous Pink Noise (2 hrs)

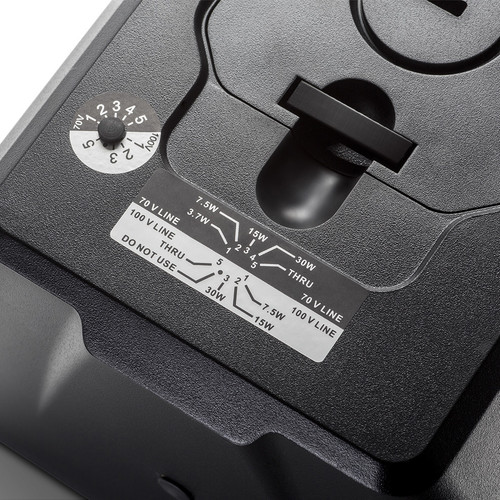

75 W (300W peak) Continuous Pink Noise (100 hrs)Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak Sensitivity 86 dB, 1W/1m (ave. 100 Hz – 10 kHz) Coverage Angle 100° x 100° Directivity Factor (Q) 6.04 (averaged 1kHz – 16kHz) Directivity Index (DI) 7.6dB (averaged 1kHz – 16kHz) Nominal Impedance 8 ohms (THRU setting) Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W
100V: 30W, 15W, 7.5W
Insertion Loss <0.94 dB at any tap setting
Thru Setting: 8Ω nominalCrossover Type 2nd order low-pass, 3rd order high-pass LF Driver 5.25" (135 mm), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure HF Driver 0.75" (19 mm), PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former Enclosure Material High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel Environmental IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments Termination Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection Agency Rating ROHS-compliant; Transformer UL Recognized per UL1876 Included Accessories InvisiBall™ wall-mounting system, 4 mm x 80 mm hex key Color Black or White Dimensions (H x W x D) 9.6" (243 mm) x 7.4" (188 mm) x 5.7" (145 mm) Net Weight (ea) 7.5 lbs (3.4 kg) Shipping Weight (Pair) 18 lbs (8.16 kg) - Documents
Documents
