- Description
Details

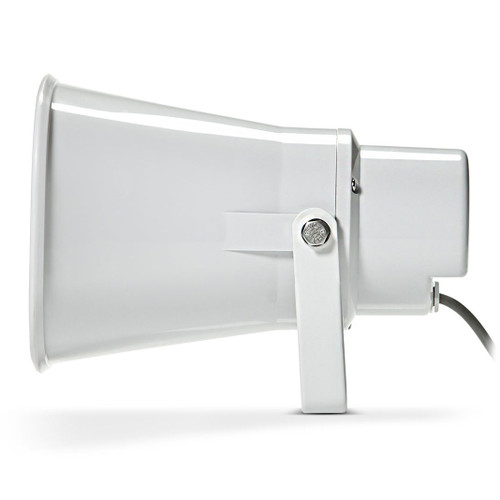

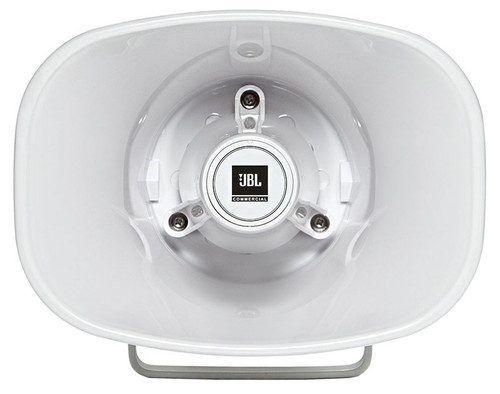

The CSS-H15 paging horn is a cost-effective CSS Commercial Solutions Speaker, designed for the needs of a wide range of commercial applications.
Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
Constructed of sturdy ABS with corrosion‐resistant all-stainless-steel mounting bracket and hardware, this paging horn includes a built‐in UL registered multi‐tap transformer (15‐Watt) for use with 70V and 100V distributed speaker lines, with a screwdriver adjustable tap switch, and a bypass position for direct 8-ohm operation.- Features
Features
- Excellent voice range clarity for announcement and paging
- High sensitivity delivers high sound levels with minimal power amplification
- Wide 70° horizontal by 90° vertical coverage for medium throw applications
- Phenolic diaphragm driver for outdoor durability and high reliability
- UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass
- Built-in high-pass filter enhances reliability by protecting against low frequency damage
- Highly weather-resistant, with stainless steel bracket and hardware
- Specification
Frequency Response (-10 dB) 400 Hz – 7.5 kHz Coverage Pattern 70° Horizontal by 90° Vertical (at 2 kHz and Averaged 1 kHz – 4 kHz) Included High-Pass Filter Passive 350 Hz High-Pass Filter Built-in Directivity Factor (Q) 10.9 (2 kHz) Directivity Index (DI) 10.4 (2 kHz) System Power Rating 15 W (60 W peak), 100 Hours Sensitivity (1W, 2.83V@ 1m) 05 dB, Ave. 1 kHz – 6 kHz; 111 dB at 2 kHz Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz
123 dB cont ave. (129 dB peak), 2 kHz, 15W input
8 ohm settingNominal Impedance 15W/70V, NC/100V tap: 333 ohms
7.5W/70V, 15W/100V tap: 667 ohms
3.8W/70V, 7.5W/100V tap: 1333 ohms
1.9W/70V, 3.8W/100V tap: 2666 ohms
0.9W/100V, 1.9W/100V tap: 5332 ohms
8 ohms at 8 ohm direct settingTransformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W, 0.9W
100V: 15W, 7.5W, 3.8W, 1.9WFull-Range Driver 1.3" Diameter with Phenolic Diaphragm Horn Material ABS Mounting Hardware Stainless Steel Powder-Coated U-bracket (yolk) with 3 x 0.34" Diameter Mounting Holes Color RAL9016 (Horn and Bracket) Input Connection 12" Pigtail to Bare Wire; Entrance Via Watertight Fitting Environmental IP-65 Rating Per IEC529, Salt Spray Per B117, Stainless Steel U-bracket and Exterior Hardware Safety Agency Ratings Transformer UL Registered per UL1876 Dimensions (H x W x D) 6.5" (163 mm) x 8.8" (222 mm) x 9.2" (232 mm) Weight 3 lbs (1.36 kg) Shipping Weight 3.7 lbs (1.68 kg) - Documents
