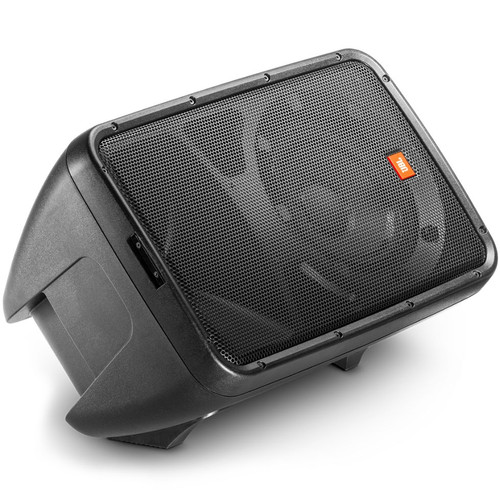

JBL EON208P All-In-One Portable PA System with 8-Channel Powered Mixer, Bluetooth and Microphone
Bring legendary JBL sound quality to your stage with the EON208P all-in-one portable PA system. Featuring a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8" two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity allows you to stream audio from your mobile device. Thanks to 300 watts of power, you’ll have enough volume to be heard loud and clear. Plus, the compact and lightweight form factor makes transportation easy—you can carry the entire system with one hand.
Applications Include:
- DJs
- Singer/ Songwriters
- Performers
- Presenters & Teachers
- Parties
- Houses of Worship
- Features
Features
- Professional-grade 8-channel detachable mixer
- Bluetooth streaming
- Portable design
- Connection latch
- Transport handle
- Lightweight design
- Specification
System System Type Portable 2-way full-range loudspeakers with powered mixer Maximum SPL Output 121 dB peak Frequency Range (-10 dB) 60 Hz - 20 kHz Frequency Response (+/-3 dB) 70 Hz - 18 kHz AC Input 100-120 V, 220-240 V 50/60 Hz Amp Design Class D System Power Rating 300 W (2x 150 W stereo) Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs Channels 1-4: XLR/1/4" jack combo connectors
5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jackPhantom Power CH1 and CH2 have phantom power control and share the same selection switch Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jackTreble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost System Limiter On-board DSP limiting LF Driver 1x JBL 8" (203mm) woofer HF Driver 1x 1" Neodymuim black aluminum dome tweeter Coverage Pattern 100° horizontal x 60° vertical Crossover Frequency 2 kHz Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave) Physical Enclosure Polypropylene Suspension/Mounting 36 mm pole socket Handles One on top Speaker Grille Powder-coated perforated steel Dimensions (H x W x D) 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm) Net Weight 38.8 lbs (17.6 kg) - Documents
Documents
- In the Box
In the Box
- JBL EON208P Portable PA System
- AKG Vocal Microphone
- IEC Cable
- Speaker Cables
