JBL VT4887ADP 8 Inch Line Array Speaker (Discontinued)

Description

Details

The VT4887ADP Powered Compact Bi-amplified 3-Way High Directivity Line Array Element. Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venues.

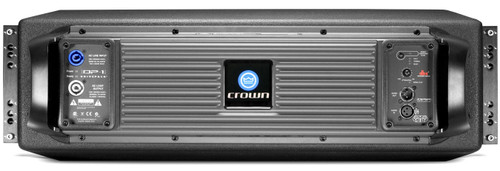

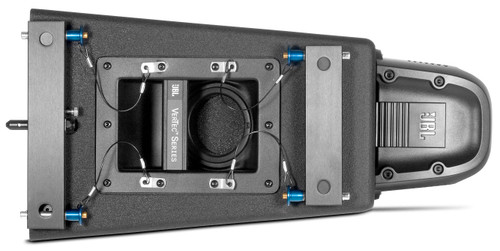

The VT4887ADP is a compact, powered lightweight 3-Way Line Array Element housing two 8" woofers, four 4" midrange radiators, and two 1" exit high frequency drivers. Designed in cooperation with Crown and dbx, the JBL DP2 DrivePack features 2200 watts peak output power and comprehensive digital signal processing, including patented high efficiency “Class-I” power amplifier technology from Crown and onboard DSP functionality that communicates readiness and operational status and monitors fault detection of components and electronics. Advanced VERTEC-class component transducers provide a high power-to-weight ratio. Enclosure features foam-backed low frequency grilles, dense protective foam inserts for midrange apertures, and fine steel mesh grille to protect high-frequency apertures. Speaker cones are treated with weather-resistant compounds. The VT4887ADP’s suspension hardware relies on quick-release pins and end-mounted metal tubes to couple adjacent VT4887ADP’s together. Enclosure ships with integral front and rear hinge bar set.

Features

Features

New 2268H-1 8" low frequency drivers offer improved performance and extended low frequency response
Advanced technology components
Differential Drive®
Neodymium magnet
Dual voice coil
Direct Cooled™ cone transducers for low weight and high output
JBL DrivePack® technology delivers superb audio quality and robust high efficiency “Class-I” power
Modular input bay provides choice of analog or digital audio input options, with networked control and monitoring capabilities
World-wide AC line voltages are automatically selected for 50 or 60 Hz
Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction
Rugged DuraFlex™ exterior finish; weatherized components
Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays
For use in stand-alone arrays or in combination with other VERTEC system models

Specification

Frequency Response (±3 dB)	67 Hz – 20 kHz
Frequency Range (-10 dB)	55 Hz – 22 kHz
Horizontal Coverage Angle (-6 dB)	100 deg. nominal (500 Hz – 16 kHz)
Vertical Coverage Angle (-6 dB)	Varies with array size and configuration
Maximum Peak Output	136 dB SPL, 1m
Low Frequency	Two 2168H-1, 203 mm (8 in) dia., 76 mm (3 in) Dual Coil,Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	4 ohms (LF woofers wired in parallel)
Mid Frequency	Four 2104H 101 mm (4 in) with 25.4 mm (1 in) dia. voice coil
High Frequency	Two JBL 2408H 25 mm (1 in) exit compression drive, 38 mm (1.5 in) voice coil
Bandpass Nominal Impedance	8 ohms (drivers wired in series-parallel)
DP2 Internal Amplification Output (at load)	2200W Peak, 1100W Continuous
DP2 Output Topology	2-Channel, Class-I
Signal Processing	dbx Type IV Conversion System, Precision bandpass filters
System Management	DSP based limiters for mechanical and thermal protection
Signal Input	F-XLR Active 20K Ohms Balanced, 10K Ohms Unbalanced
Signal Loop-Through	M-XLR (passive pass-through)
Controls	Precision 0.5 dB increment Detented 16 dB input attenuator
AC Power Operating Range	Auto Select 90-132/VAC 50/60 Hz
AC Line Voltage	50/60 Hz, Auto-Detect; 120V/240V (±10%)
AC Input Connector, AC Power Loop-thru	Neutrik Powercon
AC Current Requirement	4A per system at 120V, 3A per system at 240V
Box Construction	Wedge frustum 5 degree side angle enclosure. PlyMax engineered composite structure, DuraFlex finish
Suspension System	S.A.F.E. hardware, integral hinge bars nest in rigging tubes on box ends
Grille	Black perforated steel, foam backed
Dimensions (H x W x D)	11" (279 mm) x 31" (787 mm) x 22.1" (563 mm)
Net Weight	87.5 lbs (39.7 kg)
