Learning and Testing Speech Privacy Sound Masking System

This sound masking system provides a more secure and private learning environment for your students by reducing noise distractions. Adding sound masking in educational settings, such as libraries, student centers, classrooms, and other study spaces will ensure minimal disruptions to students who are studying or taking tests. This system includes eight sound masking emitters, a sound masking generator and the cables needed for installation. More emitters can be added to expand this system to meet the exact needs of your application.

Protecting students’ privacy is the law. The Family Educational Rights and Privacy Act (FERPA) mandates that post-secondary institutions take all reasonable efforts to safeguard student information including how the information is collected, stored, used, and released. Many institutions have established effective security measures to protect the data stored on their servers but overlook the need to safeguard client information during its collection and use. This sound masking solution helps protect speech privacy by making it more difficult to overhear people speaking.

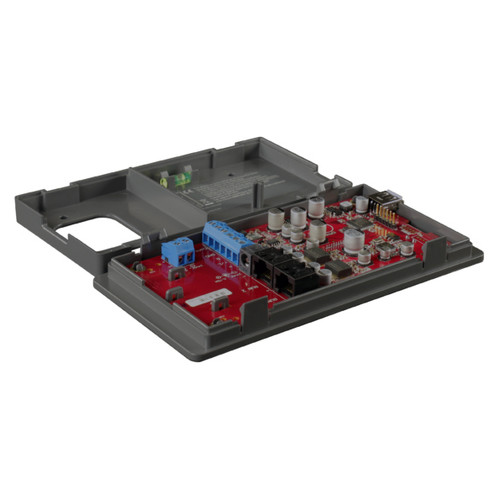

Cambridge Qt-100 Sound Masking Generator

The Qt 100 control module is a compact one-zone controller suitable for installations of up to 12,000 square feet (1,115 m2). The masking level can be adjusted from the unit’s front panel or using a Bluetooth connected iOS device using the CSM configuration app. Auxiliary audio level is set via the front panel.

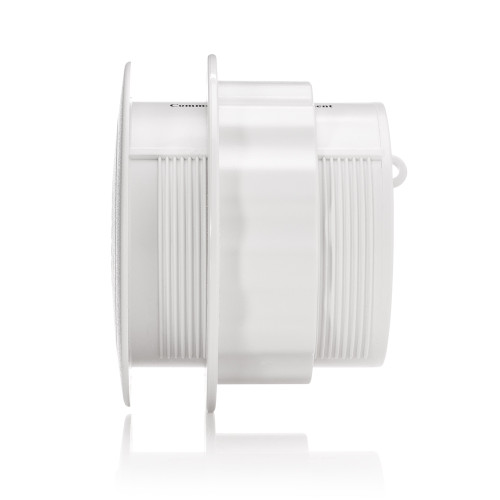

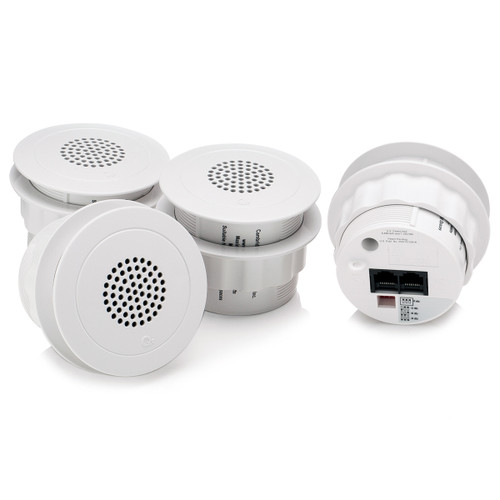

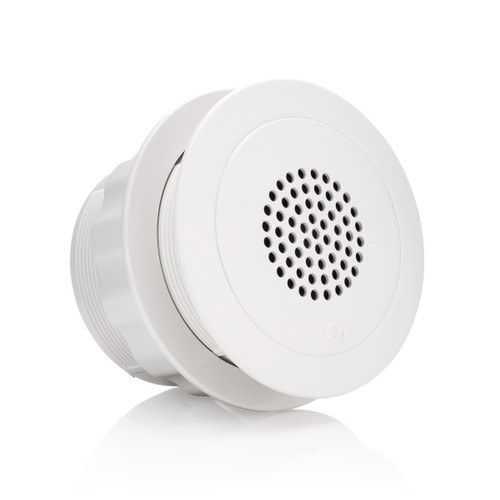

Cambridge Qt Emitters Sound Masking Speakers

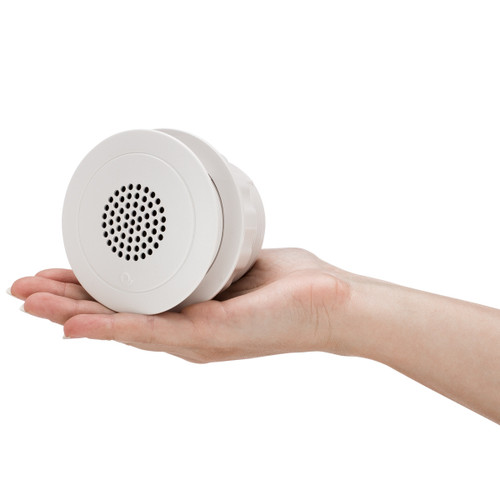

The Cambridge Qt® emitters are the backbone of the Qt Quiet Technology Sound Masking System. Qt emitters are wide dispersion direct field speakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. All Qt emitters come in the adjustable format. These emitters deliver four uncorrelated audio channels, which provide uniform, unobtrusive sound masking. This feature, along with plug and play installation and easy configuration capability, make Qt® systems the most intelligently engineered and most effective sound masking systems on the market today. Qt emitters are miniature, direct field speakers and are omnidirectional, providing nearly 180 degrees of sound dispersion. These plug-and-play emitters may be used interchangeably with all of Cambridge Sound Management’s sound masking, paging and music control modules. Qt emitters are offered in one format: micro adjustable emitter. These adjustable emitters allow the sound masking input to be reduced by up to 9dB, in 3dB increments to compensate for different acoustic conditions within a zone.

Overall Features:

• 1 Audio Inputs for Music/Paging
• 1 Zones
• Maximum Number of Emitters: 120
• LCD Control Panel with Bluetooth Connection



Cambridge Qt-100 Sound Masking Generator:

• Powered by direct-field Quiet Technology developed to reduce acoustic interference
• Delivers uniform sound masking by projecting from not through the ceiling
• Reduces the need for expensive construction or sound blocking materials
• Each emitter can be installed in less than 15 minutes and in any ceiling type
• The only sound masking system that can be easily installed in existing space
• GreenSpec listed and the most energy efficient sound masking system available



Cambridge Qt Emitters Sound Masking Speakers:

• Come in the adjustable format
• Comes standard with slip ring for acoustical tile mounting
• Deliver four uncorrelated audio channels, which provide uniform, unobtrusive sound masking
• Easy configuration capability
• For black color emitters, CSM ships white emitters with the appropriate color cap
• Emitter caps easily attach to the emitter grill for a flawless painted look

Qt 100 Installation & Operations Guide

Qt Emitters Spec Sheet

Product Brief

• (1) Cambridge Qt-100 Sound Masking Generator
• (8) Cambridge Qt Emitters Sound Masking Speakers
• 16ft Cable per 4 Emitters
