Yorkville PSA1 Paraline Line Array Loudspeaker
Part # PSA1
Model # PSA1

The Yorkville PSA1 Paraline Line Array Loudspeaker is a compact full range active line array loudspeaker, built for virtually any typical pro-audio application.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Yorkville Sound's Paraline Series active full range loudspeaker system delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.

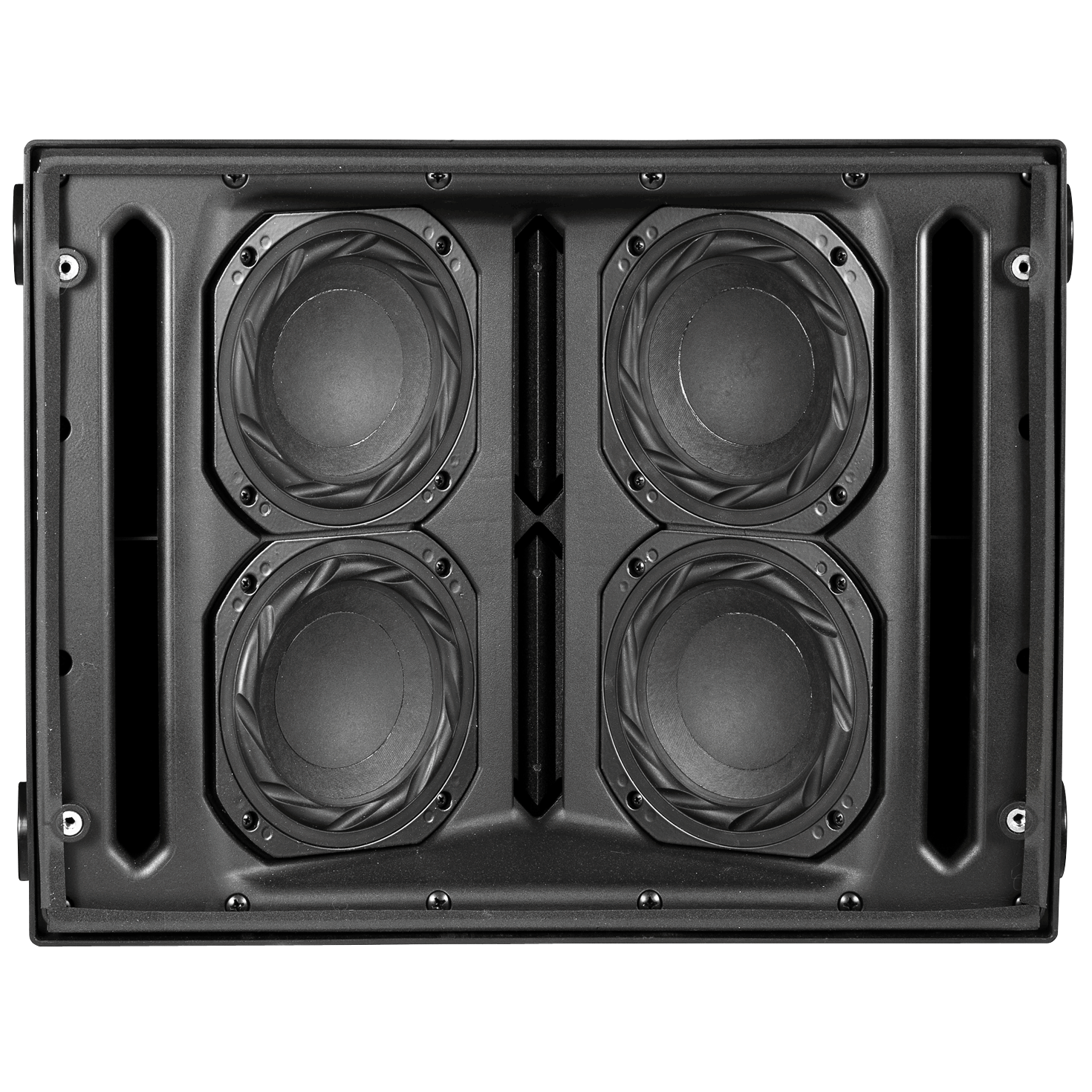

Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110 degree horizontal coverage. Four high quality 18 Sound 6-inch woofers provide a tight and ultra responsive low frequency program.

The heart of the PSA1 design is the high frequency Para-Line lens. Invented by Tom Danley, this patented technology transforms a point source into a uni-phase plane wave, allowing multiple high frequency drivers to sum coherently in the vertical plane without self-interference. This innovative design provides an effective impedance transformation while at the same time adjusting the path length in a continuously variable way creating a dispersion pattern with the same characteristics as that of a much deeper conventional horn.

The Paraline Series brings the power and precision of processor controlled touring PA into the hands of the working musician with a system that offers simple plug and play operation. Scalable by design, the Paraline Series active cabinets and companion active subwoofers deliver the clarity and precision of a complex line array system in a compact, user friendly format.

Developed specifically for mobile PA applications and use in venues where access to complex trussing or roof hangs isn’t practical, the Yorkville's Paraline Series Cabinets mount securely on typical speaker stands without additional rigging hardware.

Innovative cabinet design uses Yorkville Sound’s proven Paraline high frequency lens technology pioneered in Yorkville Sound’s flagship VTC Elevation Series line array cabinets.
Features

Features

  • Ultra High Performance Compact Active PA System
  • Uses Patented Paraline Horn Lens Technology
  • (from Yorkville Sound’s Flagship VTC Elevation Series Vertical Array Touring Systems)
  • High quality Speaker Components
  • (including 18 Sound 6-inch Woofers and BMS Compression Drivers)
  • Focused 15° Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
  • Wide 110° Horizontal Dispersion Pattern
  • Manufactured Using Light-weight/Strong ABS Cabinet Material
  • Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor (Maximum Two Cabinets per stand)
  • Installation Hardware Available
  • Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
Specification
Active or PassiveActive
Program Power (Watts)700 Program (1200 Watts Peak)
BiampableBiamp
Max SPL (dB)128dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3db)75Hz-20K
Crossover Frequency (Hz)1.2K
Driver Configuration2x1", 4x6"
HF Driver(s)2x1-inch Ceramic w/ 1.75-inch VoiceCoil
HF Program Power (Watts)75 Watts (200 Watts Peak)
HF Dispersion (°H x °V)110x15
HF ProtectionPeak and Average Limiting
LF Driver(s)4x6-inch neo with 45mm VC
LF Program Power (Watts)675 Watts Program (1000 Watts Peak)
LF Impedance (Ohms)2 Ohm Load
LF ProtectionExcursion, RMS
HF Power Amplifier (Watts)75W
HF Amplifier Type2-Tier Class H
LF Power Amplifier (Watts)625W
LF Amplifier TypeClass D
Cooling SchemeConvection
Power CableRemovable Locking IEC Input and Loop Thru Output
Power Consumption (typ/max)135 VA / 225 VA
Inputs1 Combijack (XLR / 1/4-inch)
Input Sensitivity (Vrms Sine)Line in 1.4 at center, 0.35 at max
Level ControlsVolume
EQ ControlsHF Boost switch, Fullrange/Sub switch
LimiterPeak and Average limiting on horn and woofer
LED IndicatorsPower, Limit, Clip
Enclosure MaterialsInjection Molded ABS
Baffle MaterialInjection Molded ABS
Covering / FinishPaint
Optional Covering / FinishesOptional Colours available
Dimensions (H x W x D)14.5" (36.8 cm) x 20.5" (52.1 cm) x 16" (40.6 cm)
Weight47 lbs (21.4 kg)
