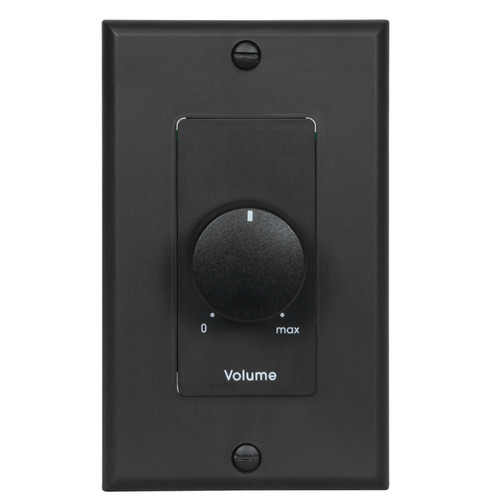

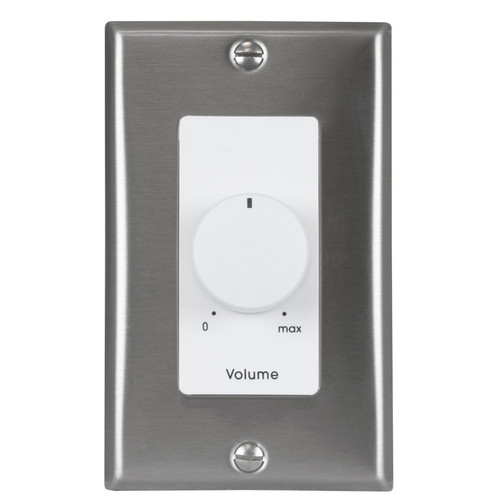

Lowell 10KLVC-D Decora Potentiometer Volume Control
Part # 10KLVC-DW
Model # 10KLVC-D

The Lowell 10KLVC-DW Potentiometer Volume Control features continuous steps and a variety of options (10k ohm, 50 ohm pot, and more). It includes Decora® wall plate and is ETL Listed. It has a 10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA) by others.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $58.96

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Lowell 10KLVC-DW Potentiometer Volume Control features continuous steps and a variety of options (10k ohm, 50 ohm pot, and more). It includes Decora® wall plate and is ETL Listed. The potentiometer series 10KLVC is a 10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA) by others. Decora-style assemblies match other Lowell LVC Series devices and are offered in white, ivory, black or stainless steel with white or black subplate. All feature phoenix-style removable screw termination strips for pre-wire with capacity for 14ga wire. Lowell Series 10KLVC is designed to interface directly with 3-wire, 0 to 10 volt control inputs that are typical on most voltage controlled amplifiers (by others). The 10k ohm potentiometer allows the amplifier’s control voltage to be set/adjusted from a single remote location. Decora-style models include the control assembly on a subplate with comfortable knob and wall plate. The subplate is printed with the words: Volume, 0, and MAX. Assemblies are offered in white, black or stainless steel with white or black subplate. Additionally, the 10KLVC Series share the same plate styling as Lowell’s LVC Series 25W, 50W and 100W - 70V attenuator controls for consistent appearance of control devices.

Features

Features

  • 10K ohm linear taper potentiometer
  • Provides level adjustment of voltage controlled amplifiers from a single remote location
  • Continuous, rotary control with stops at 0 and Max plus incremental detents for precision feel
  • Clean styling matches Lowell's LVC Series 25W, 50W and 100W - 70V attenuators
  • 1.25" depth fits standard E.O. boxes
  • Choose white, ivory, black or stainless with white or black subplate inside
Specification
TaperLinear
AttenuationContinuous
Resistance10,000 ohm
Plate Width2.75"
Plate Height4.5"
Dimensions (H x W x D)1.75" (44.45 mm) x 1.0" (25.4 mm) x 1.25" (31.75 mm)
Weight1 lbs (0.454 kg)
