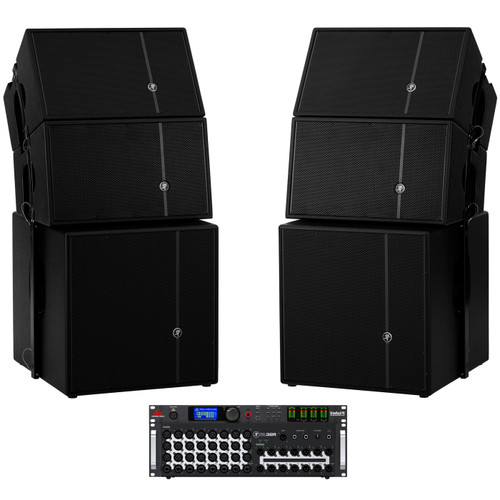

Mackie Church Sound System with 4 HDA Loudspeakers and DL32 Wireless Digital Mixer
Part # CHSS-4HDADL32
Model # CHSS-4HDADL32

This powerful Mackie Church Sound System with the HD Series Loudspeakers and Subwoofers and the DL32R Digital Wireless Mixer significantly increases audio clarity and intelligibility. It is well suited for many church sound applications.

Availability: In Stock and Ready to Ship!

* Required Fields

Pro Acoustics Price $0.00

Free Lifetime
Tech Support!

with Every Purchase Start Chatting
Description

Details

This powerful Mackie Church Sound System with the HD Series Loudspeakers and Subwoofers and the DL32R Digital Wireless Mixer significantly increases audio clarity and intelligibility. It is well suited for many church sound applications.

The Mackie HDA High-Definition Arrayable Powered Loudspeaker System exemplifies this philosophy, delivering superior performance and unparalleled sonic quality in the most cost-effective constant curvature line array ever created. Powered by 1200W of peak system power, with a coverage pattern of 110° x 20°, the compact 12" 2-Way HDA loudspeakers are highly configurable.

Mackie HD1801 subwoofer. Mackie HD Series Powered Subwoofers provide intense low-frequency extension and punch to any Mackie full-range system. Designed and tuned by the experts at EAW, HD1801 subs deliver 1600W peak power via high-output 18” drivers custom-designed for optimal pairing with Mackie full-range loudspeakers.

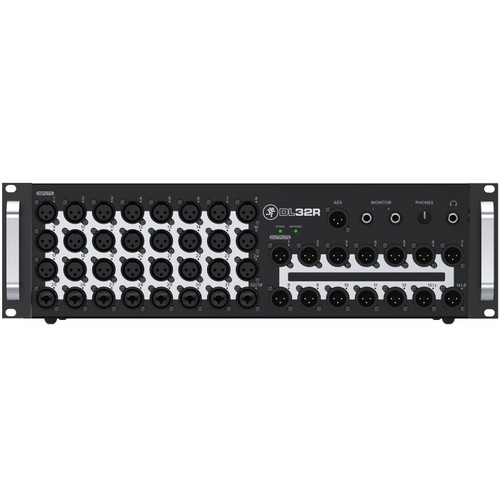

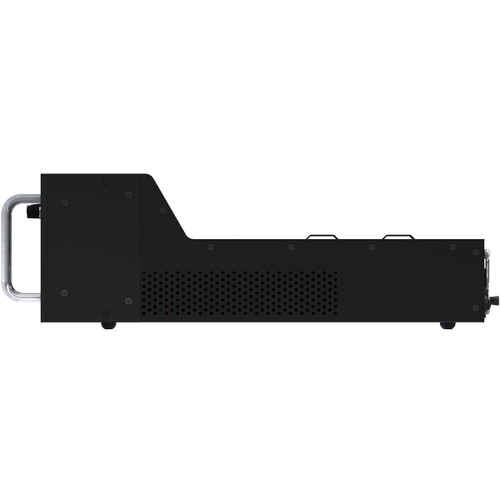

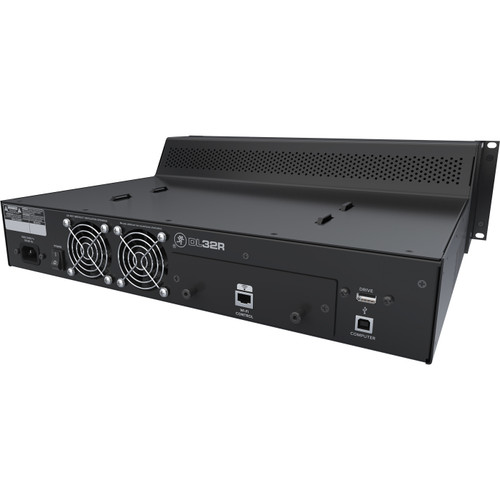

The DL32R features flexible, professional I/O in an incredibly compact design. So you can place it anywhere and it's "Built-Like-A-Tank", so it'll stand up to life on the road. Recallable Onyx+™ mic pres provide unmatched clarity and control. DL32R has outputs galore with 14 assignable XLR outputs, stereo AES, phones out, and 1/4” monitor output. The optional DL Dante Expansion Card gives you 32x32 channels of networked audio compatible with hundreds of Dante equipped devices.

The DBX DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in DBX’s proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers. Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters. Over 1400 selectable, pre–programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

Features

Features

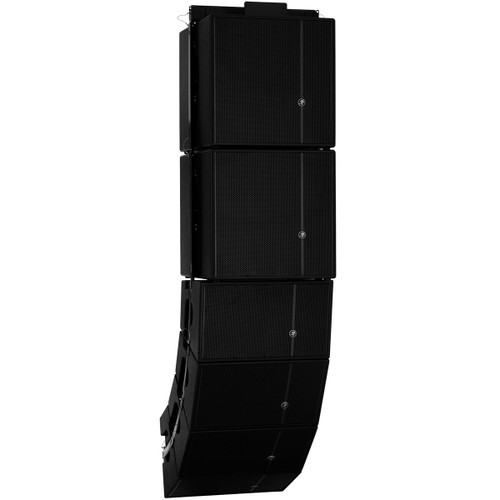

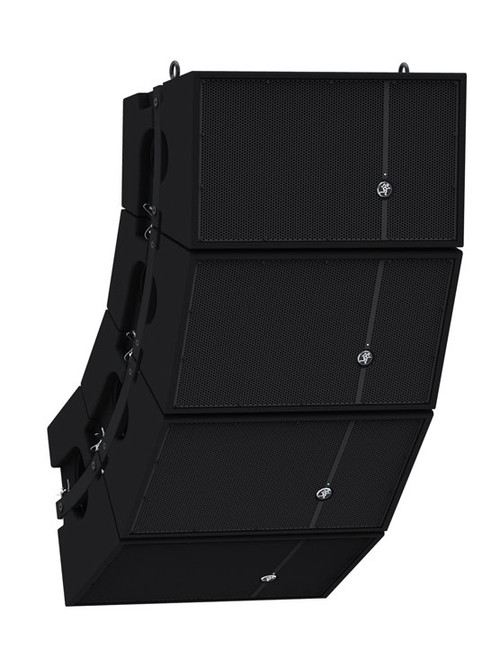

Mackie HDA Arrayable Powered Loudspeaker

  • 110˚ x 20˚ coverage
  • Integrated rigging
  • Three array voicing modes allow easy system
  • 1200W of efficient Class-D Fast Recovery™ amplification
  • LF amp: 500W RMS / 1000W peak
  • HF amp: 100W RMS / 200W peak
  • 12” neodymium woofer with 3” voice coil by EAW
  • Dual Beyma® 1.7” compression drivers
  • High-definition audio processing includes
  • Revolutionary patented acoustic correction
  • Transducer time alignment and phase correction
  • Precision 2-way crossover
  • Integrated limiting and protection circuitry
  • Multitude of configuration options
  • Integrated fly points or optional flybar support up to
  • 4x HDA and up to 2x HD1801 subwoofers
  • Ground stack on HD1801 subwoofer or flybar
  • Pole mount up to 2x HDA on HD1801 subwoofer or tripod using dual angle pole cups
  • Ultra-compact and lightweight (59 lb / 26.7 kg)
  • Rugged all wood cabinet (15mm birch plywood)
  • Supported by EAW Resolution prediction software

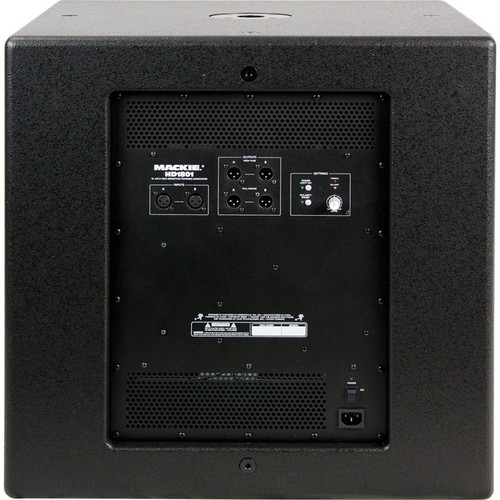

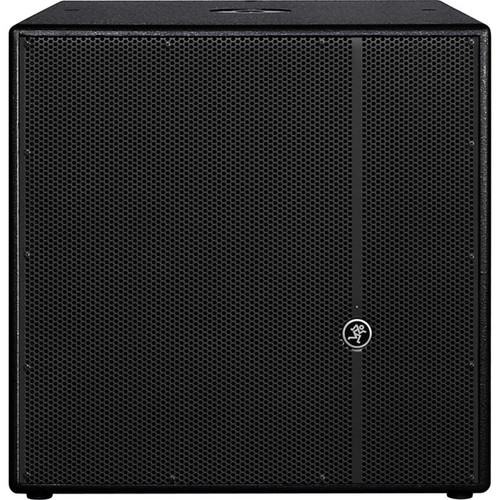

Mackie HD1801 Powered Subwoofer

  • 1600W of ultra-efficient Class-D Fast Recovery™ amplification
  • 800W RMS / 1600W peak power
  • 133 dB SPL max output (peak @ 1m)
  • 35 Hz to 145 Hz operating range
  • 18” high-output woofer with 4” voice coil
  • Active electronics provide complete system optimization
  • Symmetrical Linkwitz-Riley crossover (100Hz, 24dB/octave)
  • Precision tuning filters for ultra-accurate bass reproduction
  • Phase alignment to perfectly complement Mackie full-range HD loudspeakers
  • Ported, direct-radiating design for maximum punch and low-frequency extension
  • Designed and tuned by Eastern Acoustic Works (EAW)
  • Dual XLR inputs, full-range and high-pass outputs for mono or stereo setups
  • Level control and polarity invert switch with LED indicator
  • Signal/limit and thermal LED indicators
  • Integrated protection and limiting circuitry
  • Rugged all-wood cabinet (15mm birch plywood)
  • Pole mount receptacle for mounting full range speaker
  • 12 integrated M10 flypoints
  • Compact and lightweight (106 lbs / 48.1 kg)

Mackie DL32R Digital Wireless Mixer

  • 32 Channel wireless digital mixer
  • Wireless mixing
  • Multi-track recording and playback
  • Fully-loaded DSP
  • Master fader control app

DBX DriveRack PA2 Loudspeaker Management System

  • All New Setup Wizard
  • Streamlined AutoEQ
  • All New AFS (Advanced Feedback Suppression)
  • Mobile Control (Android, iOS, Mac, Windows)
  • dbx Compression
  • Graphic EQ
  • 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
  • Subharmonic Synthesis
  • Crossover (supports full range, 2-way, and 3-way systems)
  • 8-Band Parametric EQs (used for speaker tunings) Output
  • dbx Limiting
  • Driver Alignment Delays

Shure ULXS124/85 Combo Wireless Microphone System

  • Up to 20 compatible systems per band
  • 62 compatible systems using multiple bands
  • 1440 selectable frequencies
  • Scan / channel scan auto-setup
  • Detachable antenna
System Includes

System Includes

  • (4) Mackie HDA Arrayable Powered Loudspeaker
  • (2) Mackie HD1801 Powered Subwoofer
  • (1) Mackie DL32R Digital Wireless Mixer
  • (1) DBX DriveRack PA2 Loudspeaker Management System
  • (1) Shure ULXS124/85 Combo Wireless Microphone System
  • Optional Accessories
  • (3) FREE Pure Resonance UC1S Dynamic Microphone
