Details

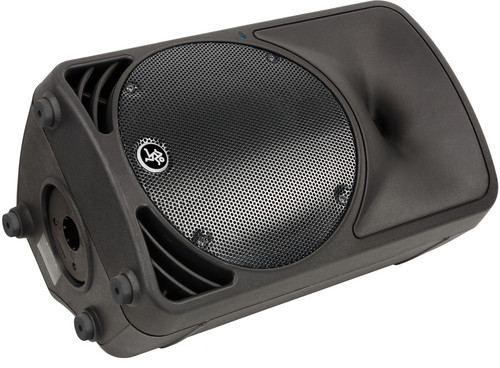

Two Fast Recovery™ amplifiers independently power a 10-inch lightweight woofer and a precision titanium compression driver. Mackie’s sophisticated Active electronics provide phase correction, crossover, time correction, equalization and protection circuitry. A heat-treated titanium compression driver directs pristine highs through an exponential high-frequency waveguide, allowing for ultra-wide dispersion. This allows the SRM350 to deliver clear, smooth sound to audience members up to 45° off axis.
The 10-inch lightweight woofer provides a greater magnetic field with far less material, making the woofer extremely lightweight without sacrificing performance. The 2-inch voice coil allows the driver to run cooler, delivering consistent performance even after long hours of use.
Mackie-designed Active electronics provide equalization, crossover, time alignment, and phase correction to enhance sonic performance. Protective circuitry includes over-excursion protection, low-line voltage shut-down, thermal protection, dynamic low-frequency bass boost and independent LF and HF limiters.
The SRM350 features a number of dedicated controls including a mic/line switch, a single microphone and line input level control, and a contour switch for low-level sound reinforcement applications.

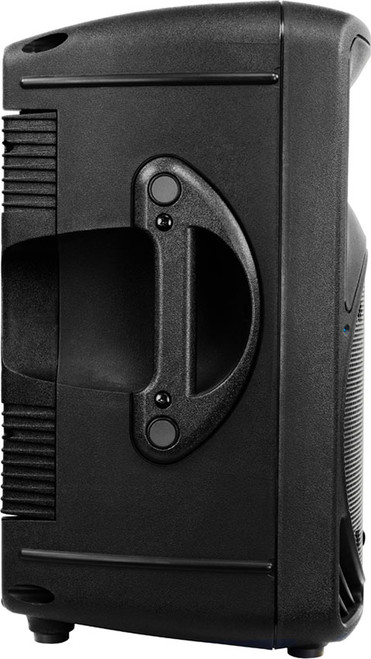

The center of gravity, handle locations, handle design, position of fly-points and ease of use have been ergonomically designed. There is also an integrated pole mount cup and a weather-resistant steel grille. The asymmetrical trapezoidal cabinet has been designed to provide an ideal floor monitoring position.
The cabinet is constructed of high-pressure injected polypropylene. The enclosure features reinforcement ribbing and structural strengthening resulting in a strong, super-rigid design providing ideal acoustical characteristics.- Features
Features
- 2-way bi-amplified, optimized Active loudspeaker system
- High-output, titanium dome compression driver
- 10" lightweight long-throw low frequency transducer
- 165W class-D, Fast Recovery LF amp / 30W HF amp
- Ultra-wide, smooth dispersion via HF waveguide
- Built-in phase accurate 24dB Linkwitz-Riley electronic crossover
- Electronic time correction, phase alignment and EQ for studio quality sound
- Mic/line input and pass-thru connector
- Lightweight for ultimate portability (23 lbs)
- Flyable, Pole mountable, Floor wedge-able
- Specification
Acoustic Performance Frequency Response (–3 dB) 55 Hz - 20k Hz Frequency Range (–10 dB) 50 Hz - 23k Hz Max Peak SPL 126 dB Crossover Point 3k Hz Dispersion (H x V) 90º x 80º High-Frequency Section Compression Driver 1.4" (36 mm) Diaphragm Material Titanium Magnet Material Ferrite Low-Frequency Transducer Diameter 10" (254 mm) Cone Material Paper Magnet Material Ferrite Power Amplifiers High-Frequency Power Amplifier Rated Power 400W RMS
800W PeakRated THD < 1% Cooling Convection Design Class D Low-Frequency Power Amplifier Rated Power 100W RMS
200W PeakRated THD < 1% Cooling Convection Design Class AB Input / Output Channel 1 Mic Line: 8k ohms balanced
1/4" TRS, Wide-Z ™: 1M ohms unbalancedChannel 2 Mic Line: 8k ohms balanced
1/4" TRS, Wide-Z ™: 1M ohms unbalanced
RCA: 25k ohms unbalancedThru Passive when the Ch 1 / Mix switch is in the “out” (Ch 1) position
Active when the Ch 1 / Mix switch is in the “in” (Mix) positionDimensions (H x W x D) Product 20.8" (527 mm) x 13.1" (333 mm) x 12.3" (311 mm) Shipping 25" (635 mm) x 15.2" (386 mm) x 13.2" (335 mm) Weight Net 23 lbs (10.4 kg) Shipping 29 lbs (13.2 kg) - Documents
