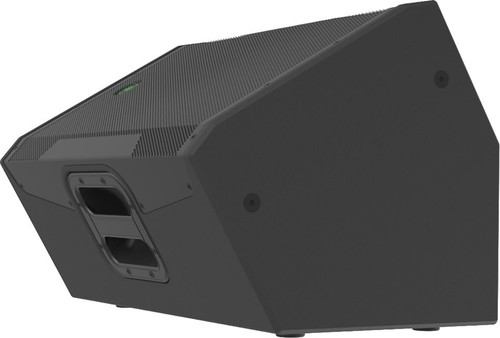

Mackie SRM550 1600W 12" Powered Loudspeaker (Discontinued)
Part # 2037992-00
Model # SRM550

Mackie's SRM550 12" 1600W High-Definition Powered Loudspeaker delivers on Mackie’s "Built-Like-A-Tank" SRM legacy in a professional-grade all-wood design with the modern output, clarity, and simplicity you demand from a portable loudspeaker.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Mackie SRM550 1600W High-Definition Powered Loudspeaker delivers a new level of SRM ruggedness, output, clarity and simplicity in a 12" design ideal as a main or monitor. Truly "Built-Like-A-Tank," huge system power is paired with custom transducers within professional-grade, internally-braced all-wood cabinets that redefine tough. The SRM550 features Mackie High Definition Audio Processing™ including patented acoustic correction DSP for the ultimate in high-definition sound plus system optimization tools like application-specific speaker modes and an amazingly accurate feedback destroyer. Ready for anything, SRM550’s integrated 2-channel mixer with Mackie Wide-Z™ inputs can handle any signal with ease. The SRM550 delivers the modern output, amazing sound and proven durability you demand from a portable loudspeaker.

Features

Features

  • 1600W system power paired with custom transducers deliver gig-level volumes with room to spare
    • 12" high-output LF driver / 1.4" titanium dome compression driver
  • "Built-Like-A-Tank" all-wood, internally-braced cabinet delivers unmatched road-worthiness
    • Rugged 18-gauge steel grille and fine-textured, sleek black cabinet finish
    • Front ported for maximum low-end extension and punch
  • High-Definition Audio Processing for professional sound with unmatched clarity
    • Patented acoustic correction developed with touring geniuses at EAW®
    • Precision 2-way digital crossover
    • Driver time alignment and phase correction
  • Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Monitor and Soloist)
  • Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer
  • Integrated 2-channel mixer featuring dual Mackie Wide-Z inputs
    • Handles anything from mics to guitars to mixers with a single twist of the gain knob
    • Includes stereo RCA inputs for easy connection to music source
    • Perfect for the singer/songwriter, plug in and leave the mixer at home
  • Smart Protect DSP kicks in to protect your investment when things get pushed a little too hard
  • Monitor-specific 60-degree angle and voicing mode perfect for cutting through on stage
Specification
Acoustic Performance
Frequency Response (–3 dB)55 Hz – 17 kHz
Frequency Response (–10 dB)49 Hz – 20 kHz
Max peak SPL132 dB
Crossover Point3 kHz
Dispersion90˚ x 50˚
High-Frequency
Voice Coil Diameter1.0" (25 mm)
Horn Entry Diameter1.4" (36 mm)
Diaphragm MaterialTitanium
Magnet MaterialFerrite
Low-Frequency
Woofer Diameter12" (305 mm)
Voice Coil Diameter2.6" (66 mm)
Diaphragm MaterialPaper
Magnet MaterialFerrite
Power Amplifiers
System Power AmplificationRated Power: 800W rms, 1600W peak
Low Frequency Power Amplifier
Rated Power400W rms, 800W peak
Rated THD< 1%
CoolingConvection
DesignClass D
High Frequency Power Amplifier
Rated Power400W rms, 800W peak
Rated THD< 1%
CoolingConvection
DesignClass D
Power
Detachable line cord90 – 130 VAC, 60 Hz, 200W
AC Connector3-pin IEC 250 VAC
Power Supply TypeSwitchmode
Operating Temperature0 - 40 ˚C (32 - 104 ˚F) [extended ambient temperature]
Safety Features
Input ProtectionPeak and RMS limiting, power supply and amplifier thermal protection
Display LEDsDefeatable front power ON (Running Man logo), Front load power limiter
Construction Features
Cabinet15 mm Poplar
FinishHigh durability black paint
HandlesOne on each side
GrillePowder-coated 18 gauge steel
Fly PointsThree M10 x 1.5 x 37 mm
Monitor Angle60˚
Mounting MethodsFloor mount, pole mount or fly via three integrated M10 mounting points
Dimensions (H x W x D)
Speaker23" (585 mm) x 14.2" (360 mm) x 14.9" (377 mm)
Shipping24.7" (627 mm) x 18.3" (465 mm) x 18.9" (480 mm)
Weight
Net37 lbs (16.8 kg)
Shipping44 lbs (20 kg)
