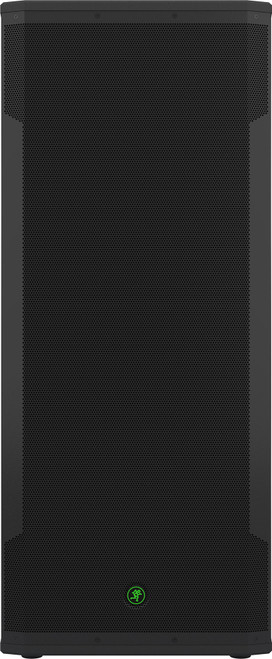

Mackie SRM750 1600W Dual 15 inch Powered Loudspeaker (Discontinued)

Description

Details

The Mackie SRM750 Dual 15" 1600W High-Definition Powered Loudspeaker delivers new levels of SRM ruggedness, clarity, and simplicity in a dual 15" design with unmatched output. Huge system power is paired with custom transducers within professional-grade, internally-braced all-wood cabinets that are "Built-Like-A-Tank." The SRM750 features Mackie High Definition Audio Processing™ including patented acoustic correction DSP plus system optimization tools like application-specific speaker modes and an amazingly accurate feedback destroyer. Ready for anything, SRM750’s integrated 2-channel mixer with Mackie Wide-Z™ inputs can handle any signal with ease. The SRM750 delivers the high output, amazing sound and proven durability you demand for your professional PA system.

Features

Features

1600W system power paired with custom transducers deliver gig-level volumes with room to spare

2 x 15" high-output LF drivers / 1.4" titanium dome compression driver

“Built-Like-A-Tank” all-wood, internally-braced cabinet delivers professional-grade road-worthiness

Rugged 18-gauge steel grille and fine-textured, sleek black cabinet finish
Front ported for maximum low-end extension and punch

High-Definition Audio Processing for professional sound with unmatched clarity

Patented acoustic correction developed with touring geniuses at EAW®
Precision 2-way digital crossover
Driver time alignment and phase correction

Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Fill and Speech)
Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer
Integrated 2-channel mixer featuring dual Mackie Wide-Z™ inputs

Handles anything from mics to guitars to mixers with a single twist of the gain knob
Includes stereo RCA inputs for easy connection to music source
Perfect for the singer/songwriter, plug in and leave the mixer at home

Smart Protect™ DSP kicks in to protect your investment when things get pushed a little too hard
Flyable both vertically and horizontally via standard M10 eyebolts

Specification

Acoustic Performance
Frequency Response (–3 dB)	42 Hz-20 kHz
Frequency Response (–10 dB)	37 Hz–20 kHz
Max Peak SPL	135 dB
Crossover Point	3 kHz
Dispersion [H x V]	90 ̊ x 50 ̊
High-Frequency Section
Voice Coil Diameter	1" (25 mm)
Horn Entry Diameter	1.4" (36 mm)
Diaphragm Material	Titanium
Magnet Material	Ferrite
Low-Frequency Section
Woofer Diameter	2 x 15" (381 mm)
Voice Coil Diameter	2.5 " (64 mm)
Diaphragm Material	Paper
Magnet Material	Ferrite
Power Amplifiers
System Power Amplification
Rated Power	800W rms
Low Frequency Power Amplifier
Rated Power	400W rms
Rated THD	< 1%
Cooling	Convection
Design	Class D
High Frequency Power Amplifier
Rated Power	400W rms
Rated THD	< 1%
Cooling	Convection
Design	Class D
Input/Output
Design	Class D
Channel 1
Mic-Line	8 kΩ balanced
1/4	1 MΩunbalanced
Channel 2
Mic-Line	8 kΩ balanced
1/4	1 MΩ unbalanced
RCA	25 kΩ unbalanced
Thru	Male XLR balanced
Line Input Power
US Detachable Line Cord	100 – 120 VAC, 50 – 60 Hz, 200W
EU Detachable Line Cord	200 – 240 VAC, 50 – 60 Hz, 200W
AC Connector	3-pin IEC 250 VAC
Power Supply Type	Switchmode
Safety Features
Input Protection	Peak and RMS limiting
Display LEDs	Defeatable front power ON (Running Man logo)
Construction Features
Cabinet	15 mm Poplar
Finish	High durability black paint

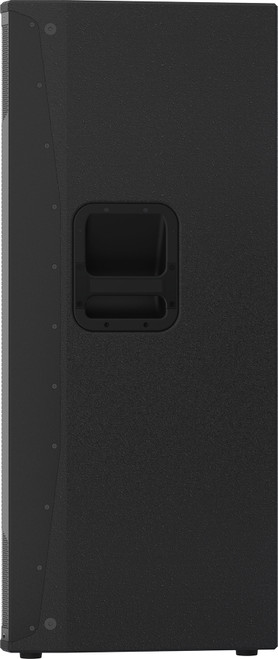

Handles	One on each side
Grille	Powder-coated 18 gauge steel
Fly Points	10x M10 x 1.5 x 37 mm

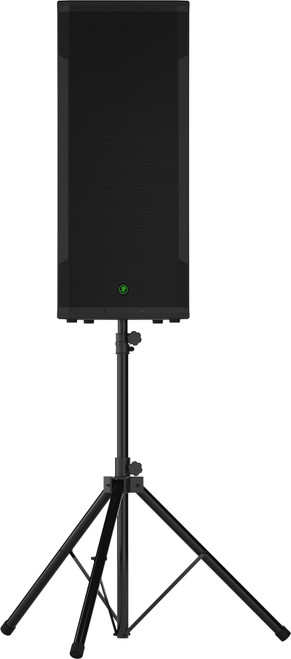

Mounting Methods	Floor mount, pole mount or fly via integrated M10 mounting points
Dimensions (H x W x D)
Product	42.5" (1079.5 mm) x 17.5" (444.5 mm) x 18" (457.2 mm)
Shipping	45.3" (1151 mm) x 23.7" (602 mm) x 23.7" (602 mm)
Weight
Net	89 lb (40.4 kg)
Shipping	99 lbs (44.9 kg)
