Inside the Design

This open ceiling sound system is great for open architecture layouts up to 3,600 sq ft with high ceiling designs such as restaurants, sports bars, or any open floor layout with high or vaulted ceilings. These pendant speakers provide clear and intelligible wide-coverage audio for focused performance. The 120W Bluetooth mixer amplifier allows you to play your favorite music from any Bluetooth enabled device.

Sound System Features:

• Clear Wide-Coverage: The down-firing design of the PD6 pendant mount speaker directs the high fidelity sound for an evenly distributed 150° wide coverage pattern
• Weather-Resistant Speakers:These treated speakers and two-layer, powder-coated grilles bring high-performance audio and vocal clarity to both indoor and outdoor sound systems
• Architectural Design:Superb sound reproduction for exposed structures or open plenum ceiling venues where a stylish contemporary speaker blends well with the architectural design
• Powerful Bluetooth Amplifier: The MA120BT has a power output rating of 120 Watts. 115V 60 Hz and 24V DC power and 24 VDC Emergency backup supply.
• Bluetooth-Enabled: The MA120BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth wireless connection.
• Commercial Volume Attenuators: The Atlas AT100 volume attenuators provide excellent frequency response, low insertion loss and reliable performance for volume control applications.

About the System Components

This restaurant audio system includes eight PD6 hanging speaker in a tough weather-resistant enclosure with treated drivers and two-layer, powder-coated grilles. Also included is our MA120BT 120 watt Bluetooth mixer amplifier featuring balanced and unbalanced inputs 70 Volt, 100 Volt, 8 Ohm or 4 Ohm outputs, and compact size and interface. We've also added two AtlasIED AT100 plate mounted 100W commercial volume attenuators and all the wire you need to install the system.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

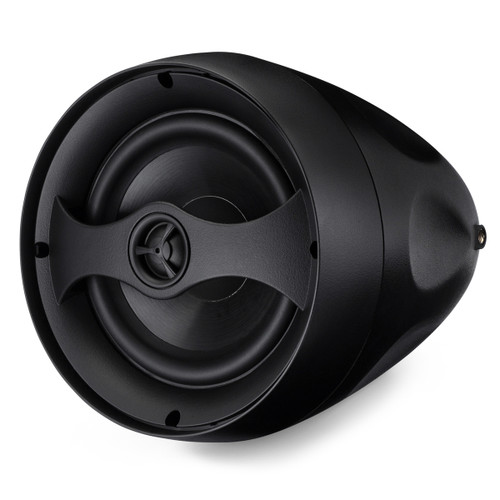

Pure Resonance Audio PD6 6.5" Indoor/Outdoor 70V Commercial Pendant Speakers:

• Durable weather resistant construction
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 4W, 8W, 16W, 32W
• 100V: 8 ohm, 8W, 16W, 32W
• Includes pendant mounting hardware
• Ideally suited for such applications as background music (BGM) and paging

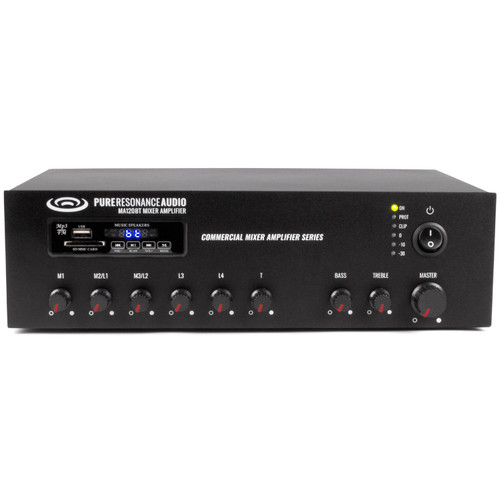

Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)/li>
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer

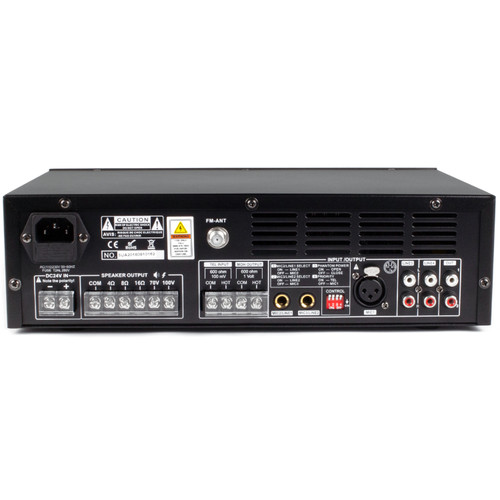

• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

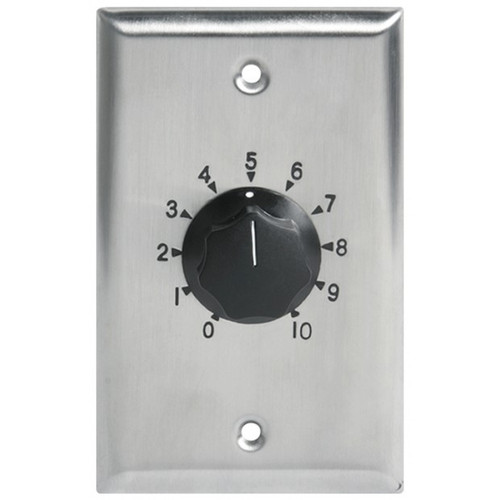

AtlasIED AT100 Plate Mounted 100W Single Gang Stainless Steel 70.7V Commercial Volume Attenuators:

• 10 attenuation steps plus positive off
• Mount into most 1-gang E.O. boxes
• Wall plates are stainless steel with stamped and filled dial scale and a skirted black knob
• UL Listed

• (8) Pure Resonance Audio PD6 6.5" 2-Way Open-Ceiling Pendant Speakers
• (8) Rear Covers
• (8) Eyebolt and Nuts
• (8) Mounting Kits:
• (16) Steel Cables
• (16) Carabiners
• (16) Fastlinks
• (8) Wire Retention Plates
• (1) Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (2) AtlasIED AT100 Plate Mounted 100W Single Gang Stainless Steel 70.7V Commercial Volume Attenuators

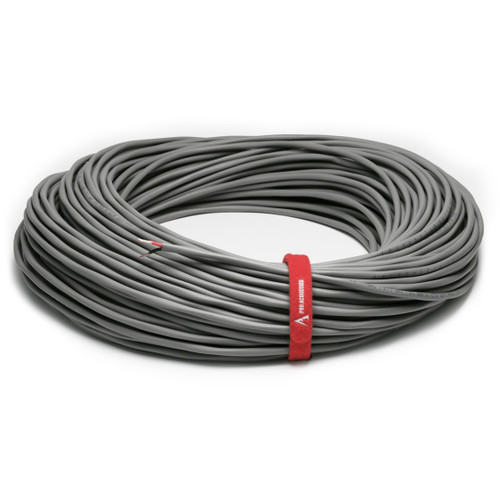

• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
