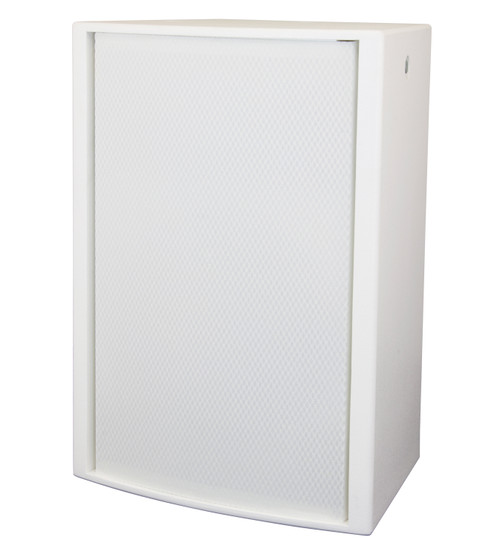

Peavey SSE 12 Sanctuary Series 12" 500W 2-Way Loudspeaker with Seven Flying Points - White

Peavey SSE 12 Sanctuary Series 12" 500W 2-Way Loudspeaker with Seven Flying Points - White

More Views

Peavey SSE 12 Sanctuary Series 12" 500W 2-Way Loudspeaker with Seven Flying Points - White

Part # 00575320

Model # SSE 12

The Peavey SSE 12 Sanctuary Series 12" loudspeaker is a two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with the diverse Sound Guard IV tweeter protection network and Peavey Scorpion Pro 1200+ 12" woofer with 2.5" (64 mm) voice coil for smooth response.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The SSE 12 Sanctuary Series 12 inch loudspeaker is a two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with the diverse Sound Guard IV tweeter protection network and Peavey Scorpion Pro 1200+ 12" woofer with 2.5" (64 mm) voice coil for smooth response. The SSE 12 is rated at 500 Watts program and 1,000 Watts peak. This lightweight speaker system is ideal for smaller venues where space is at a premium. Connections are made using a four-pin Neutrik Speakon or a paralleled two-position terminal block for additional cabinets. The SSE 12 also incorporates flying points on the top of the unit and mounting points on the bottom for utilizing the Peavey VersaMount70 mounting bracket. It is available in black and off-white finishes.

Features

Features

Two-way sound reinforcement enclosure
Peavey Scorpion Pro 1200+ 12" woofer with 2.5" (64 mm) voice coil
Peavey 14XT titanium diaphragm compression driver
Sound Guard IV tweeter protection network
Available in two finishes: black or off-white
Mounting point for VersaMount 70 bracket
13 mm birch plywood construction
500 Watts program/1000 Watts peak power handling
79 Hz to 17 kHz
98 dB at 1W/1m
Designed for permanent install
8 Ohms
Seven flying points (six 3/8" for suspension and one 1/4" for angle adjustment)

Specification

Product Type	12" 2 Way Loudspeaker
Frequency response	79 Hz to 17 kHz (±3 dB)
Usable low frequency limit (-10 dBpoint)	60 Hz
Power handling (Full range)	500 W program; 1,000 W peak
Sound pressure level	98 dB SPL (2.83 V input)
Maximum sound pressure level	122 dB SPL continuous; 128 dB SPL peak
Radiation Angle
500 Hz to 1.6 kHz	Horiz. 110° ± 15°;Vert. 120° ± 30°
1.6 kHz to 5 kHz	Horiz. 75° ± 15°; Vert. 70° ± 25°
5 kHz to 16 kHz	Horiz. 85° ± 15°; Vert. 40° ± 10°
Directivity factor, Q (Mean)	10.27 ± 6.07
Directivity index, Di (Mean)	9.38 dB ± 2.57 dB
Transducer Complement
Low Frequency Section	Peavey Scorpion® Pro 1200+ 12" woofer with 2.5" (64 mm) voice coil
High Frequency Section	Peavey 14XT™ titanium diaphragm compression driver on a 90° x 40°constant directivity horn
Box tuning frequency (Low frequency section)	74 Hz
Harmonic distortion	1% rated power
Second Harmonic
100 Hz	0.32%
1 kHz	0.10%
Third Harmonic
100 Hz	0.40%
1 kHz	0.22%
Harmonic distortion	10% rated power
Second Harmonic
100 Hz	0.56%
1 kHz	0.79%
Third Harmonic
100 Hz	0.79%
1 kHz	0.25%
Electro-acoustic crossover frequency (internal passive)	2.8 kHz
Impedance (Z) (Full range)	Nominal: 8 Ω, Minimum: 5.1 Ω
Input Connection	1 four-Pin Neutrik® Speakon® in parallel with one 1-position terminal strip
Dimensions (W x H x D)	27.75" (704.85 mm) x 16" (406.4 mm) x 20" (508 mm)
Weight Unpacked	39 lbs (17.69 kg)
Weight Packed	44 lbs (19.96 kg)
