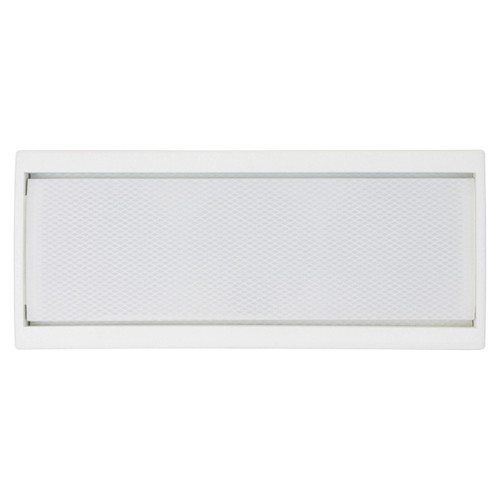

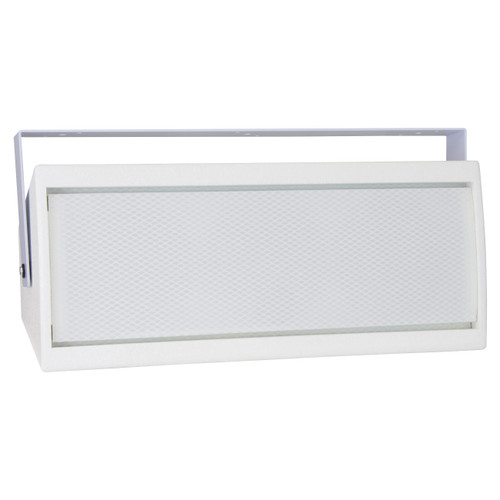

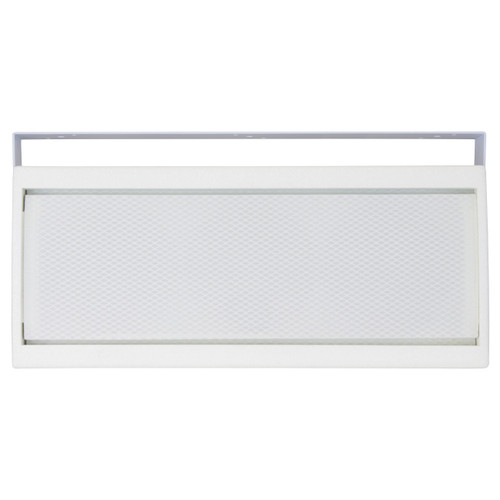

Peavey SSE 26 Sanctuary Series 6.5 inch 2 Way Speaker
Part # SSE 26
Model # SSE 26
The SSE 26 is a two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with a Sound Guard IV tweeter protection network and two maximum-performance 6.5" woofers.

Availability: In Stock and Ready to Ship!

* Required Fields

Pro Acoustics Price $479.99

Free Lifetime
Tech Support!

with Every Purchase Start Chatting
Description

Details

The new SSE enclosure series features high power ratings with custom components, a sleek look and a unique, snap-in metal grille. The SSE 26 is a two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with a Sound Guard IV tweeter protection network and two maximum-performance 6.5" woofers. It is rated at 300 Watts program and 600 Watts peak. This lightweight speaker system is ideal for smaller venues where space is at a premium. Connections include a four-pin Neutrik® Speakon® or a paralleled two position terminal block for additional cabinets. The SSE Series is available in black, white and natural finishes.

Features

Features

  • Two-way sound reinforcement enclosure
  • Designed for permanent installations
  • Two premium 6.5" woofers
  • Peavey 14XT titanium compression driver
  • Sound Guard IV tweeter protection network
  • Mounting point for VersaMount 35 bracket
Specification
General
Radiation angle measured at -6 dB point of polar response: 500 Hz to 1.6 kHz:
Horiz. 135° +/- 50°
Vert. 75° +/- 35°
1.6 kHz to 5 kHz:
Horiz. 110° +/- 70°
Vert. 125° +/- 90°
5 kHz to 16 kHz:
Horiz. 80° +/- 20°
Vert. 80° +/- 20°
Directivity factor, Q (Mean): 7.70 +/- 4.99
Directivity index, Di (Mean): 7.69 dB +/- 3.49 dB
Transducer complement: Low Frequency Section:
Two 6.5" premium Peavey woofers+
High frequency section: Peavey 14XT™ titanium compression driver on a 90° x 90° conical Horn
Box tuning frequency: Low Frequency Section: 100 Hz
Harmonic distortion: 1% rated power
Second Harmonic: 100 Hz: 0.09% 1 kHz: 0.09%
Third Harmonic: 100 Hz: 1.19% 1 kHz: 0.14%
10% rated power
Second Harmonic: 100 Hz: 0.34% 1 kHz: 0.37%
Third Harmonic: 100 Hz: 1.67% 1 kHz: 0.22%
Crossover frequency (internal passive): Low Frequency - High Frequency: 1.8 kHz
Impedance (Z): Full Range: Nominal: 8.0 Ω Minimum: 9.1 Ω
Physical
Input connections: One four-pin Neutrik® Speakon® in parallel with one two-position terminal strip
Enclosure materials & finish: Trapezoidal, dado-joined 13 mm birch finished with a textured acrylic polyurethane, with a full-length metal grille covered with acoustical-grade grille cloth
Dimensions (H x W x D): Front: 23.25" (591 mm) x 9.93" (252 mm) x 9.47" (240 mm)
Rear: 23.25" (591 mm) x 5.23" (133 mm) x 9.47" (240 mm)
Net weight: 28 lbs (12.7 kg)
