Public Address Sound System with 6 Bosch Horn Loudspeakers, Push-to-Talk Paging Microphone and Bluetooth Adapter
Part # PASS-6LBC348200PLE1ME240
Model # PASS-6LBC348200PLE1ME240

This public address paging sound system is ideal for both indoor and outdoor paging and announcement applications and provides excellent voice articulation in demanding applications such as large car dealerships, school campuses, industrial buildings or any large application that desires paging with the ability to do general music or play announcements from your Bluetooth device.

Availability: Usually arrives in 20-28 business days

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Public Address Paging Sound System with Bluetooth

This public address paging sound system is ideal for both indoor and outdoor paging applications and provides excellent speech reproduction in applications large car dealerships, school campuses, industrial buildings, recreational parks and more. The ability to use a paging system in a commercial application is an important aspect of many businesses and is very effective in making announcements, and with the Bluetooth adapter, you can play general music or announcements from any Bluetooth device.

This indoor-outdoor paging sound system includes six Bosch LBC 3482/00 70V horn loudspeakers, a Bosch PLE-1ME240 Plena 240W mixer amplifier, Bosch PLE-1CS Plena paging microphone, a Pure Resonance Audio BTR1 Bluetooth wireless audio receiver to complete your system.

Bosch LBC 3482/00 Horn Loudspeakers

Bosch high-efficiency horn loudspeakers provide excellent speech reproduction and sound distribution for a wide scope of outdoor applications. They are ideal for sports grounds, parks, exhibitions, factories and swimming pools. The LBC 3482/00 is a circular 25W horn loudspeaker, measuring 355 mm (14 in) in diameter. They are made from aluminum. The edges of the horns are covered with a PVC profile for protection against impact damage. They are light grey (RAL 7035) and are water and dust protected. The LBC 3482/00 is designed for use in voice alarm systems and is compliant with emergency standards. The horn loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. The horn loudspeaker has a ceramic terminal block, thermal fuse and heat resistant, high-temperature wiring. They have provision for inside mounting the optional line/loudspeaker supervision boards. The rear cover of the horn is made from self-extinguishing ABS (acc. to class UL 94 V0). The connection cable is fed out through a cable gland (PG 13.5) in rear cover. For loop through connection, the rear cover is fitted with a second hole (covered as standard supplied). These integrated horns are also available as separate horn and driver, allowing installing any combination of horn and driver.

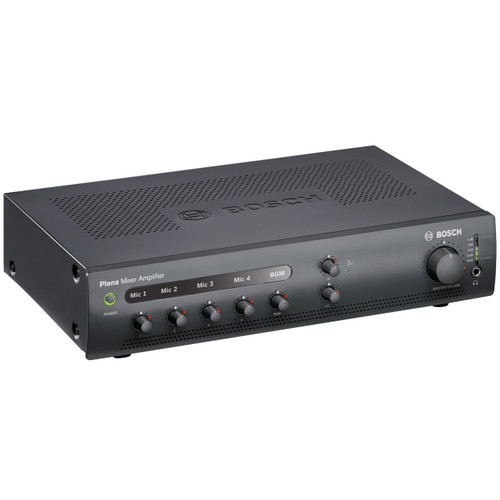

Bosch PLE-1ME240 Plena 240W Mixer Amplifier

The PLE-1ME240-US has an LED VU meter that monitors the master output. A headphone socket, below the VU meter, provides the mixer output. For total reliability and ease of use, a limiter is integrated into the output stage to restrict output if the user applies too much signal. The Plena mixer amplifiers are high performance, professional public address units with modern state of the art features. The Bosch PLE-1ME240-US Plena Mixer Amplifier is a compact, yet powerful 240 watt amplifier and 4-channel mixer for providing background music and public address audio for commercial use, in offices or at home. Overall, the PLE-1ME240-US mixer amplifiers are easy to use. They take the complexity away from the user and putting it where it belongs, inside the equipment; providing a crisp call or clear music is as easy as turning on the radio. Provide background music and public address audio in commercial applications, office spaces or at home.

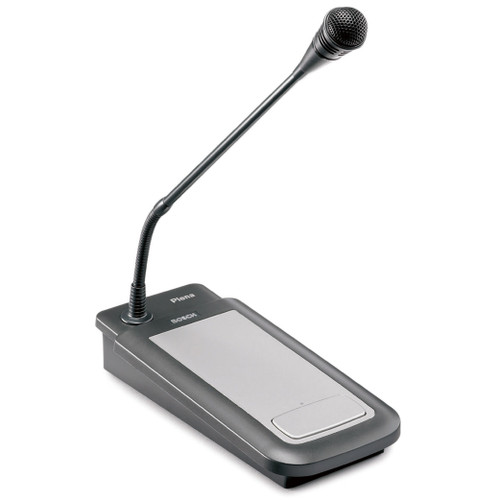

Bosch PLE-1CS Plena All-Call Call Station

The Plena tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted in desktops. The PTT-key (press-to-talk), not only switches on the microphone but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or toggle-mode (press to switch on, press again to switch off). It is equipped with a fixed, flexible 2 m cable and a 5‑pin Euro-style connector for the balanced signal and the priority contact. If the priority contact is not required, the microphone can be connected to amplifiers with 3‑pin Euro-style connector. A green LED indicates when the microphone is active.

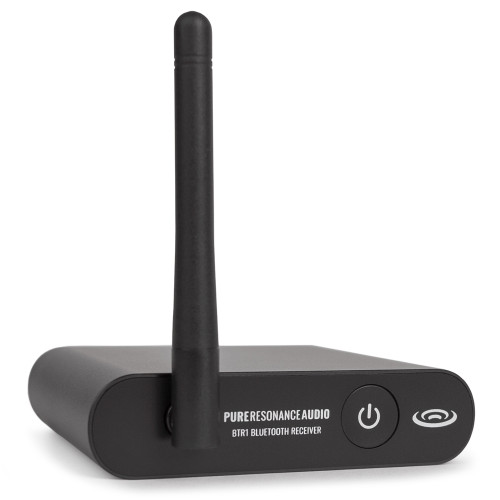

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver

The Pure Resonance Audio BTR1 Bluetooth wireless audio receiver streams high-fidelity audio to your commercial sound system from any Bluetooth-enabled device. The BTR1 provides superior high-resolution audio streaming with an extended wireless range of up to 100 feet. This Bluetooth stereo receiver is easy to set up, pairs quickly, remembers up to 8 devices, and automatically reconnects to the last paired device. With the latest Bluetooth technology and high-end audio streaming codecs, the BTR1 features an improved signal-to-noise ratio and reduced Bluetooth audio delay. This audio Bluetooth receiver delivers crystal clear, rich sound that retains a full dynamic range for the highest-quality listening experience.

Features

Features

Bosch LBC 3482/00 Horn Loudspeakers:

  • High-efficiency driver
  • Wide opening angle
  • Excellent speech reproduction
  • Simple power setting
  • Water and dust protected to IP 65
  • Versatile mounting bracket
  • Complies with international installation and safety regulations

Bosch PLE-1ME240 Plena 240W Mixer Amplifier:

  • 4 Mic / Line Inputs; 1 Music Source Input
  • 4 Ohm / 70V Operation
  • 2-Tone Chime
  • 240 Watt Output Power
  • Bass and Treble Controls

Bosch PLE-1CS Plena All-Call Call Station:

  • PTT-key for calls for activation
  • Momentary or toggle
  • Green LED, indicating microphone active
  • Stable metal base design with fixed 2 m cable and lockable Euro-style connector
  • Phantom powered by amplifier

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver:

  • Extended-Range - Stay connected and get ultimate wireless freedom and maximum flexibility with extended-range wireless streaming, delivering consistent performance for up to 100 feet (30 meters)
  • Quality Performance - Superior high-resolution audio streaming with 112 dB SNR and a frequency response of 10Hz - 20kHz for a clear, rich sound and full dynamic range with low background noise, low distortion, and no audio delay providing the highest-quality listening experience
  • High-End Technology - This true high-fidelity audio component applies the latest Bluetooth Version 5.0 technology with high-end Qualcomm® aptX™ HD, aptX™ LL, AAC, and SBC enhanced codecs and audiophile-grade 384kHz/32bit DAC, delivering superior high-resolution digital audio streaming
  • Discreet Design - Compact and lightweight at less than 1 lb and under 1" high, this small but tough aluminum enclosure can be placed on any flat surface or rack shelf, and the included self-adhesive bumpers will keep it in place
  • Flexible Streaming - With support for both RCA and optical digital inputs, easily add high-quality wireless capabilities to your sound system and stream any audio format directly from your smartphone, tablet, computer, or other Bluetooth-enabled devices
  • Easy Setup and Pairing - Simple, no hassle set up, pairs in seconds, and plays instantly without configuration, custom software, apps, or passwords. Remembers up to 8 devices and automatically reconnects to the last paired device when in range
System Includes

System Includes

  • (6) Bosch LBC 3482/00 Horn Loudspeakers
  • (1) Bosch PLE-1ME240 Plena 240W Mixer Amplifier
  • (1) Bosch PLE-1CS Plena All-Call Call Station
  • (1) Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
  • (1000') West Penn 225 16/2 Audio Speaker Wire
