Public Address Sound System with 3 Atlas Sound Wide Dispersion Reflex Sound Horns and Mixer Amplifier
Part # PASS-3CJ46AA240
Model # PASS-3CJ46AA240
Public Address Sound System for arenas and outdoor settings where vocal clarity and coverage are essential. Typical applications are football, baseball and soccer fields, race tracks and parking areas
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

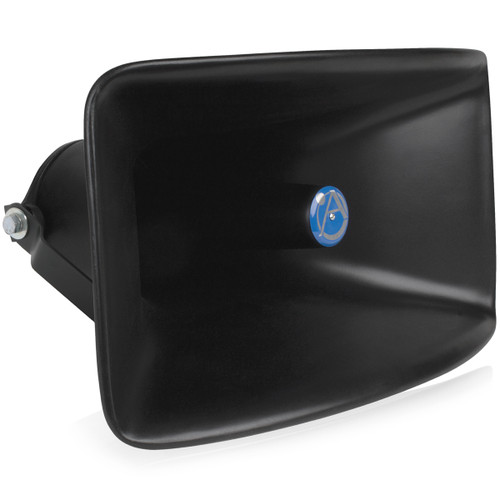

The all-purpose Model CJ-46 wide-angle sound projector screw mounts to Atlas Sound PD and SD Series compression drivers to provide maximum audio penetration through adverse ambient sound levels and coverage over long distances. For versatile mounting applications.

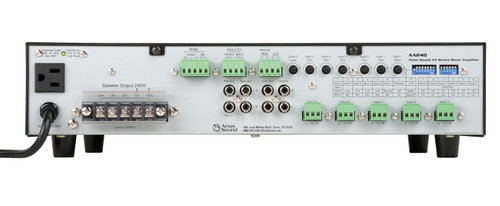

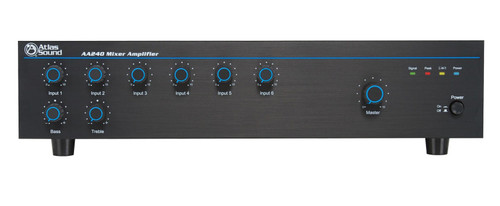

Atlas Sound AA240 amplifier is a powerful 240 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays.

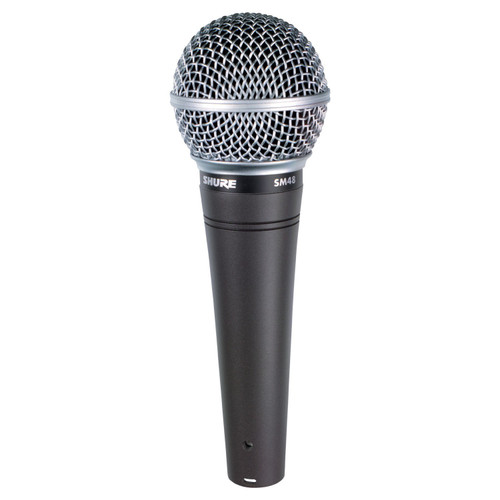

The SM48 unidirectional dynamic microphone is a great performance microphone. It maintains a true cardioid pattern throughout its frequency range, ensuring high gain before feedback and rejection of off-axis sound.

Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor  applications and is recommended for use in expansive and/or high ambient sound-level areas.
Features

Features

Atlas Sound CJ-46 Wide Dispertion Reflex Sound Horn Features:

  • Directional High-Efficiency Reflex Sound Projector with Wide Angle Dispersion
  • Environment-Resistant Construction for Outdoor/ Indoor Applications
  • Equipped with Standard 1 3/8"
  • 18 Male Threads for Use with Compression Driver Units
  • Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
  • Available in Black

Atlas Sound AA240 Mixer Amplifier Features:

  • Zone 1 output 240 Watts
  • Zone 2 output 1W@ 8Ω or 1.5V@ 600Ω
  • Inputs 1-5 mic/line switchable
  • Input 6 line level only
  • Input 1 has VOX send
  • Inputs 2-6 have switch selectable mute receive
  • 2 Tape and 2 Line outputs
  • Remote VCA selectable INPUT 6 or MASTER
  • Switch selectable bridge in/out bus allows amplifier combining
  • Pre amp out-Power amp in loop

Shure SM48S Vocal Microphone Features:

  • Cardioid pickup pattern rejects off-axis sound and provides superior gain before feedback
  • Frequency response tailored for vocals, with brightened mid-range and bass rolloff to control proximity effect
  • Shock-mounted cartridge for exceptional ruggedness and reduced handling noise
  • Built-in "pop" filter that reduces explosive breath sounds and wind noise
  • Supplied stand adapter and carrying/storage bag
  • Lockable On/Off switch
  • Legendary Shure quality and ruggedness

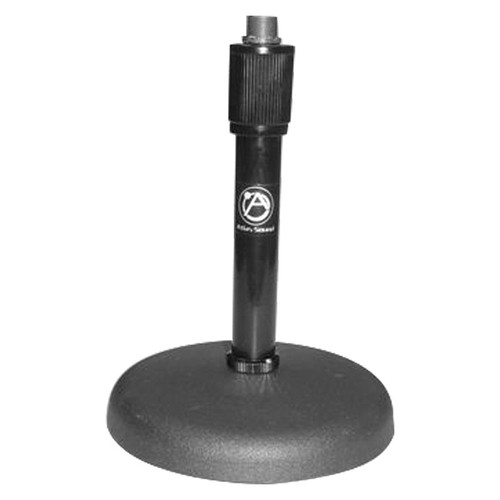

Atlas Sound DS 7E Desktop Mic Stand Features:

  • Adjustable Height Desktop Mic Stand 8-13" Ebony Finish
  • Quality Construction Assures Extended Service and Quality Appearance
  • Versatile Stands Fulfill Functional and Aesthetic Miking Requirements for Microphone Placement
  • Weighted Bases Provide Maximum Stability

Atlas Sound PD-75T Compression Driver Features:

  • Outstanding Sound Reproduction and Power Handling For Signaling, Music, and Public Address Systems
  • Extended Frequency Response Range For Optimum Intelligibility
  • 75 Watt Power Rating
  • Environment-Resistant Construction For Indoor/Outdoor Use
  • Offered with Transformer and 16Ω Tap
System Includes

System Includes

  • (3) Atlas Sound CJ-46 Wide Dispersion Reflex Sound Horn
  • (1) Atlas Sound AA240 Mixer Amplifier
  • (1) Shure SM48S Vocal Microphone
  • (1) Atlas Sound DS 7E Desktop Mic Stand
  • (3) Atlas Sound PD-75T Compression Driver
  • (50 Feet) West Penn 224 Wire Audio Speaker Cable
  • (1) CBI MLN-15 Prep
