- Description
Details

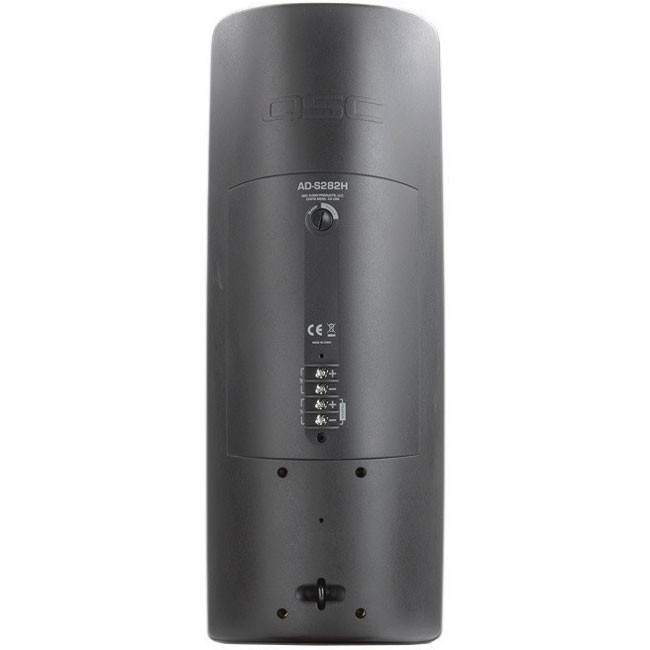

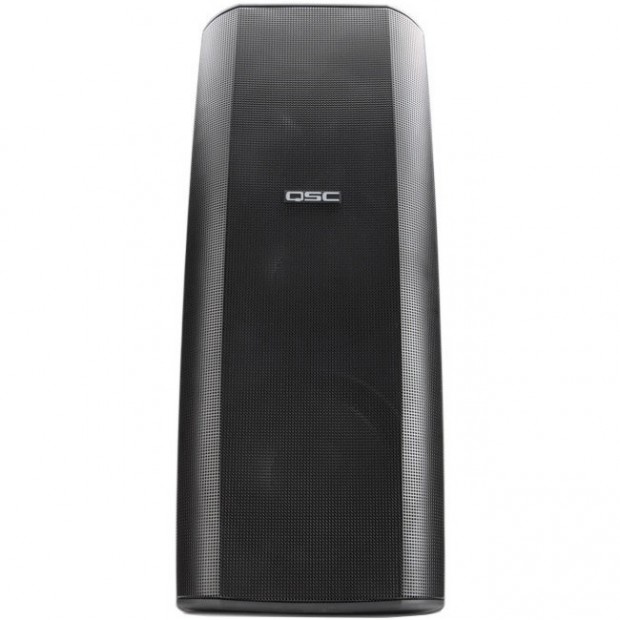

The QSC AD-S282H loudspeaker incorporates the Advanced Directivity rotatable waveguide. Available in black or white, these weather resistant enclosures can be painted to match any specific decor.
The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.
- Features
Features
- Contemporary style, weather-resistant enclosure and components - ideal for a wide range of applications
- Dual 8-inch, 2-way system - in a lightweight, multipurpose enclosure featuring a heavy duty, powder coated aluminum grill
- Versatile mounting options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is built in
- Advanced Directivity™ rotatable waveguide - (90° × 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation
- Low impedance and transformer versions - Standard 8 ohm system is selectable for passive or bi-amp operation while the AD-S282HT transformer version provides taps for both 70V and 100V distributed system use
- Specification
Frequency Response 80 Hz - 27.7 kHz Power Capacity 450W RMS (8 hours IEC) Nominal Sensitivity 93 dB Impedance 8 ohms (5.25 ohms minimum, 17.6 kHz, 64.22 ohms maximum, 2.56 kHz) Low Frequency Driver 8" High Frequency Driver 1" Exit Compression HF Driver Enclosure Material Injection Molded Polystyrene with Aluminum Grille Input Connections Barrier Strip (switchable: passive/active on AD-S282H) Dimensions (H x W x D) 10.21" (256 mm) x 26.17" (685 mm) x 11.44" (290 mm) Weight 27.7 lbs (12.6 kg) Shipping Weight 35.6 lbs (16.1 kg) - Documents
